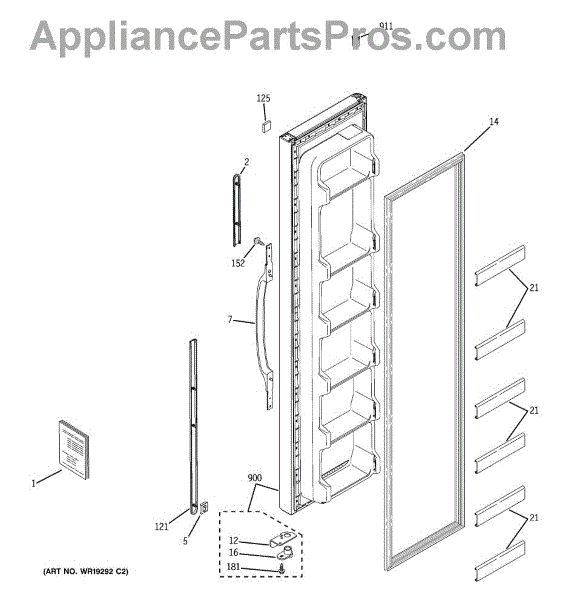

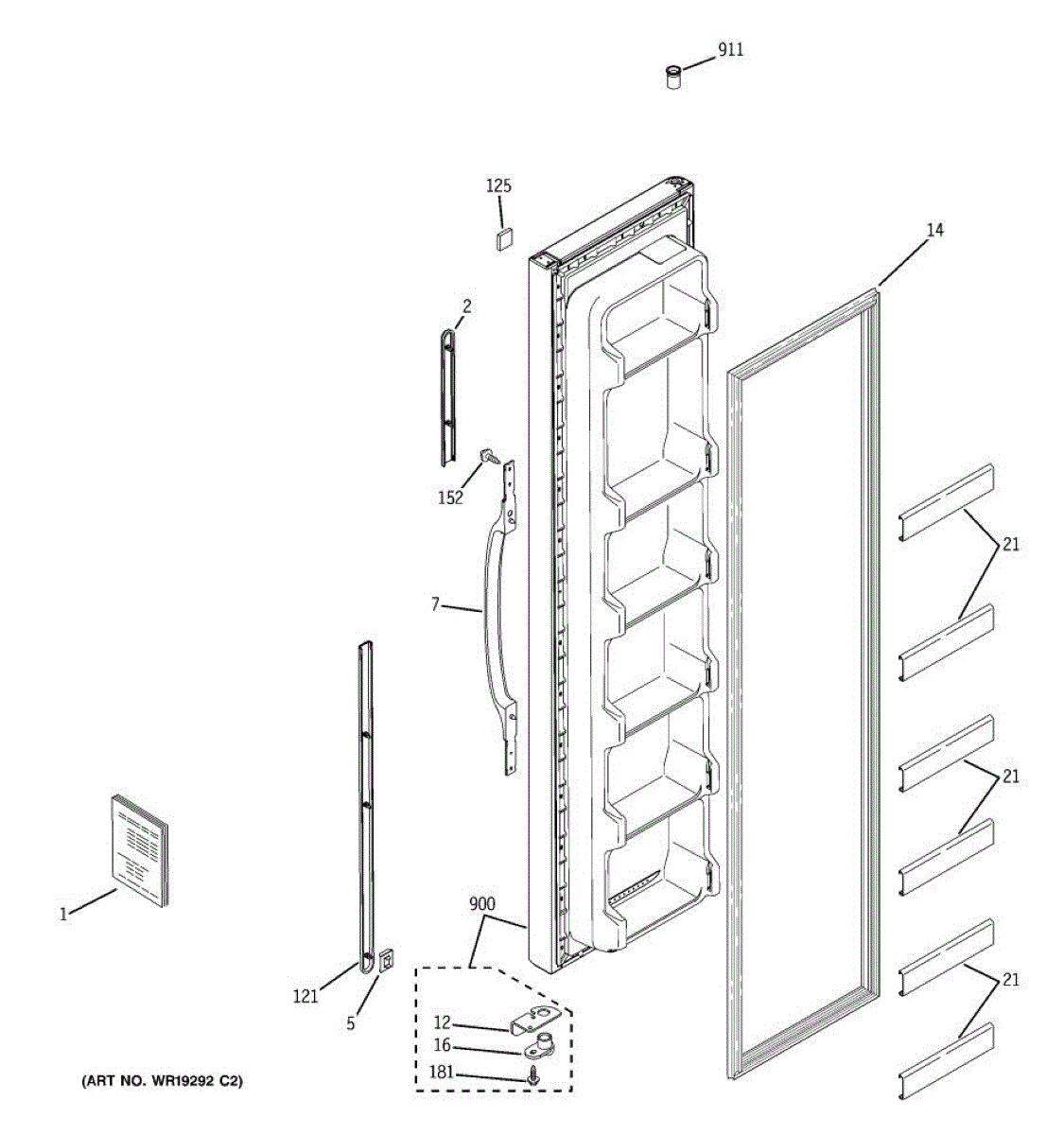

Parts for Ge GST20DBPHCC: 01 - Freezer Door Parts

This dart clip is a small plastic retainer that secures wiring, tubing or trim inside your appliance to prevent rubbing and movement. It helps keep internal components in the correct position for reliable operation and reduced vibration. What it does:

• Secures wiring, harnesses or small tubing to chassis or panels to prevent abrasion
• Keeps trim and lightweight panels held in place to reduce rattling and noise
• Prevents loose components that can interfere with moving parts
• Common symptom of a failed clip: loose wires, rubbing noises or panels that don't stay aligned

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing panels or trim; keep fasteners organized for reassembly
• Replace only the damaged clips; push-fit design usually snaps into place by hand or with pliers
• If routing or securing wiring, ensure wires are not pinched and have proper clearance from moving or hot parts

This replacement freezer door gasket creates a secure, flexible seal around the freezer door to help keep cold air in and warm air out, restoring proper door closure and helping the freezer maintain consistent temperature. What it does:

• Forms an airtight seal around the freezer door to reduce air leaks.
• Helps prevent frost and ice buildup inside the freezer.
• Restores proper door closure so the freezer maintains temperature more reliably.
• Reduces excess compressor cycling associated with a worn or damaged seal.

• Disconnect power or turn the appliance off before starting to avoid electrical hazards.
• Remove the old gasket and clean the door flange and mounting channel before installing the new seal.
• Press the new gasket fully into the channel, working around the door to ensure even seating and full contact.
• If the gasket feels stiff, follow OEM guidance or warm it gently to help it flex; avoid high heat that can damage the seal.

This is the front rail for a freezer door shelf. It replaces a cracked or missing retainer so items stay securely on the door, restoring usable storage and helping prevent jars and packages from sliding out.

• Serves as the front retaining rail for a freezer door shelf/bin
• Holds items in place during door opening and closing
• Restores function when the original rail is cracked, broken, warped, or missing
• Typical symptoms: items falling from the door, loose/wobbly rail, visible damage

• Disconnect power and remove items from the affected door shelf
• Lift out the damaged rail and clean the mounting area
• Align the new rail with the door's tabs/slots and press until it seats evenly and locks in place
• Reload items and confirm the rail is secure

Color: Bisque

This is a screw intended for use in refrigerators, specifically as the top mounting screw for the handle. If the screw in the handle is missing, stripped, or otherwise not performing its function, a replacement screw should be ordered.A visual inspection will determine if a screw is missing. If the door handle is loose or falling off from the top, it is a sign that a replacement screw is required. This repair is a quick and easy process. It involves the use of a screwdriver. Remove the old screw if there is one in place. Line up the holes on the door and the door handle component before twisting the new screw into position. Wear gloves to protect hands during the repair.This screw is a genuine OEM replacement part. It is sourced directly from the manufacturer. The screw is sold individually. The screw is compatible with several different models of refrigerators. It can be installed in ranges made by Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

10-32 F HXW 3/4 S

This kit is required when replacing the freezer door. For the freezer door order by model number.

This top-closed thimble is a small protective plug that presses into a cabinet opening to cap and finish the hole, helping prevent abrasion and limiting air or moisture leaks for reliable appliance performance.

• Caps and seals an unused hole/opening in the liner or cabinet
• Shields edges to help protect nearby wiring or tubing from chafing
• Helps reduce drafts and moisture migration that can contribute to frost, condensation, or temperature swings
• Replace if cracked, brittle, loose, missing, or if you notice gaps or rubbing noises

• Disconnect power; if applicable, turn off the water supply
• Access the opening, remove the old thimble/plug, and clean the area
• Align and press the new thimble into the hole until fully seated and flush; avoid pinching wires or tubing
• Restore power/water and verify a snug fit
