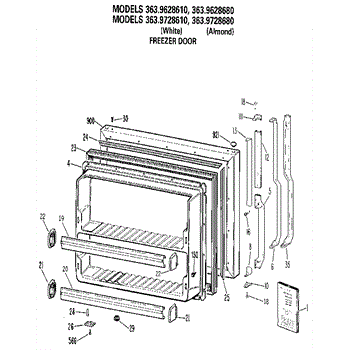

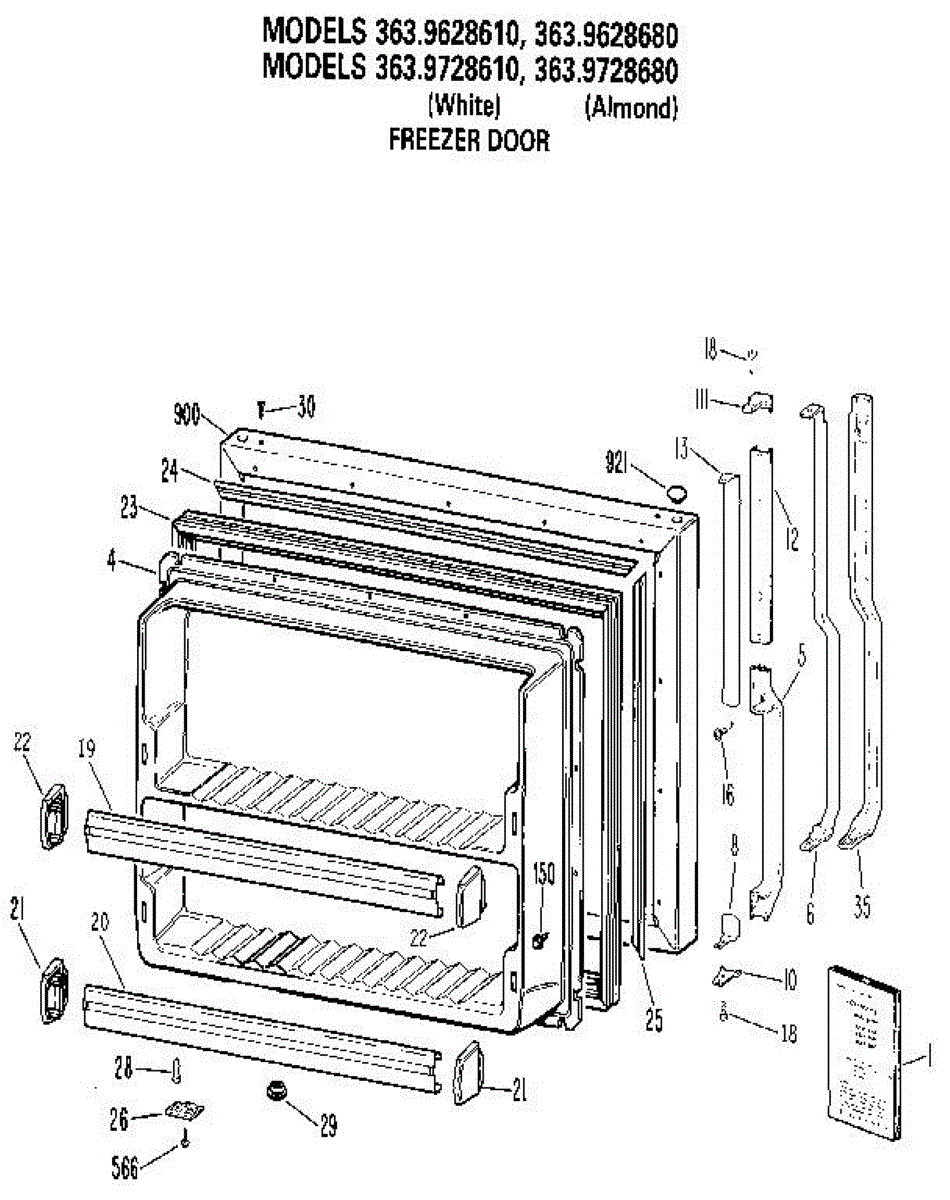

Parts for Kenmore 363.9728680 (3639728680, 363 9728680): Freezer Door Parts

This printed user manual provides essential operating instructions, safety guidance, and basic troubleshooting to help you use and maintain your appliance correctly. Clear step-by-step guidance reduces user error and supports routine care. What it does:

• Explains control panel functions, cycle settings, and normal operation
• Lists safety warnings and recommended precautions to prevent accidents
• Covers routine cleaning and care to help preserve performance
• Includes basic troubleshooting tips for common user-facing issues

• No tools required; store manual in a dry, accessible place near the appliance
• Keep manual away from heat and moisture to prevent damage
• Use the manual for user-level troubleshooting only; do not attempt repairs beyond the scope described

This replacement door shelf bin restores storage on the refrigerator door so you can organize bottles and small items. Durable molded plastic matches OEM fit to keep items secure and accessible. What it does:

• Replaces a cracked, chipped, or broken door shelf bin to restore door storage
• Secures bottles, condiments, and small containers so they don't fall when the door opens
• Prevents leaks and spills from spreading to other fridge surfaces
• Helps maintain proper organization and usable door space

• Remove food and empty the door before starting; handle the bin carefully to avoid damage
• Typically installs by snapping into the existing door supports; no special tools required
• Inspect door brackets and mounting tabs for wear; replace if broken to ensure a secure fit

Refrigerator and freezer door bar end cap. Used on both the right and left hand side. Color: white. Measures about 2-1/2 inches high by 3 inches deep.

The Gasket for the freezer is an OEM part for GE refrigerators. It creates a seal around the freezer door, preventing warm air from entering and cold air from escaping. This seal is crucial for maintaining the correct internal temperature, ensuring the freezer operates efficiently and food stays properly frozen. The gasket measures 19 1/2 inches wide by 28 inches tall.

Causes of a bad gasket can include wear and tear over time, exposure to extreme temperatures, or damage from frequent opening and closing of the freezer door. Accumulated dirt and grime can also affect the gasket's sealing ability.

Symptoms of a bad gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently or continuously
• Higher than normal energy bills
• Warm spots inside the freezer
• The door not closing properly or a visible gap between the door and the frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

This trim cap is a small plastic end cap that restores a clean finished edge on appliance trim and handles. It improves appearance and helps cover exposed fasteners or damaged edges for a neater look. What it does:

• Covers and protects exposed trim edges and screw openings to finish the appearance
• Helps prevent dirt and moisture from entering gaps behind trim pieces
• Replaces cracked, chipped, or missing end caps that make trim look worn
• Snaps into place on compatible trim or handle ends for a secure fit

• Disconnect power to the appliance before attempting any repairs
• Usually pushes or snaps into place; a flat tool may help to remove the old cap
• Inspect mating trim for damage before reinstallation; replace damaged trim if needed

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.
