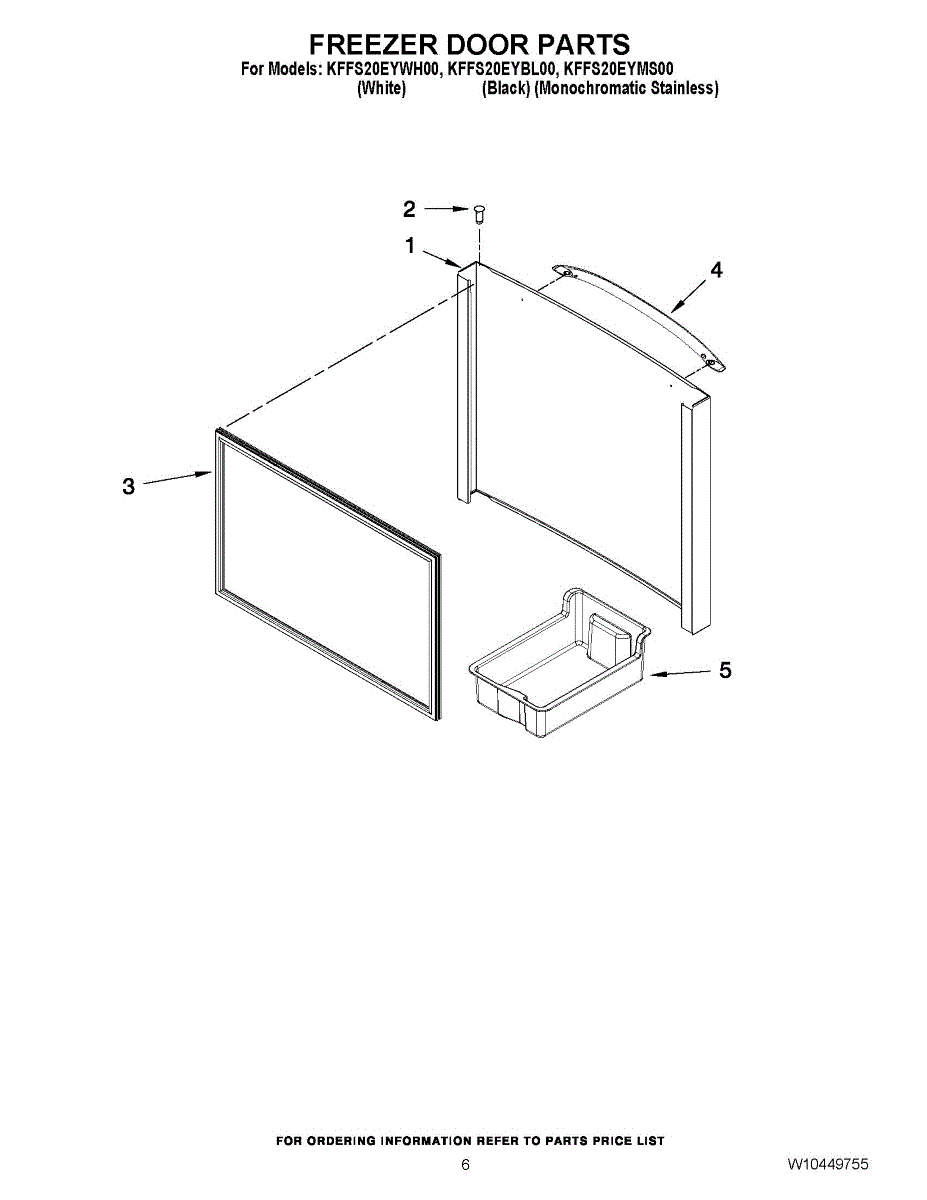

Parts for Kitchenaid KFFS20EYBL00: 04 - Freezer Door Parts

Color: Black

Color: Black

The Gasket is an OEM part for Whirlpool refrigerator doors.

Causes of a bad gasket can include normal wear and tear over several years of regular door openings and closings. Damage is also possible if the hinge has been over-tightened during reinstallation.

Symptoms of a bad door gasket include:

• Cold air leaking from around the door seal
• Fogging inside the fridge compartment or on packages
• Increased humidity levels inside
• Higher energy costs due to inefficient insulation

Potential underlying issues may include loose or stripped screws at the hinge mounting points.

This essential Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

The Door Gasket is an OEM part for Whirlpool refrigerators. It forms an insulating perimeter around the freezer door opening to prevent warm air from entering during use.

Causes of a faulty door gasket include breakdown of sealing materials over time, cracks or loose edges that compromise effectiveness.

Symptoms of a bad freezer gasket are:

• Frost or ice buildup around the door seal
• Visible gaps allowing warm, moist air inside
• Inefficient cooling requiring excessive energy use
• Higher electric bills from poor insulation

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

The Gasket-FIP (STL) is an OEM part for Whirlpool side-by-side refrigerators. This gasket fits around the fresh food evaporator inlet pipe inside the refrigerator. Its purpose is to form an airtight seal to prevent air leaks and increase efficiency.

Symptoms of a bad gasket include:

• Higher than normal energy usage
• Formation of frost or ice buildup in unexpected areas
• Temperature fluctuations inside the refrigerator or freezer compartments
• Strange odors coming from the refrigerator

Causes of a bad gasket can be wear and tear over time, cracks or tears in the sealing material, or improper installation that does not allow for a tight seal.

This OEM Whirlpool replacement part is also compatible with Maytag, Jenn-Air, Amana, and some Kenmore models.

Color: White

Color: Black

Color: Stainless

This ice storage bin holds the ice made by your refrigerator's icemaker and keeps it contained and easy to access in the freezer. Replace a cracked or warped bin to prevent spills, jams, and poor seating.

• Collects and stores ice cubes produced by the icemaker
• Keeps cubes contained to minimize spills and stray frost
• Slides/seats on the designated rails or shelf area in the freezer
• Common signs of failure: cracks, broken tabs, bin won't seat or slides out, ice falling into the freezer

• Unplug the refrigerator or disconnect power; switch the icemaker off
• Pull the old bin straight out; empty and clean the area
• Slide the new bin in until fully seated; restore power and turn the icemaker back on

This headless, cup-point set screw secures a component to a shaft or hub inside your appliance. The 1/4-28 x 3/8 in size bites into the mating surface to prevent slipping, helping keep collars, pulleys, or knobs aligned and stable.

• Locks a hub, collar, or pulley to a shaft to prevent movement
• Helps maintain alignment and reduce wobble or vibration
• Replaces missing, stripped, or damaged set screws
• Common signs include components slipping on a shaft, rattling noises, or recurring loosening

• Disconnect power before servicing
• Clean threads and align with any flat on the shaft before tightening
• Start threads by hand to avoid cross-threading; tighten securely without overtightening
• Recheck tightness after a brief test run

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
