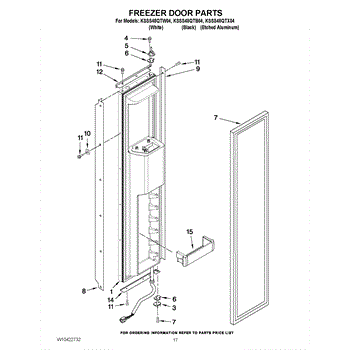

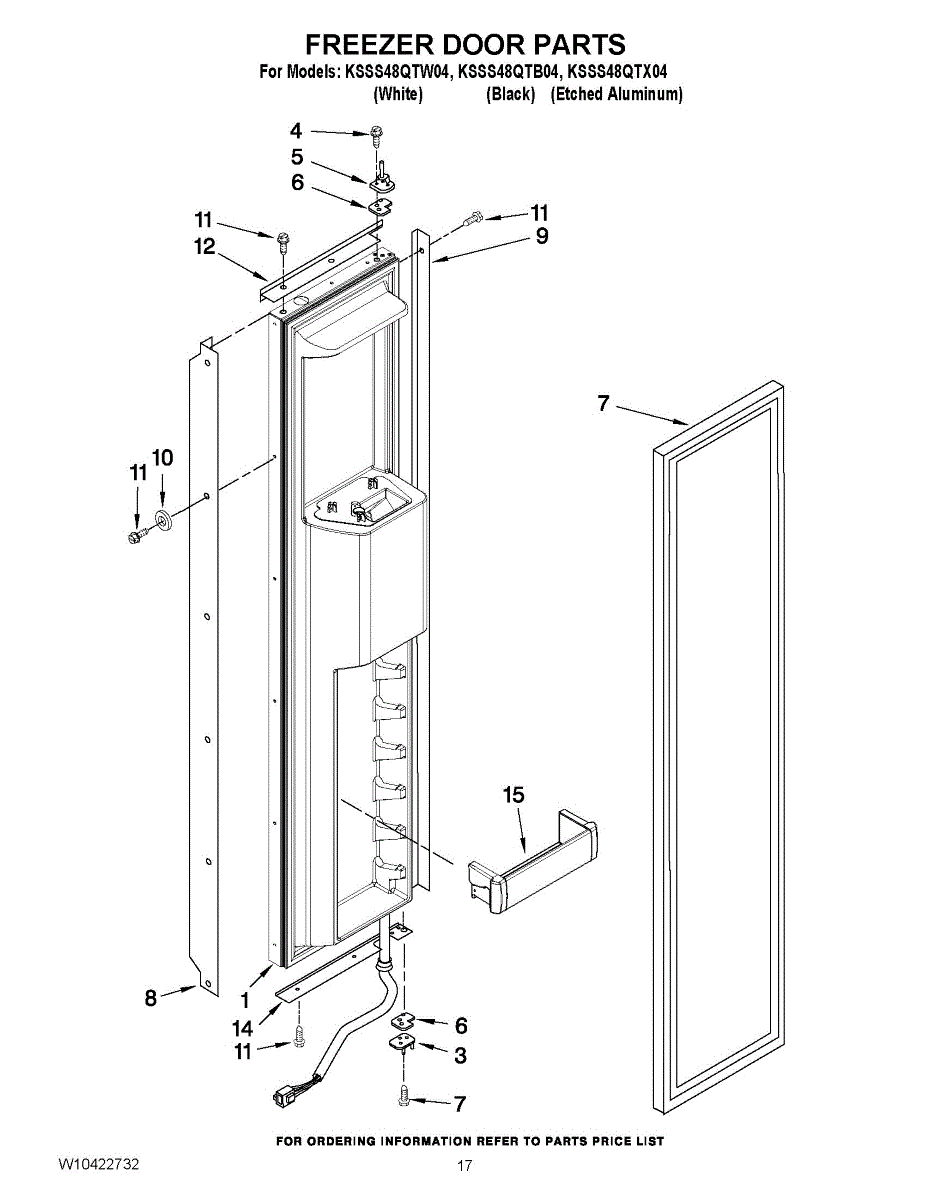

Parts for Kitchenaid KSSS48QTX04: 11 - Freezer Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This door hinge secures and guides a refrigerator door so it opens and closes smoothly, restoring proper door alignment and a tight seal. It's a direct-fit replacement when a worn or damaged hinge causes sagging or misalignment. What it does:

• Supports the refrigerator door and provides a pivot point for smooth opening and closing
• Restores proper door alignment and helps maintain an even door seal
• Reduces sagging, rubbing, or uneven gaps that prevent full closure
• Stops squeaks and sticking caused by worn hinge surfaces

• One door hinge

• Always unplug the appliance or shut off power to the unit before starting any repair
• Remove food and secure the door; have a helper support the door during removal and installation
• Use common hand tools; keep screws and mounting hardware organized for reassembly
• Check door alignment and adjust as needed after installation; replace any worn mounting hardware if present

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This leaf hinge assembly service kit replaces a worn or damaged door hinge leaf to restore proper door alignment and smooth opening. It's a direct-fit repair designed to correct hinge play and reduce sagging. What it does:

• Replaces the hinge leaf that supports and guides the appliance door
• Restores correct door alignment and prevents rubbing or uneven gaps
• Reduces door sag and helps maintain a proper seal
• Addresses symptoms like noisy or binding door movement and visible hinge wear

• Disconnect power and remove contents from the door before starting any repair
• Support or prop the door securely to prevent dropping when removing the old hinge
• Use basic hand tools; follow the appliance's service instructions for hinge removal and reassembly

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

This magnetic refrigerator door gasket forms the airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores a tight seal for stable temperatures and reliable performance.

• Creates a magnetized, airtight seal around the door perimeter to prevent air leaks
• Helps maintain set temperatures and reduce condensation or frost around the door
• Supports consistent cooling and overall efficiency
• Common symptoms of failure: gaps or warping, torn corners, door not closing securely, moisture or frost at the door edge

• Disconnect power before servicing
• Allow the gasket to warm and relax; use warm water or a hair dryer on low to soften—do not overheat
• Remove the old gasket from the retainer and press the new gasket in, starting at the corners and seating evenly around the perimeter
• Check door alignment and retighten/adjust hinges as needed; verify seal with a paper slip test

Color: White

Color: Stainless Steel

Color: Black

Color: Black

Color: Brushed aluminum

Color: Brushed aluminum

Color: White

Color: Black

Color: White

Color: Black

Color: Stainless Steel

This shallow freezer door bin mounts on the inner door and restores organized storage for smaller items. Replace a cracked, loose, or missing bin to keep packages secure and easy to access.

• Creates a dedicated shelf on the freezer door for boxed or bagged foods
• Replaces bins with cracked plastic, broken locking tabs, or discoloration
• Helps prevent items from falling when the door opens and closes
• Restores a secure fit if the original bin won't seat or keeps popping off

• Empty and remove the old bin by lifting up to release it, then pulling out
• Align the new bin with the door liner slots and press down until fully seated
• Handle plastic carefully; install at room temperature to reduce risk of cracking
• No tools typically required; match position and orientation to the original bin
