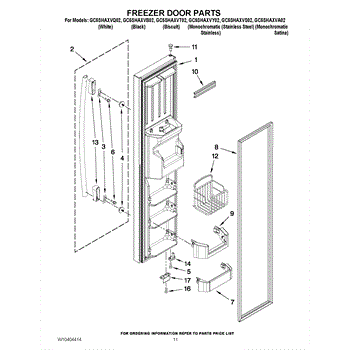

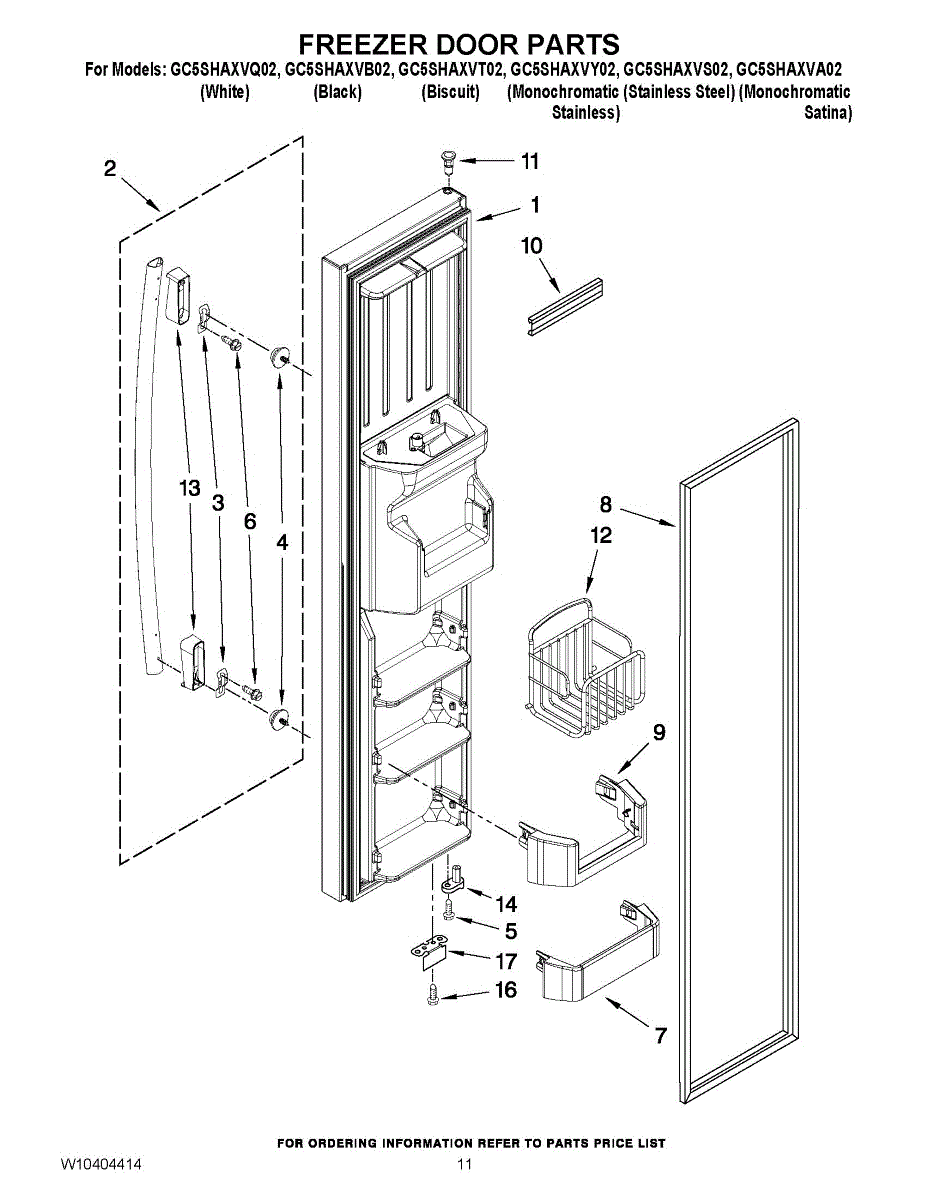

Parts for Whirlpool GC5SHAXVB02: 07 - Freezer Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This is a replacement door handle designed to restore a secure grip and normal door operation while improving the appliance's appearance. It fits the original mounting points for a direct swap with the factory piece. What it does:

• Provides a stable grip for opening and closing the appliance door
• Replaces cracked, broken, or loose handles that interfere with door use
• Restores the original look and alignment of the door front
• Helps prevent damage from using makeshift grips or excessive force

• Disconnect power or unplug the appliance before starting any repair
• Remove any trim or fasteners covering the handle mounting screws to access hardware
• Use common hand tools (screwdriver, nut driver) and avoid overtightening fasteners

Replace a cracked or loose door handle and restore a secure, comfortable grip for opening and closing the appliance door. This direct replacement helps bring back smooth operation and a clean, factory look. What it does:

• Provides the gripping surface to open and close the door
• Restores safe handling when the original handle is cracked or loose
• Helps maintain proper door operation and appearance
• Common symptoms: broken or missing handle, wobbling/loose handle, difficulty opening the door, cosmetic damage

• 1 door handle

• Disconnect power to the appliance before servicing
• Access and remove the handle's mounting screws (often from the inner door panel or under trim)
• Transfer any spacers/end caps/screws from the old handle as required for your model
• Tighten mounting screws securely but do not overtighten; verify door alignment and operation

This mid-length handle replaces a damaged or missing pull on compatible Whirlpool-built units, restoring a secure, comfortable grip and the original look so your door or drawer opens smoothly and stays aligned with adjacent handles.

• Provides the handhold needed to open and close the appliance door or drawer
• Replaces broken, cracked, loose, or missing handles to restore function and appearance
• Helps correct wobble or misalignment caused by a fatigued handle
• Typical symptoms: difficulty opening, handle spins or falls off, visible cracks or scuffs

• Disconnect power and your model's parts diagram for the correct handle location and hardware layout
• Protect the finish with painter's tape; align the handle and start both fasteners before tightening
• Use the proper driver (Allen/hex or Torx as required) and hand-tighten—do not overtighten
• Transfer any reusable mounting hardware from the original handle per your model's instructions

This replacement handle clip secures a cabinet or door handle to the appliance, restoring a firm fit and preventing a loose or sagging handle. Simple part that helps the handle stay aligned and usable. What it does:

• Secures the appliance handle to the door/frame so the handle stays fixed during normal use.
• Replaces a broken, cracked or missing clip that lets the handle wobble or detach.
• Stops symptoms like a loose, wobbly or slipping handle and restores proper handle alignment.
• Small plastic/metal retainer designed to snap into the handle or door bracket.

• Disconnect power or unplug the appliance before starting any repair to avoid injury.
• Remove the old clip by releasing the handle and prying the clip out with a flat screwdriver or needle-nose pliers.
• Press the new clip into the handle or bracket until it snaps into place; verify the handle is secure and aligned.

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

This trivet shelf is the shelf insert that adds a usable storage level inside the compartment. Replace a missing or damaged shelf to restore organization and keep items off the liner surface for better use of space.

• Provides stable support for food packages and containers
• Rests on existing side supports or brackets inside the compartment
• Replace when the original shelf is missing, bent, broken, or won't sit level
• Restores the intended storage layout and airflow

• Clear the area by removing or shifting nearby items
• Align the shelf with the side supports and seat both sides fully before loading
• Wear gloves and avoid forcing the shelf into place
• Confirm the shelf sits level and is secure before use

This FIP gasket forms a tight seal between refrigerator components, blocking air and moisture leaks. Replacing a worn or damaged gasket helps maintain stable temperatures, reduce frost/condensation, and restore efficient cooling performance.

• Creates an air- and moisture-tight seal between mating panels, liners, or ducts
• Helps maintain proper airflow and temperature balance inside the refrigerator
• Replaces a torn, compressed, or missing seal to restore proper sealing

• Disconnect power; if working near water lines, turn off the water supply
• Remove the old gasket and clean mating surfaces of residue or debris
• Align the new gasket to match the original orientation; seat fully into the groove or under clips/fasteners as designed
• Reassemble and check for uniform contact to ensure a complete seal

The Door Shelf Retaining Bar is an OEM component for Whirlpool refrigerators. It is a horizontal metal rod located within the refrigerator door that secures glass shelf panels in place during opening and closing. Maintaining structural integrity prevents accidental shelf removal or breakage.

Symptoms of a damaged retaining bar may include:

• Shelves that suddenly fall or slide out of position while accessing contents
• Gaps or spaces where shelves are unable to fully lock into place along guides
• Noisy rattling or clanking sounds emanating from loose shelving inside the door

Causes generally relate to standard wear over extended use. Repeated door movements may gradually weaken connecting joints, sockets, and bends within the thin metal bar material over time.

Compatible brands are KitchenAid, Jenn-Air, and some Kenmore refrigerator models too.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cam door restores proper door alignment and latching by replacing a worn or broken door cam. It helps the appliance door engage smoothly so the appliance seals and operates as intended. What it does:

• Replaces a worn or cracked door cam that guides the door into the latch
• Restores proper door alignment to prevent sagging or uneven closing
• Helps the door latch securely so the appliance can run without door-related interruptions
• Reduces clicking or scraping noises caused by a damaged cam

• One cam door

• Disconnect power (and gas if applicable) before starting any repair
• Remove the door or access panel as needed to reach the cam per your model's service instructions
• Inspect surrounding hinge and latch components; replace if damaged to ensure proper function

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
