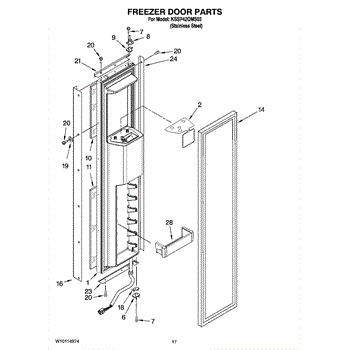

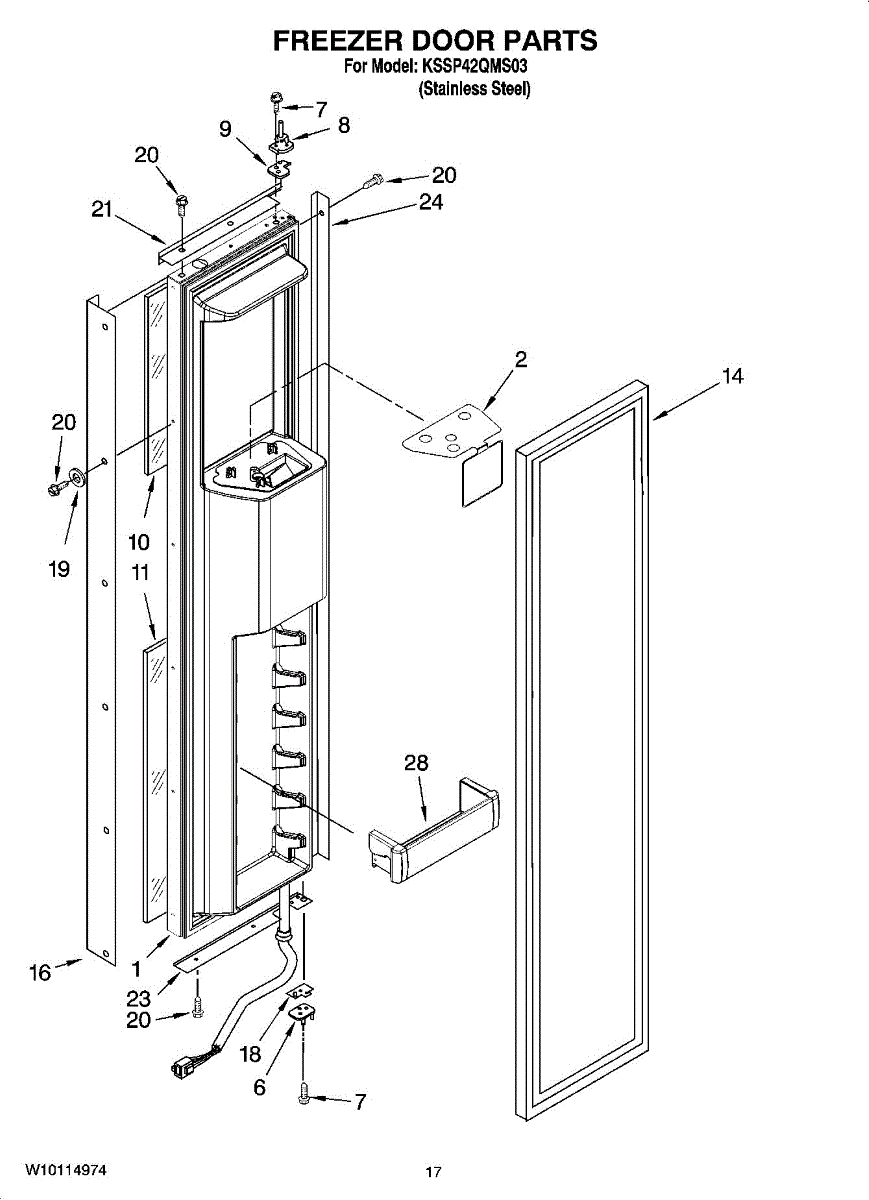

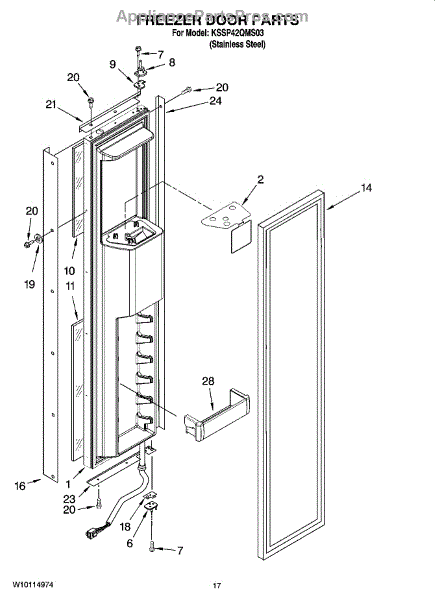

Parts for Kitchenaid KSSP42QMS03: 11 - Freezer Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This door hinge secures and guides a refrigerator door so it opens and closes smoothly, restoring proper door alignment and a tight seal. It's a direct-fit replacement when a worn or damaged hinge causes sagging or misalignment. What it does:

• Supports the refrigerator door and provides a pivot point for smooth opening and closing
• Restores proper door alignment and helps maintain an even door seal
• Reduces sagging, rubbing, or uneven gaps that prevent full closure
• Stops squeaks and sticking caused by worn hinge surfaces

• One door hinge

• Always unplug the appliance or shut off power to the unit before starting any repair
• Remove food and secure the door; have a helper support the door during removal and installation
• Use common hand tools; keep screws and mounting hardware organized for reassembly
• Check door alignment and adjust as needed after installation; replace any worn mounting hardware if present

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This leaf hinge assembly service kit replaces a worn or damaged door hinge leaf to restore proper door alignment and smooth opening. It's a direct-fit repair designed to correct hinge play and reduce sagging. What it does:

• Replaces the hinge leaf that supports and guides the appliance door
• Restores correct door alignment and prevents rubbing or uneven gaps
• Reduces door sag and helps maintain a proper seal
• Addresses symptoms like noisy or binding door movement and visible hinge wear

• Disconnect power and remove contents from the door before starting any repair
• Support or prop the door securely to prevent dropping when removing the old hinge
• Use basic hand tools; follow the appliance's service instructions for hinge removal and reassembly

This is a Whirlpool freezer gasket.If the freezer is having difficulties staying at temperature and the old gasket is damaged or off track, replacing the gasket could fix the problems. A faulty gasket could also lead to higher levels of ice and frost build up in the freezer. This could potentially raise an energy bill because it causes the freezer to stay engaged longer. Higher levels of frost build up could ultimately damage other components. Pull the old gasket out before installing the new one. It doesn't matter if the old part gets snagged or torn when it's taken out since a replacement is ready. Be sure not to break any of the fastening clips around the edge of the freezer. Slowly insert the gasket around the outer edges of the freezer lid, inserting the lip of the gasket into the cut out areas. Make sure the gasket is held tightly in place before shutting the freezer lid.This part is sourced directly from the manufacturer as a genuine OEM replacement part. This gasket is only available individually and is not included with any other parts or the original appliance. This product is compatible with Whirlpool brand freezers.

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Brushed aluminum

Bin control lever that secures the refrigerator door shelf bin to the door, allowing the bin to lock in place and release for removal. Replacing a broken lever restores proper bin retention and prevents the bin from falling or shifting. What it does:

• Secures the door shelf bin so it stays seated during normal use.
• Releases the bin for easy removal when you need to clean or reconfigure shelves.
• Common symptoms: bin won't stay in place, bin drops when door is opened, visible broken or cracked lever.
• Works with the door bin latch mechanism to maintain stable storage on the door.

• High-level replacement: typically snaps or clips into the existing door bin bracket; inspect for any broken clips or additional damage.
• Remove contents and empty the door bin before replacing to avoid spills or injury.
• Use basic hand tools only if screws are present; follow the OEM diagram for exact steps.
