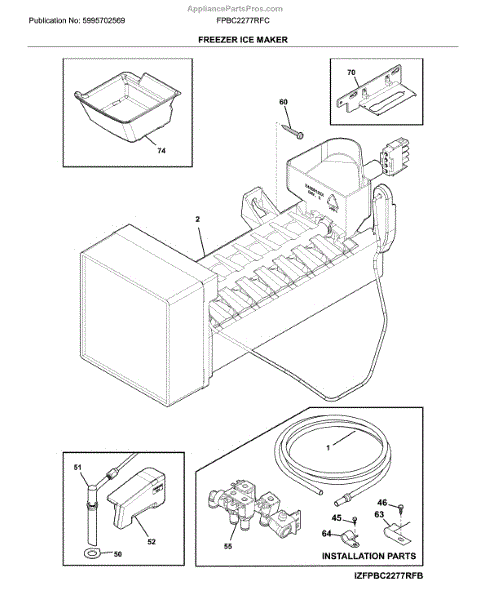

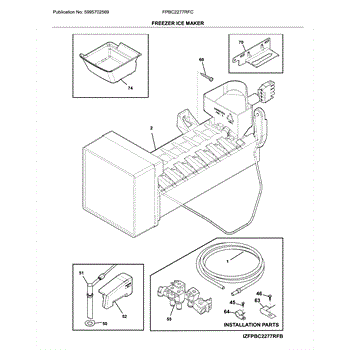

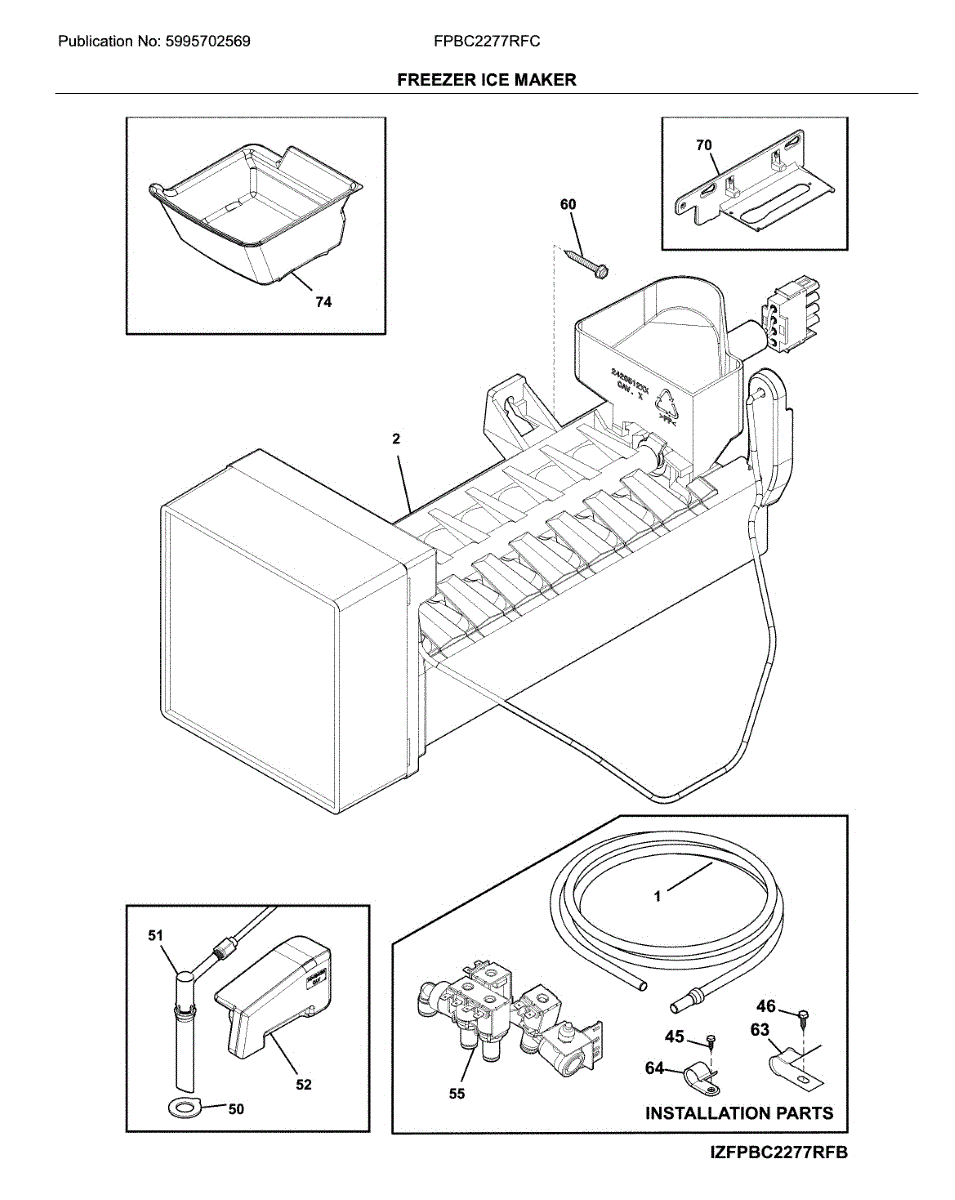

Parts for Frigidaire FPBC2277RFC: Freezer Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This water inlet tube routes potable water from the supply/valve to the refrigerator's water/ice system, keeping the dispenser and icemaker supplied. It's a direct-fit replacement that restores proper water flow and helps prevent leaks from damaged tubing. What it does:

• Channels water from the inlet valve to the dispenser/ice maker assembly
• Restores proper water delivery when original tubing is cracked, clogged, or leaking
• Helps prevent water damage by providing a secure, direct path for supply water
• Matches OEM routing and connection points for proper fit and flow

• One water inlet tube

• Disconnect power and shut off the home's water supply before starting
• Inspect fittings and replace any damaged clips or seals during install
• Use proper tools and avoid kinking the tube; hand-tighten fittings then test for leaks

The Ice Maker is an OEM replacement part for Frigidaire French doors and side-by-side refrigerators. It automatically produces batches of fresh ice for daily use.

Symptoms of an issue include:

• Reduced or discontinued ice production
• Ice cubes fused or stuck together
• Water or moisture inside the refrigerator

Causes can be mineral or scale buildup inhibiting parts, or damage from opening the refrigerator door before harvest is complete. Other causes involve mold growth or freezing of internal components over time.

Compatible with Gibson and Electrolux refrigerator models as well, it maintains a constant ice supply.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It is designed to manage the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control, opening to allow water in and closing to stop the flow, ensuring proper operation of both ice production and water dispensing functions.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• Leaking water at the back or bottom of the refrigerator
• An unusually noisy operation when the valve is activated

Causes of a bad water inlet valve can include mineral buildup, which may obstruct the flow of water, mechanical failure of the solenoids, or wear and tear that leads to leaks or failure to open/close properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

Replace a damaged refrigerator bracket to restore secure mounting of the associated component. This part holds the component firmly in place to maintain proper alignment and reliable performance inside the appliance.

• Provides a solid mounting point for the related interior part or assembly
• Helps maintain correct alignment and spacing of the component
• Reduces movement and vibration that can lead to noise or wear
• Common signs it may be bad: cracked or broken bracket, stripped holes, loose or misaligned component, rattling

• Disconnect power and shut off water supply before service; wear cut-resistant gloves
• Clear shelves/panels to access the bracket area and note part orientation
• Remove fasteners, swap the bracket, and reuse existing hardware if applicable
• Do not overtighten screws; confirm proper fit and alignment before reassembly

This snap bucket is the removable ice collection bin that holds and delivers cubed ice from the ice maker. It restores a secure, easy-to-remove ice storage that keeps ice contained and ready for dispensing. What it does:

• Collects and stores ice produced by the refrigerator ice maker
• Snaps into the ice maker housing for a secure fit and easy removal
• Helps prevent ice from spilling inside the freezer compartment
• Can be replaced if cracked, warped, or if ice does not properly collect

• Disconnect power to the appliance before servicing to avoid injury
• Remove any remaining ice and slide the old bucket out, then snap the new bucket into the ice maker housing
• Handle carefully to avoid damaging the ice maker components or surrounding trim
• No special tools are typically required;

Color: Black/natural. Nylon

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air
