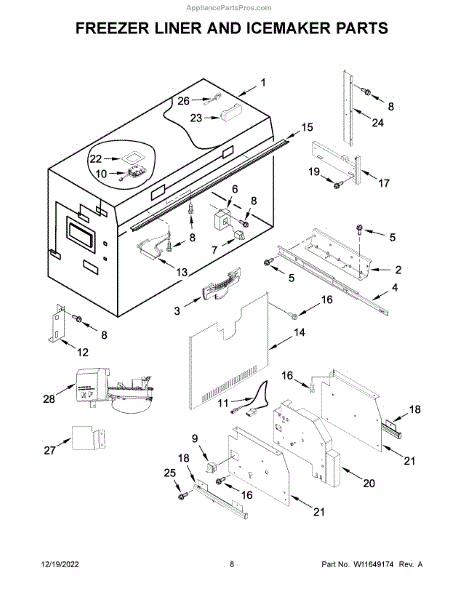

Parts for Kitchenaid KBFN502EBS05: Freezer Liner And Icemaker Parts

Parts for Kitchenaid KBFN502EBS05: Freezer Liner And Icemaker Parts

Location on Diagram
Part Description
Price & Availability
2
By: Whirlpool
Part Number: W10744328
$111.44

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Whirlpool
Part Number: W10541687

Toe kick grille for bottom-mount refrigerators. Covers the base opening beneath the door. Replace if cracked, discolored, or damaged for a clean look.

More
$48.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
By: Whirlpool
Part Number: W10061370

Mounting screw for bottom-mount refrigerators. Secures internal panels, shelves, or components. Replace if stripped, missing, or damaged during repair.

More
$11.23

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: W10606833
$26.14

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9
By: Whirlpool
Part Number: W11289496

Refrigerator light stays on or won't turn on? This door switch monitors door position to control interior lighting and energy efficiency. DIY repair.

More
$28.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W10568445
$24.25

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
By: Whirlpool
Part Number: W11575966
$22.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Whirlpool
Part Number: W10578092
$32.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
By: Whirlpool
Part Number: W11523752

This evaporator cover is a molded plastic air baffle that protects the evaporator area and helps direct cold airflow for more consistent freezer/refrigerator temperatures. It replaces cracked or broken covers that disrupt airflow. What it does:

  • Protects the evaporator coil and adjacent components from damage and debris
  • Directs cold air from the evaporator for more even cooling throughout the compartment
  • Helps maintain proper airflow to prevent localized frost buildup
  • Can reduce temperature fluctuation caused by damaged or missing covers
  • Works with the evaporator/defrost assembly to support normal defrost operation
What's included: One evaporator cover. Install notes:
  • Disconnect power to the appliance before beginning any disassembly.
  • Remove interior panels and shelving as needed to access the evaporator; retain all fasteners.
  • Handle the evaporator area and cover gently to avoid bending fins or breaking mounting tabs.
  • If mounting tabs or clips are damaged, replace them to ensure a secure fit and proper airflow.

More
$46.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
By: Whirlpool
Part Number: W10710401

Guides airflow inside your refrigerator for proper cooling distribution. Replace if cracked, broken, or missing to restore correct air routing.

More
$78.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
By: Whirlpool
Part Number: WPW10001160

Stainless steel 8-32 x .500 mounting screw for refrigerators and appliances. Replace missing, stripped, or damaged hardware during repairs or reassembly.

More
$9.05

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
17A
By: Whirlpool
Part Number: W10664382
$30.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
By: Whirlpool
Part Number: W10664384
$30.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18A
Product photo
By: Whirlpool
Part Number: 2306116

Replacement shelf slide for bottom-mount refrigerators. Guides and supports shelves for smooth gliding. Replace if cracked, broken, or worn to restore stability.

More
$141.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
18
Product photo
By: Whirlpool
Part Number: 2306117

Replacement drawer slide for bottom-mount refrigerators. Guides drawers to open and close smoothly. Install when original is cracked, broken, or worn.

More
$134.41

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
20
By: Whirlpool
Part Number: W10600628
$30.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21A
By: Whirlpool
Part Number: W10600626
$53.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21
By: Whirlpool
Part Number: W10600630
$56.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
22
By: Whirlpool
Part Number: W10672548
$11.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
23
By: Whirlpool
Part Number: W10609678

Protective cover housing for refrigerators. Shields internal components from dust and debris. Replace if cracked, broken, or missing to restore enclosure.

More
$24.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24
By: Whirlpool
Part Number: W10532983
$41.03

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
Best Seller
Product photo
5.0 (4)
By: Whirlpool
Part Number: W10316760

This sensor monitors temperature inside your refrigerator compartments and sends signals to the control board for proper cooling. It ensures your refrigerator maintains the correct temperature for food safety and energy efficiency. Replace this if your refrigerator runs constantly, doesn't cool properly, or shows inaccurate temperature readings.

More
$48.46

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
27
By: Whirlpool
Part Number: W11639152
$22.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
