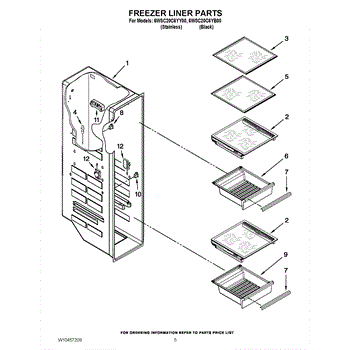

Parts for Whirlpool 6WSC20C6YY00: 04 - Freezer Liner Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This replacement freezer bin is the clear plastic storage drawer that holds frozen foods and helps keep the freezer organized. It restores a lost or damaged drawer so items stay contained and easy to access. What it does:

• Replaces a cracked, warped, or missing freezer drawer so food stays contained and organized.
• Slides into the freezer compartment on existing rails to provide a stable storage shelf.
• Helps prevent items from shifting or falling when the freezer door is opened.
• Makes it easier to see and access stored items thanks to the clear plastic construction.

• Remove all contents from the freezer compartment before installing.
• Slide the new bin into the existing tracks until it seats; no special tools typically required.
• Handle edges carefully to avoid cuts from sheet metal inside the cabinet.

The Ice Bin Safety Switch is an OEM replacement part for Whirlpool refrigerators, ensuring safe and efficient operation of the ice maker. Positioned to detect the ice bin, it activates the ice maker when the bin is in place and deactivates it when removed for cleaning or emptying.

Common causes for Ice Bin Safety Switch issues may include physical damage occurring during cleaning or routine use, electrical problems like short circuits, wear on the switch's contacts affecting functionality, and misalignment or incorrect installation of the ice bin causing inaccurate bin detection.

Symptoms of a malfunctioning Ice Bin Safety Switch include:

• The ice maker not producing ice
• The ice maker continuing to operate even without the ice bin in place
• Unusual behavior from the ice maker, such as starting and stopping erratically

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
