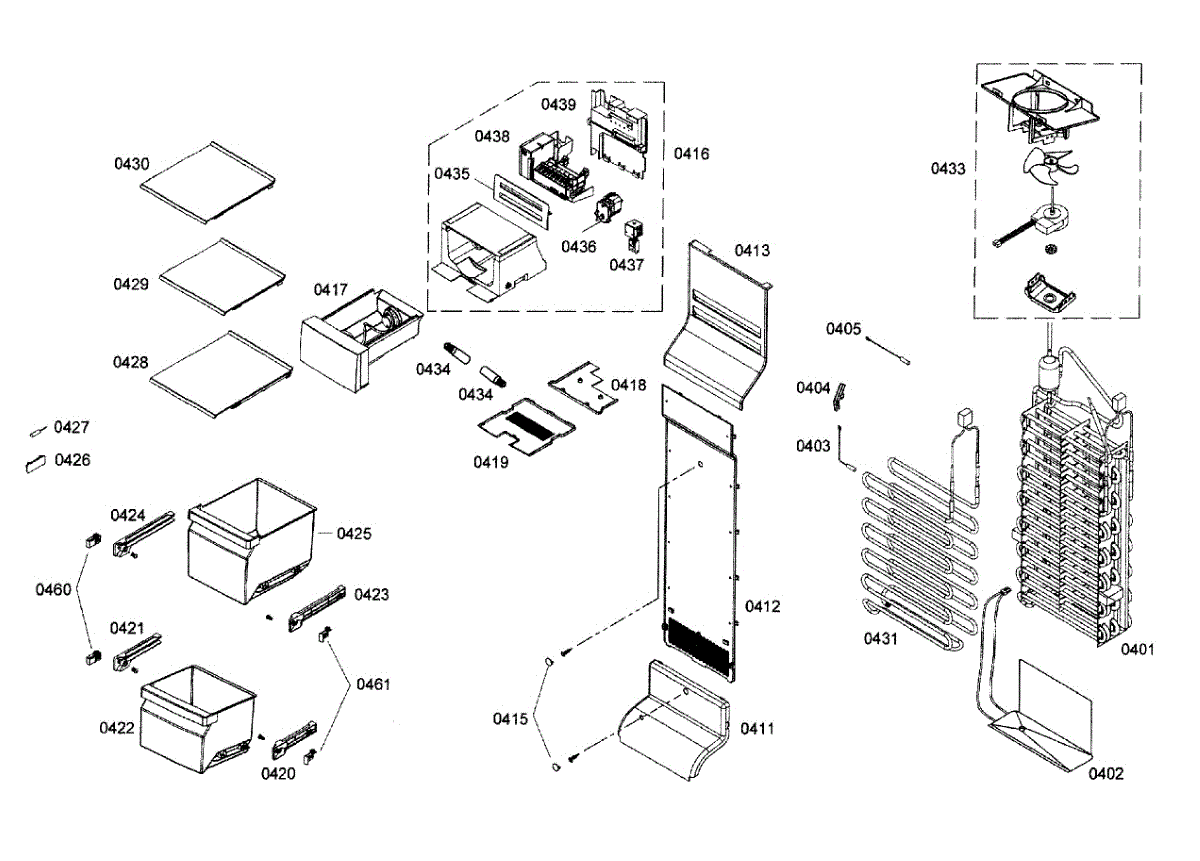

Parts for Bosch B22CS30SNI/01: Freezer Parts

The Water Filter is an OEM part for Bosch refrigerators. This part removes impurities and contaminants from the water supply to your appliance. This part ensures that the water and ice dispensed by your refrigerator are clean, taste fresh, and are free of common waterborne particles and substances.

Over time, the water filter can become clogged with sediments and contaminants, reducing its effectiveness and potentially affecting the taste and quality of the water and ice. Regular replacement is essential for maintaining optimal performance.

Symptoms of a bad Water Filter include:

• Unpleasant taste or odor in the water or ice
• Decreased water flow to the dispenser or ice maker
• Visible particulate matter in the water or ice cubes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Temperature sensor that monitors internal appliance temperature and provides the control board with accurate readings. Replacing a faulty sensor helps restore correct temperature regulation and prevents food spoilage or freezer issues. What it does:

• Sends temperature readings to the appliance control so cooling and defrost cycles can run correctly.
• Common symptoms of a failing sensor: inconsistent temperatures, refrigerator or freezer running too warm or too cold, compressor or fans cycling abnormally, or ice maker not advancing.
• Can affect temperature-based functions on models that use this sensor for those controls.
• Replace if the sensor shows open/short behavior or gives inconsistent readings compared to expected operation.

• Always disconnect power to the appliance before servicing to avoid electric shock.
• Handle the sensor and probe carefully; the tip and wire connections are fragile.
• Reconnect wiring and mounting securely; avoid pinching the sensor wire or contaminating the probe.
• After installation, restore power and verify the appliance reaches and maintains expected temperatures.

This thermal fuse is a single temperature-cutout safety device that stops electrical flow when an appliance overheats, protecting wiring and components. Replace a failed fuse to restore normal heating control and safety. What it does:

• Opens the circuit when internal temperature exceeds safe limits to prevent overheating
• Stops power to the heating system or motor circuit when the fuse has blown
• Common symptom: appliance runs but no heat or heating element does not activate
• Common symptom: appliance stops mid-cycle or will not start due to open thermal circuit

• One thermal fuse

• Disconnect power before accessing or replacing any internal components
• Locate the thermal fuse on the appliance wiring or near the heater assembly per your model's service guide
• Verify an open fuse with a multimeter; replace with the exact part number—do not bypass

This icemaker assembly replaces the frozen-water harvesting unit that makes and dispenses ice in compatible refrigerators, restoring reliable ice production and reducing gaps in supply. What it does:

• Cycles and ejects formed ice into the ice bin so the refrigerator can store and dispense ice
• Restores ice production when the dispenser or bin stays empty
• Helps stop intermittent ice delivery or small batches caused by a failing icemaker
• Works with the refrigerator's water feed and control signals to produce cubes on schedule

• One icemaker assembly

• Disconnect refrigerator power and water supply before starting; follow manufacturer safety instructions
• Handle the unit carefully to avoid damaging fill tubes, connectors, or the ejector mechanism
• Confirm refrigerator model compatibility and alignment of electrical/water connections before final installation

This ice crusher assembly grinds and breaks ice inside the dispenser so your refrigerator can dispense smaller, usable ice pieces. It restores proper ice flow and reduces large ice clumps that can block the dispenser. What it does:

• Rotates and crushes large ice pieces for smoother dispensing
• Prevents ice jams and reduces strain on the dispenser mechanism
• Reduces large, hard ice chunks that can cause noisy operation
• Helps restore normal ice dispensing when the crusher is worn or damaged

• One ice crusher assembly

• Disconnect power to the refrigerator before servicing to avoid electrical shock
• Handle carefully; parts may have sharp edges and small components
• Test the dispenser after reinstalling to confirm proper operation

This replacement drawer restores storage and access for your appliance's lower compartment, providing a smooth, secure tray for holding items and keeping interiors organized. Designed to match OEM fit and function for straightforward swaps. What it does:

• Replaces a cracked, warped or missing drawer to restore usable storage capacity
• Slides in and out to allow easy access to items stored in the compartment
• Helps prevent items from shifting or falling during normal use
• Reduces rattling or binding caused by damaged or worn trays

• Remove power and empty the compartment before replacing the drawer
• Slide the old drawer out per your appliance's service instructions; align and seat the replacement on the drawer rails
• Check rails and rollers for wear; replace worn rails or rollers separately if needed

This is a replacement glass shelf that restores stable, level storage space in your appliance. It provides a sturdy, easy-to-clean surface for holding food and containers inside the compartment. What it does:

• Replaces a cracked, chipped or missing glass shelf to restore usable storage area
• Provides a flat, stable surface for jars, bowls and containers
• Helps keep items organized and prevents spills from reaching lower compartments
• Fits into the cabinet's existing shelf supports or brackets

• Handle with care and use gloves to avoid cuts from edges or broken glass
• Support the shelf while sliding it into the side rails or brackets to avoid dropping
• Confirm shelf engages securely in the supports and sits level before loading
• If glass is broken, remove all fragments before installing replacement.

The Fan Motor is an OEM part for Bosch refrigerators. It is responsible for circulating cold air throughout the freezer compartment to keep your freezer contents frozen.

A bad fan motor can occur due to normal wear and tear, electrical malfunctions, or damage from frost buildup or debris. Signs of a faulty fan motor include reduced cooling performance, unusual noises coming from the freezer, or the presence of frost or ice buildup.

Symptoms of a bad fan motor include:

• Insufficient cooling in the freezer
• Unusual noises
• Excessive frost or ice buildup

Replace your faulty fan motor with this genuine OEM Bosch part to restore your refrigerator. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Lamp is an OEM replacement part for Bosch refrigerators. It illuminates the interior, allowing for visibility of contents even in low-light conditions. A bright and long-lasting light source ensures continued visibility and convenience when accessing items stored inside.

Symptoms of a bad lamp can include intermittent or unreliable lighting, flickering bulbs, or lamps that fail to illuminate entirely. Over time, constant vibrations may cause loose connections or cracked sockets.

Causes of a bad lamp include:

• Lamps that do not illuminate at all or very dimly
• Flickering or unreliable bulbs that do not stay lit
• Sockets, leads, or connectors that overheat during use
• Bulbs burn out rapidly rather than lasting months

This OEM Bosch part ensures continued clear interior visibility for Bosch refrigerators as well as products made by Thermador, Gaggenau, and select Kenmore models.

This dispenser flap is the replacement flap that seals and releases detergent in the dishwasher dispenser, helping the detergent stay in place until the wash cycle. It restores proper detergent release and prevents premature opening of the dispenser. What it does:

• Seals the detergent compartment so powder or tablets stay in place before the wash.
• Opens/releases detergent at the programmed point in the cycle for effective cleaning.
• Helps prevent detergent from leaking into the tub before the wash starts.
• Commonly replaced when the dispenser door won't stay closed or the flap is broken.

• One replacement dispenser flap.

• Disconnect power to the appliance before starting any repair.
• Remove the dishwasher door inner panel to access the dispenser; keep screws organized.
• Inspect the dispenser assembly for additional damage; replace other worn components as needed.

This water inlet valve controls dishwasher water flow, allowing the appliance to fill when a wash cycle starts. Replaces a worn or leaking inlet valve to restore proper water fill and cycle operation. What it does:

• Opens and closes to admit water into the dishwasher at the start of a cycle.
• Stops water flow when the correct fill level or fill time is reached.
• Commonly replaced when you see slow fills, no fill, or visible leaks at the valve.
• Works with the dishwasher's control system to regulate water delivery during cycles.

• One water inlet valve as shown

• Disconnect power and shut off the water supply before removing or installing the valve.
• Inspect hoses and fittings for damage and replace any worn seals to prevent leaks.
• Tighten connections securely but avoid over-tightening plastic fittings.

This icemaker assembly replaces the frozen-water harvesting unit that makes and dispenses ice in compatible refrigerators, restoring reliable ice production and reducing gaps in supply. What it does:

• Cycles and ejects formed ice into the ice bin so the refrigerator can store and dispense ice
• Restores ice production when the dispenser or bin stays empty
• Helps stop intermittent ice delivery or small batches caused by a failing icemaker
• Works with the refrigerator's water feed and control signals to produce cubes on schedule

• One icemaker assembly

• Disconnect refrigerator power and water supply before starting; follow manufacturer safety instructions
• Handle the unit carefully to avoid damaging fill tubes, connectors, or the ejector mechanism
• Confirm refrigerator model compatibility and alignment of electrical/water connections before final installation
