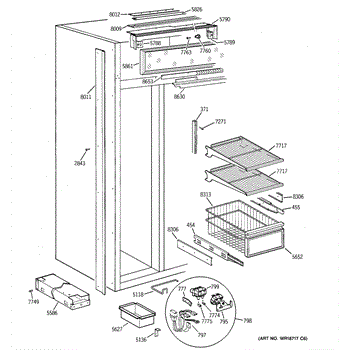

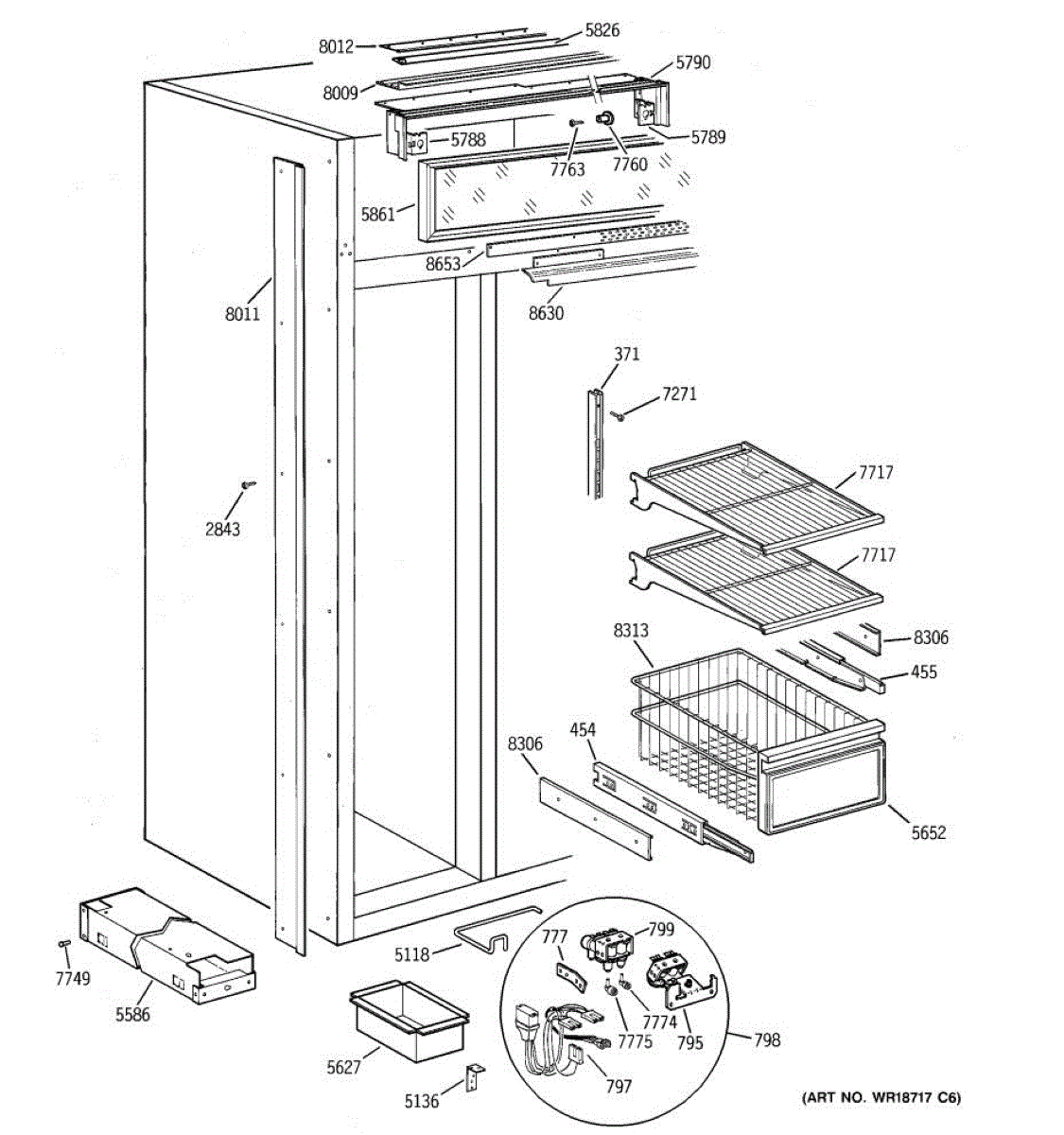

Parts for Ge ZISB48DCB: 04 - Freezer Section Parts

Freezer side shelf track.

This is the right hand side slide assembly. For the left hand side order WR72X285.

This is the left hand side slide assembly. For the right hand side order WR72X284.

Mounting bracket that secures the water valve in your refrigerator. Replace if the bracket is cracked, bent, broken, or missing to properly support the valve.

Fix leaking water or a non-working ice maker with this refrigerator water inlet valve. Moderate DIY repair in 30-45 minutes with basic tools.

Wire harness assembly that routes electrical connections between refrigerator components. Replace if wires are damaged, frayed, broken, or corroded.

Fix no water dispensing or leaking behind your refrigerator. This water inlet valve controls flow to the ice maker and dispenser. DIY repair in under an hour.

Ice maker not filling or water dispenser leaking? This water inlet valve controls flow to your ice maker and dispenser. Most DIYers complete in 15-30 minutes.

Replacement mounting screw that secures panels and internal components in your freezer. Replace stripped, rusted, or missing fasteners to restore stability.

Left side base roller assembly for refrigerators. Mounts to the bottom left corner to support and allow movement. Replace if cracked, worn, or broken.

This vent top gasket seals the front edge of the range vent to help contain heat, steam and cooking vapors and maintain a snug fit between the vent assembly and the cooktop. It replaces a torn, flattened or missing gasket to restore the vent seal. What it does:

• Seals the front vent seam to reduce heat and steam escape from the cooktop area
• Helps prevent grease, crumbs and debris from entering the vent cavity
• Reduces rattling or air gaps caused by a worn or compressed gasket
• Restores a proper fit between the vent top and surrounding surfaces

• Disconnect power (and gas if applicable) to the appliance before starting work
• Remove the vent top or cooktop per the appliance service instructions to access the gasket area
• Clean mating surfaces and remove old adhesive residue before installing the new gasket
• Use care with tools and sharp edges; wear gloves and eye protection

Track screw for refrigerator drawer or shelf rail assembly. Replaces stripped, missing, or damaged screws that secure sliding tracks in place.

Barrel nut secures screws in refrigerator and freezer assemblies. Replaces broken, stripped, or missing threaded inserts for panels, brackets, and trim.

A specialized fastener that secures the door handle to the refrigerator door panel. Located behind or within the handle assembly, replacement is necessary when the handle becomes loose, wobbly, or detaches from the door.

Freezer shelf support slide that secures shelving inside your freezer. Sold individually for right or left side installation. Replace if cracked or broken.
