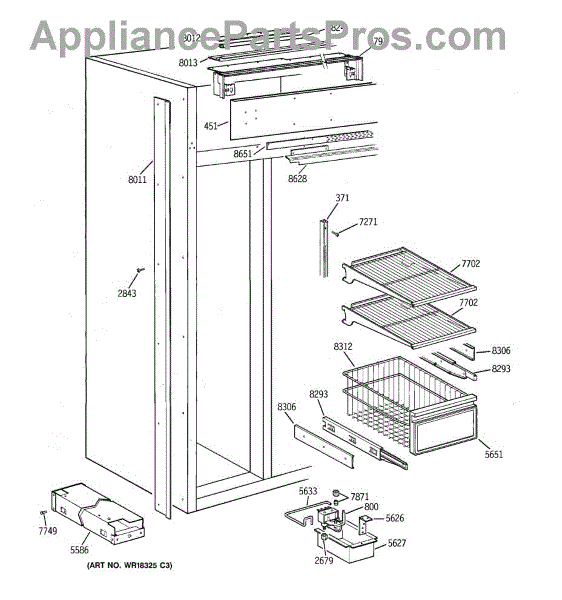

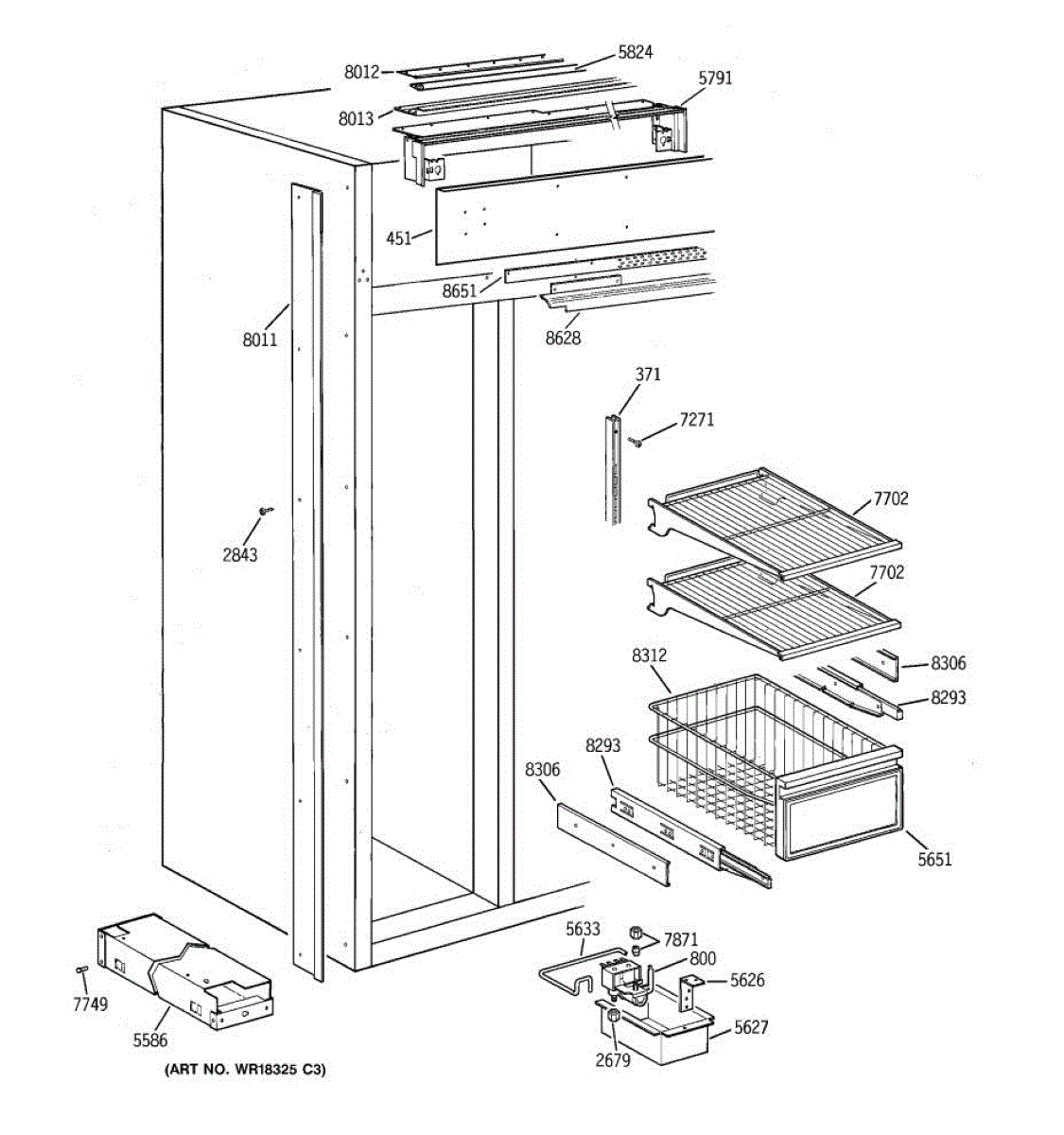

Parts for Ge ZISW36DXA: 04 - Freezer Section Parts

Freezer side shelf track.

The Dual Water Inlet Valve Kit is an OEM part for GE refrigerators. It controls the flow of water to both the ice maker and the water dispenser. This dual-function valve ensures that your refrigerator can produce ice and dispense water efficiently. The valve operates by opening and closing in response to signals from the refrigerator, allowing water to flow into the ice maker or water dispenser when needed.

The dual water inlet valve may wear out over time, especially in hard water areas, leading to issues like no ice production, malfunctioning water dispenser, or leaks.

Symptoms of a bad Dual Water Inlet Valve Kit include:

• No water being dispensed
• The ice maker not producing any ice
• A slow or irregular flow of water from the dispenser
• Water leaking from the valve

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

This slide rail assembly mounts beneath the fresh-food shelf to guide and support the deli/snack drawer, helping it open and close smoothly. Replace a cracked or worn slide to stop sticking, tilting, or the drawer dropping off its track.

• Supports and aligns the deli/snack drawer under the fresh-food shelf
• Provides smooth sliding action along the track
• Helps keep the drawer level and properly seated
• Common symptoms: drawer sticks, sags, falls off, or the rail is visibly cracked/broken

• Disconnect power; remove the drawer and clear the shelf area
• Remove screws or clips securing the old slide; note its orientation
• Install the new slide and transfer any reusable hardware if needed
• Reinstall the shelf and drawer; verify smooth travel before loading

Slide for both right and left sides. 1 per package.

Freezer basket rear assembly for 42 and 36 inch GE/Monogram refrigerators.
