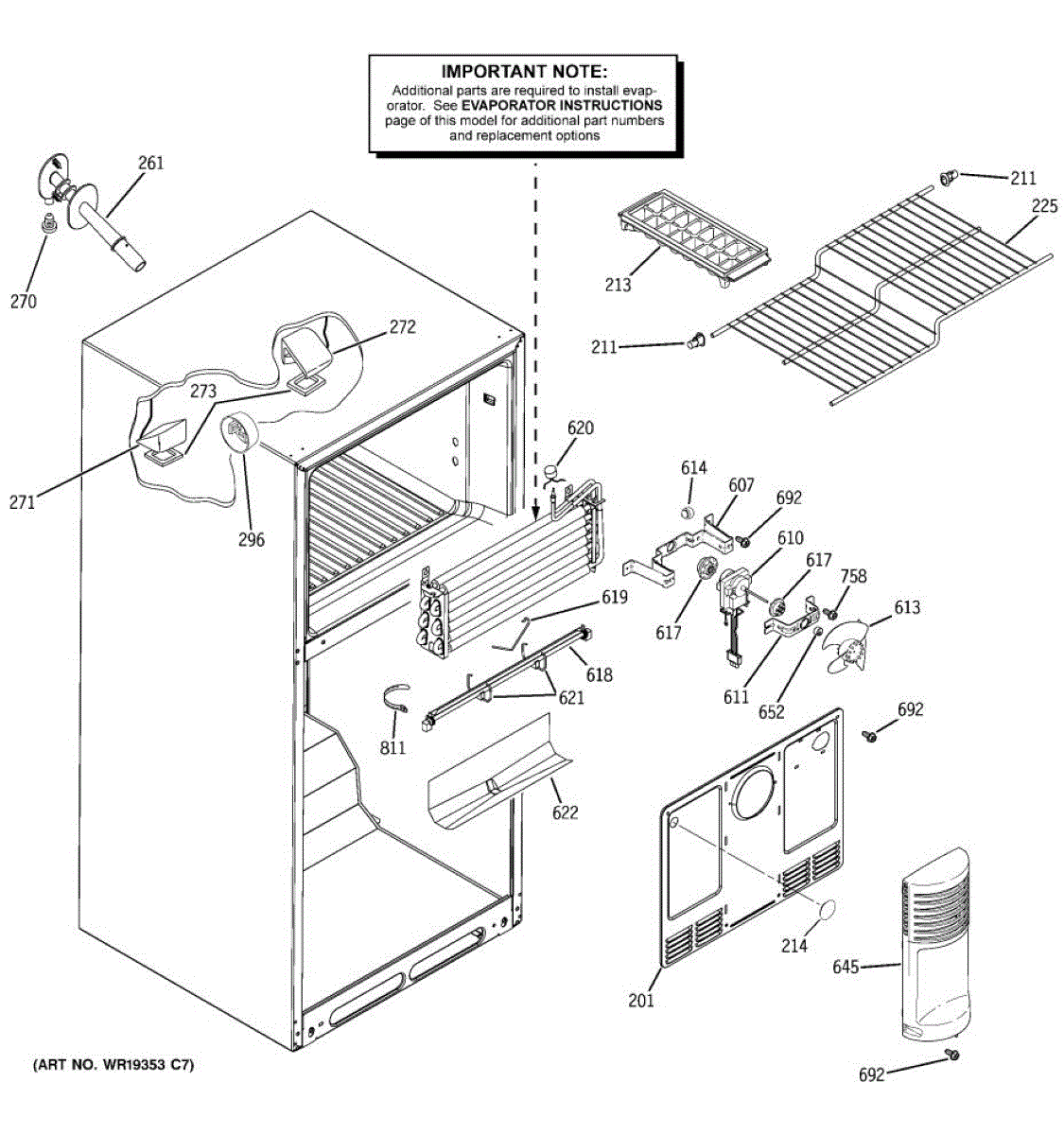

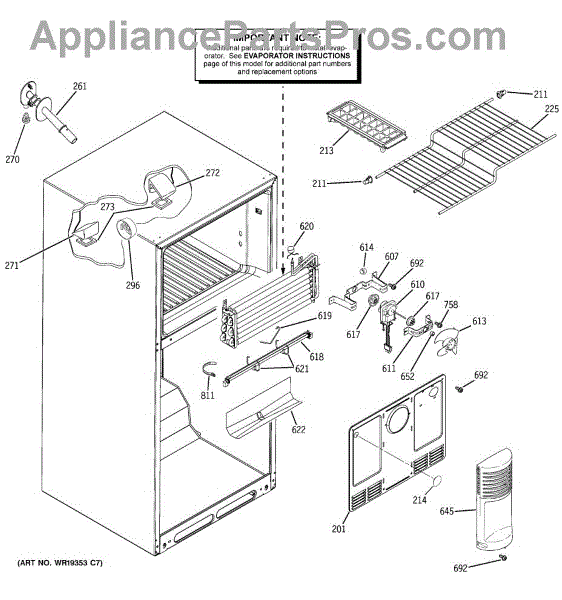

Parts for Ge GTH18JLSKRBS: 02 - Freezer Section Parts

This freezer shelf assembly restores stable, level storage space in the freezer compartment. Replace a cracked or missing shelf to keep food organized and maintain proper spacing for consistent cold-air circulation.

• Provides a sturdy, level surface to store and organize frozen items
• Helps maintain proper airflow and spacing for efficient cooling
• Replace if the shelf is cracked, bent, broken, or missing
• Common signs include sagging under normal load or not staying seated in side supports

• Unplug the refrigerator before servicing
• Remove items from the area, then lift/slide the old shelf out of the side supports or tracks
• Position the new shelf in the same slots and fully seat both sides
• Verify the shelf is level and secure before loading items

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. As the primary cooling component, the evaporator fan motor works to circulate cold air throughout the refrigerator's interior compartments.

Causes of a bad evaporator fan motor can include normal wear and tear, debris accumulation inhibiting fan blade rotation, or failure of electrical components regulating motor operation.

Symptoms of a bad evaporator fan motor include:

• Inconsistent or inadequate cooling within refrigerator sections
• Audible clicking or grinding noises emanating from the fan area
• Accumulation of frost or moisture inside unless manually cleaned out regularly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

The Evaporator Motor Fan Blade is an OEM part for GE refrigerators. This component is crucial for circulating air over the evaporator coils, which helps to maintain the correct temperature within the refrigerator and freezer compartments. By moving air efficiently, it ensures that the appliance cools evenly and prevents frost buildup.

Over time, the evaporator motor fan blade can become damaged or wear out due to regular use, ice accumulation, or accidental impact from other items within the refrigerator. These issues can hinder its ability to circulate air effectively.

Symptoms of a bad evaporator motor fan blade include:

• Unusual noises like clicking or scraping from the fan area
• Inconsistent temperatures in the refrigerator or freezer
• The refrigerator running more frequently or continuously
• Visible damage or warping of the fan blade

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Defrost Heater is an OEM part for GE refrigerators. This part melts away frost that accumulates on the evaporator coils during the cooling cycle. This process is vital for maintaining the efficiency of the refrigerator, ensuring that air can flow freely over the coils to keep the unit cooling effectively.

Causes of a bad defrost heater can include a faulty heater element, electrical issues preventing the heater from activating, or damage to the heater's wiring.

Symptoms of a bad Defrost Heater include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer section is too warm
• The refrigerator is running constantly without cycling off
• Pools of water or ice on the floor of the freezer compartment

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement defrost heater warms the freezer's evaporator area during the automatic defrost cycle. It melts accumulated frost so air can circulate, helping maintain stable temperatures and preventing ice buildup on the back wall.

• Heats the evaporator to clear frost and ice during defrost
• Helps keep airflow passages and the defrost drain path open
• Common symptoms of a failed heater: heavy frost on the back panel/coils, poor cooling or warm sections, fan noise from ice contact, cooling returns temporarily after a manual defrost
• Typically located behind the rear freezer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator by removing the freezer's rear panel; thaw heavy ice before removal
• Transfer any clips/brackets and route wires exactly as original, keeping them away from plastic parts
• After installation, ensure wiring connections are secure and the heater is not contacting plastic surfaces

The Defrost Thermostat is an OEM part for GE refrigerators. It plays a key role in the defrost system by monitoring the temperature of the evaporator coils and activating the defrost heater when necessary to prevent frost buildup. This part is equipped with one orange lead (4-3/4'') and a yellow lead (15-1/2''), with bare wire ends; but, wire connectors are not included.

Causes of a bad defrost thermostat can include electrical issues, wear and tear over time, or exposure to moisture. A malfunctioning defrost thermostat can result in excessive frost accumulation on the evaporator coils, leading to cooling issues and increased energy consumption.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• The refrigerator or freezer not cooling properly
• Increased energy usage
• The defrost heater not activating during the defrost cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder element assembly secures the appliance's heating element in the correct position so the element stays stable for consistent operation and safe performance. It's a direct-fit replacement for worn or damaged holders. What it does:

• Secures and supports the heating element inside the appliance to maintain proper alignment
• Prevents element sagging or contact with other components that can cause noise or arcing
• Helps reduce vibration and movement that can lead to intermittent heating
• Common symptom: visible holder damage, loose or shifted element, unusual noise during operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Allow appliance and element to fully cool before handling
• Handle the element and holder carefully to avoid bending or damaging the element

This tower bottom for the freezer compartment mounts beneath the evaporator/tower assembly and directs cold air while protecting internal components. It helps maintain proper airflow and supports the evaporator area for reliable cooling performance. What it does

• Supports and secures the lower portion of the freezer tower/evaporator assembly
• Channels cold air from the evaporator into the freezer compartment for even circulation
• Shields wiring and small components from ice buildup and physical damage
• Can reduce rattling or loose panel noise when the original part is cracked or broken
• Commonly replaced when the tower is cracked, warped, or missing mounting tabs

• One tower bottom (freezer) piece

• Disconnect power to the refrigerator before starting any repair to avoid shock or injury
• Removal typically requires taking out interior liners or trim panels; keep fasteners organized
• Handle plastic parts carefully to avoid breaking tabs; use appropriate tools to pry or lift panels

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.
