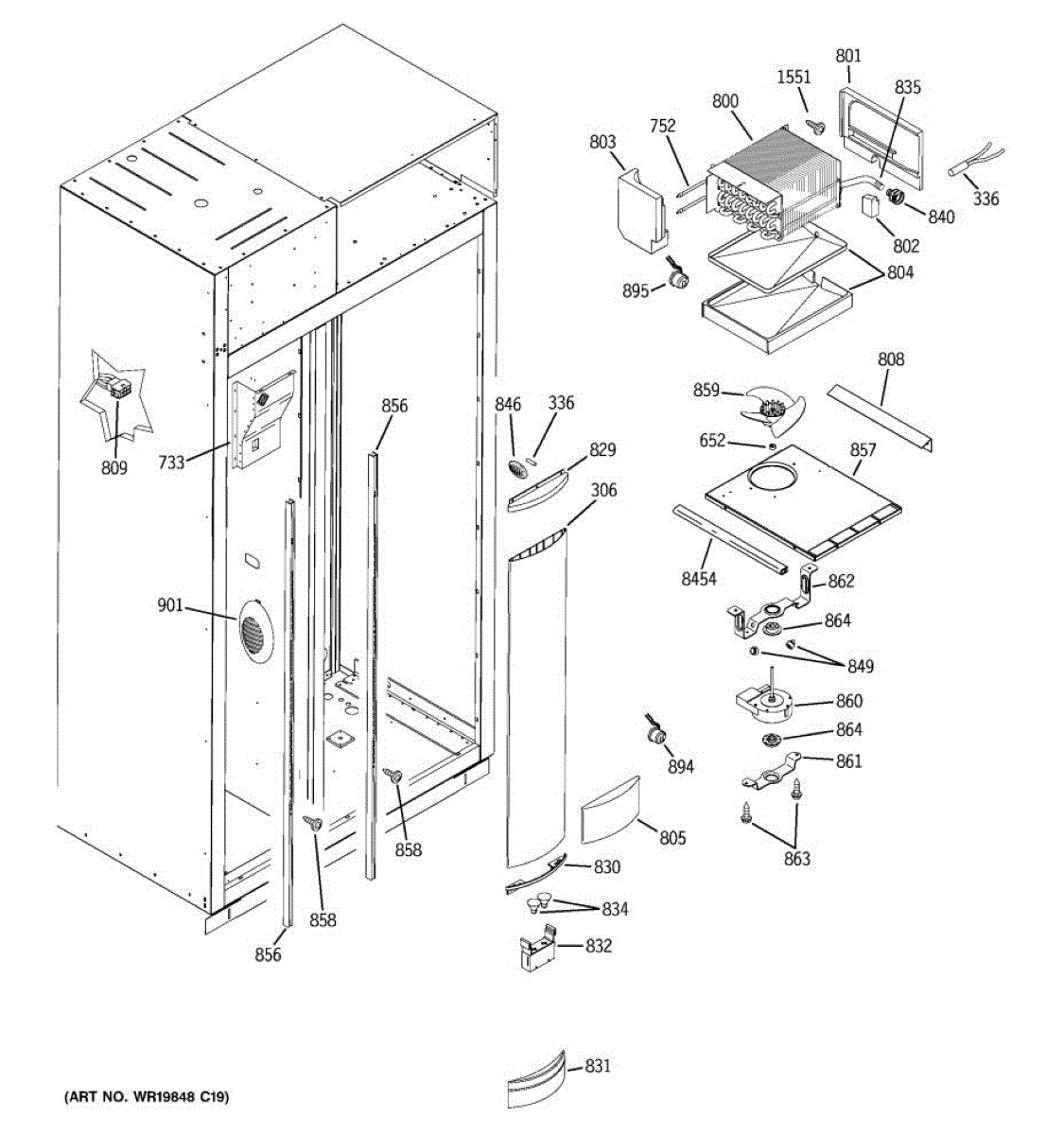

Parts for Ge ZISB480DRK: 04 - Freezer Section Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

Fix ice buildup on freezer walls with a new defrost heater. Solves continuous icing and frost accumulation. Moderate DIY repair for most models.

Rubber grommet cushions and seals openings in your refrigerator to protect wiring or tubing. Replace if cracked, torn, or missing to restore fit.

This icing kit is a factory update designed to reduce frost build-up in the ice/dispenser area. It improves sealing and insulation to help keep the ice path clear and restore reliable dispensing performance.

• Reduces frost or ice accumulation caused by air leaks or condensation in the ice path
• Improves sealing/insulation so the ice door closes properly and maintains a tight seal
• Helps prevent blocked ice flow and intermittent dispensing due to icing
• Common symptoms include frost around the dispenser opening, ice door not closing fully, or a sticking/jamming dispenser

• Disconnect power and turn off the water supply before servicing
• Follow the manufacturer's installation instructions for your specific model
• After reassembly, verify the ice door operates freely and seals without gaps
• Allow up to 24 hours of normal operation for temperatures and moisture levels to stabilize

Secures the quick connect duct assembly in your refrigerator. Replace if the bracket is cracked, broken, or missing to properly mount ductwork components.

Wire harness connector for refrigerator electrical systems. Replaces damaged, corroded, or loose connectors. Installs on internal wiring harnesses.

Endcap for the light column in your refrigerator's freezer section. Replace if cracked, broken, or missing to restore a clean, finished appearance.

Bottom endcap for refrigerator light column assembly. Replaces cracked, broken, or missing endcaps that secure the light column in place.

Secures the interior light bulb and socket in your refrigerator. Replace this 1-piece housing assembly if cracked, damaged, or loose to restore proper mounting.

Halogen bulb for refrigerator light column. Replace when interior lighting fails to restore bright, even illumination. Verify fit with your model number.

Flexible drain tube that routes defrost water from the evaporator to the drain pan. Replace if cracked, split, clogged, or missing to prevent leaks.

Protective grille cover that mounts over the temperature sensor in your refrigerator. Replace if cracked, broken, or missing to properly shield the sensor.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Phillips pan head tapping screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace missing or stripped screws.

Fix loud fan noise and poor cooling with a new evaporator fan blade. Restores airflow across coils. Moderately difficult install in tight freezer space.

If your refrigerator compartment isn't cooling while the freezer stays cold, the evaporator fan motor likely failed. DIY-friendly repair with video guide.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

Secures the evaporator fan shroud to the rear compartment frame. Replace if rusted, cracked, or broken to properly support the fan assembly and alignment.

Mounting screw for refrigerator interior components like fan brackets, ice maker assemblies, and shelving. Replace if stripped, missing, or corroded.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

This thermostat light is the small indicator lamp that illuminates the control area so you can see thermostat settings and status. It provides a clear visual signal when the control is powered. What it does:

• Lights the thermostat/control panel area for visibility
• Indicates when the control or circuit is energized
• Commonly replaces a burned-out or dim lamp
• Helps diagnose a non-illuminated control (lamp failure vs. power issue)

• Disconnect power to the appliance before inspecting or replacing the lamp
• Remove the control panel or housing per the appliance service instructions to access the lamp
• Handle the lamp and connector carefully to avoid damage; do not force wiring
• If the control remains unlit after replacement, test for power to the control

Fix ice buildup on evaporator coils with this defrost thermostat. Monitors coil temperature to signal defrost cycles. Test for continuity when frozen.

Fixes uneven cooling in fresh food section. This air diffuser directs chilled air for consistent temperatures. Simple DIY repair restores airflow.

Secures panels, brackets, and components inside your refrigerator or freezer. Replace when original fasteners are missing, stripped, or corroded.

Replacement edge trim that covers and protects exposed edges on refrigerator doors or cabinets. Needed when original trim is cracked, broken, or missing.
