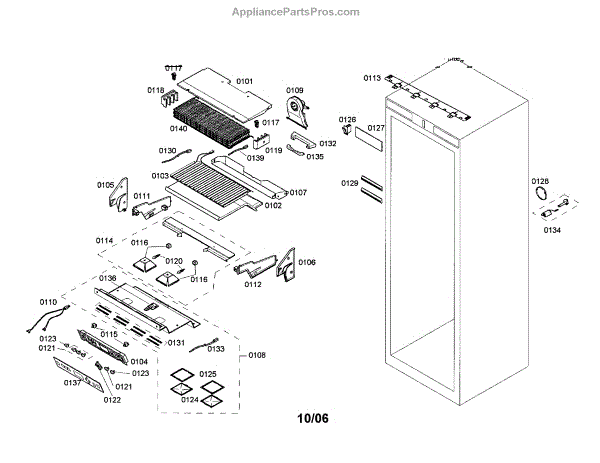

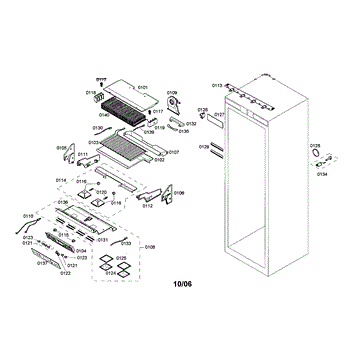

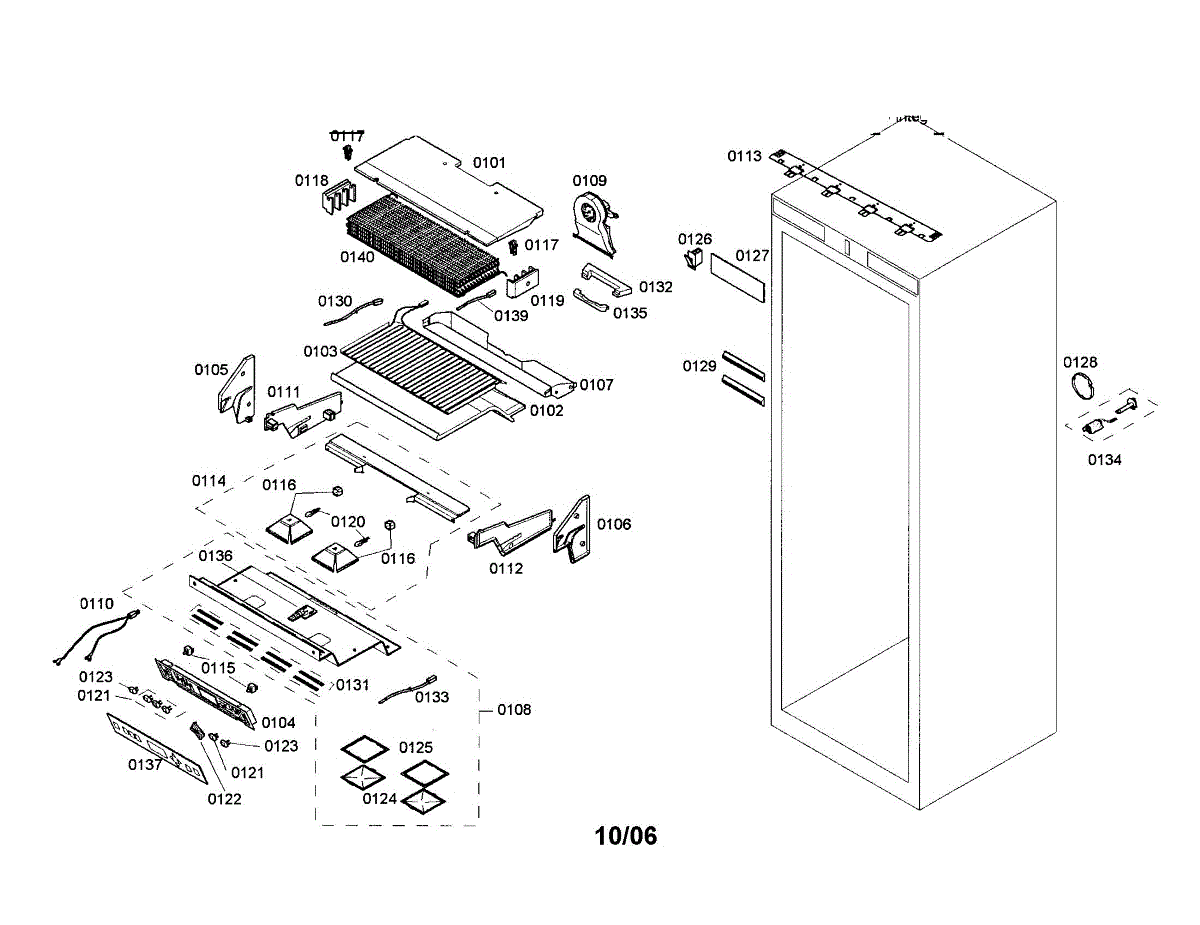

Parts for Thermador T30IF70CSS-01: Freezer Section Parts

This insulating part is a small thermal/electrical insulation pad used to protect surrounding components from heat and prevent electrical shorts. It helps maintain safe operation and component longevity by isolating heat and wiring. What it does

• Provides thermal separation between heated components and nearby parts to reduce heat transfer.
• Helps electrically insulate terminals or wiring from metal chassis to prevent shorts.
• Commonly replaced when burned, cracked, missing, or when nearby components overheat.
• Supports safe operation by keeping wires and sensors away from hot surfaces.

• Inspect mounting area and surrounding components for damage before installing.
• Replace only when device is powered off and disconnected from mains to avoid shock.
• Position the insulating pad exactly as the old piece to ensure proper clearance; secure any fasteners or clips as originally installed.
• If adhesive or clips are required, use OEM-recommended materials or equivalents rated for appliance temperatures.

This defrost heater melts frost and ice buildup on the evaporator to restore normal airflow and cooling performance in frost-free refrigerators. It replaces a failed heater to help prevent excessive frost accumulation and compressor overwork. What it does:

• Heats the evaporator coil during defrost cycles to remove frost and ice.
• Helps restore proper airflow and temperature consistency in the freezer compartment.
• Commonly replaced when the freezer has heavy frost buildup or reduced cooling.
• Works as part of the refrigerator's automatic defrost system; not a standalone thermostat or control.

• One defrost heater assembly.

• Disconnect power to the appliance before servicing to avoid electric shock.
• Access typically requires removing the evaporator cover/panel in the freezer; follow the OEM service manual.
• Inspect wiring and connectors for heat or corrosion damage and replace any compromised components.
• If defrost issues persist after replacement, check the defrost thermostat, timer/control board, and sensors per OEM troubleshooting.

This operating module is the dishwasher's electronic control board that interprets user inputs and manages cycle functions, restoring responsive controls and proper cycle sequencing when the original module fails. What it does:

• Receives touchpad or button commands and runs the selected wash cycles
• Controls timers, valve/relay signals, and cycle sequencing for normal operation
• Can cause unresponsive controls, incorrect cycles, or failure to start when faulty
• Works with the front control assembly to relay status and error feedback

• One operating module (electronic control board)

• Disconnect power before service to avoid electrical shock
• Handle the board by edges and avoid static discharge; wear an ESD strap if available
• Minor disassembly of the control panel or door is typically required; follow the OEM service manual

This replacement heating element warms dishwasher wash water to help detergents dissolve and improve cleaning and drying performance. Designed to restore proper water temperature for normal wash cycles when the original heater fails. What it does:

• Heats wash water so detergents activate and soils break down during the main wash.
• Helps the rinse/dry phase reach higher temperatures for improved drying and sanitizing.
• Common symptoms: dishes not getting clean, poor drying, unusually long cycles, or no heat during cycles.
• Works as the direct replacement for a failed or damaged tub heater assembly.

• Always disconnect power to the appliance before starting work; verify power is off at the breaker.
• Access typically requires removing the lower kick panel or toe panel—handle internal components and wiring with care.
• Inspect mounting gaskets and wiring for damage; replace any corroded connectors or compromised seals.
• After installation, restore power and run a short test cycle to check for leaks.

The Motor-Fan is an OEM component specifically designed for Bosch refrigerators. It circulates air to optimize internal temperatures.

The motor-fan works continuously to push cool air from the freezer compartment and direct airflow throughout refrigerator shelves and bins. Strategically positioned vents help regulate temperature variances.

Symptoms of a bad motor-fan include:

• Inconsistent or fluctuating temps from section to section
• Frost or condensation building up unusually fast
• Abnormal sounds like grinding or squealing during the operation
• Complete lack of airflow

Causes can be a failed motor bearing, compromised fan blades off balance, or blockage preventing free rotation.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore refrigerator models.


This holder is a small mounting bracket that secures internal components in place to prevent movement and wear. It restores proper alignment and helps stop rattling or loose parts inside the appliance. What it does

• Secures wiring, sensors, or small assemblies to the appliance chassis to prevent displacement.
• Helps eliminate vibrations, rattling noises, or intermittent contact caused by loose components.
• Maintains correct positioning so related parts can operate reliably.
• Protects fragile components from rubbing or impact damage during use.

• One holder / mounting bracket as shown

• Refer to the appliance's service manual or parts diagram for the correct location and orientation before installing.
• Disconnect power (and water if applicable) before servicing to reduce risk of shock or injury.
• Use appropriate hand tools; avoid overtightening fasteners that can crack plastic mounting points.
• Replace damaged clips or fasteners to ensure a secure installation.

The FIXTURE is an OEM replacement part for Bosch freezers. Typically located inside the fresh food compartment, fixtures hold slidable wire shelves, bins, crispers, and other removable storage accessories in precise positions.

Causes of a faulty fixture can include cracking or breaking of plastic rails from repeated impact or overloading. Clips and mounting attachments may also loosen over time.

Symptoms of a bad fixture include:

• Shelves, bins, and pans that no longer slide smoothly or feel insecure
• Storage accessories like crispers that tilt or are difficult to remove
• Interior rattles or banging noises coming from loose components

This replacement Bosch fixture returns stability and structure to the organization system. Realigning fixtures maintains consistent placement and secure engagement of accessories for tidy, accessible food storage.

Compatible with Thermador, Gaggenau, or Kenmore French door models utilizing consistent interiors.

This is an electrical on/off switch used to control power to an appliance circuit. It replaces a failed switch so controls respond normally and the appliance can be powered on and off safely. What it does

• Opens and closes an electrical circuit to enable or disable appliance power or a specific control function
• Commonly replaces a worn, stuck, or unresponsive switch that prevents controls or lights from operating
• Can resolve symptoms like no power to a control, intermittent operation, or a button that won't actuate
• Designed to mate with the appliance's existing wiring and mounting points

• One electrical on/off switch

• Disconnect power to the appliance at the breaker or unplug before working on wiring
• Verify proper wire locations and secure all terminal connections; replace only with the exact part specified by the manufacturer
• Handle the part carefully to avoid bending terminals or damaging the switch actuator

This halogen light bulb restores bright, reliable illumination in your appliance so you can clearly see the cooking area or interior. Replace a burned-out or flickering bulb to maintain visibility and safe operation. What it does:

• Provides illumination inside the appliance or over the cooking surface
• Replaces a failed halogen lamp to restore proper lighting
• Typical symptoms: light won't turn on, is dim or flickers, or works intermittently
• Helps you monitor food and check progress without guesswork

• 1 halogen lamp

• Disconnect power/unplug and allow the bulb and surrounding area to cool completely before service
• Access the lamp per your model's instructions; remove any lens or cover carefully
• Handle the new halogen bulb with gloves or a clean cloth; avoid touching the glass capsule
• Match the bulb type and rating specified for your model; do not exceed the rated wattage

This replacement control panel push button restores a missing, worn, or broken button on compatible Bosch appliance control panels. It gives a clean, user-friendly surface for reliably activating the associated function. What it does

• Replaces a damaged or missing control panel push button so the corresponding command can be selected.
• Restores a crisp tactile feel for a more reliable button press.
• Helps resolve symptoms like a loose, cracked, jammed, or visually missing button.
• Matches the original form for proper fit and operation when installed correctly.

• One replacement control panel push button.

• Disconnect power to the appliance before starting any work.
• Typically snap-fits or slides into the front control panel; use a non-marring pry tool if needed.
• Remove gently to avoid damaging the control panel or surrounding buttons; note orientation for reinstallation.

This push button is a direct-replacement control button used on compatible appliance control panels to restore a responsive, tactile control interface. Replaces worn, broken, or missing buttons so functions register correctly when pressed. What it does:

• Acts as the user interface actuator that completes the mechanical press action for a specific control.
• Restores proper tactile feedback and reliable engagement when selecting functions.
• Commonly replaced when a button is cracked, jammed, loose, or no longer registers presses.
• Helps eliminate intermittent or non-responsive button symptoms caused by damaged controls.

• Disconnect power to the appliance before beginning any work to avoid shock.
• Access may require removing the control panel or console.
• Remove the old button by gently levering or sliding it free; do not force or damage surrounding components.
• If necessary, retain any clips or springs from the original button and reuse with the replacement.

This replacement cover is a protective panel used on compatible Bosch appliances to shield internal components and maintain proper airflow and appearance. It restores the appliance's finished look and helps keep wiring and mechanisms protected. What it does:

• Protects internal components from dust, spills and incidental contact
• Helps maintain proper airflow and clearance around internal parts
• Restores a missing or damaged exterior/internal panel for a finished appearance
• Reduces risk of accidental contact with electrical or moving parts

• One replacement cover

• Installation may require removing access panels and/or disconnecting power—always unplug the appliance before servicing
• Use appropriate hand tools; avoid forcing tabs or fasteners to prevent breakage
• Keep screws and mounting hardware from the original part; replace only with identical fasteners if needed

This sensor monitors operating conditions inside the appliance and reports to the control so cycles run correctly and safely. When the sensor fails, the control may receive inaccurate feedback, leading to irregular performance. What it does:

• Detects key conditions inside the appliance and sends a signal to the control
• Helps the control regulate heat and cycle progress
• Failure symptoms can include erratic cycle times, poor heating performance, or sensor-related error messages
• Can prevent the appliance from starting or completing a cycle if readings are out of range

• 1 sensor

• Disconnect power before servicing; shut off water supply if applicable
• Access the sensor and note wire orientation before removal
• Ensure any sealing surface is clean and the sensor is seated properly; check for leaks after reassembly where applicable
• Run a diagnostic or test cycle after installation to clear errors and verify operation

This NTC temperature sensor monitors internal temperature and sends precise resistance signals to the control, allowing accurate heating and cycle management. Replacing a faulty sensor restores proper temperature regulation and consistent performance.

• Senses temperature changes and varies resistance (NTC) for the control
• Helps regulate heater operation and overall cycle timing
• Can lead to extended/shortened cycles or premature shutdown
• May trigger temperature-related error codes

• Disconnect power before servicing; shut off water supply if applicable
• Note connector orientation and wire routing; transfer any retainers or seals from the old sensor if needed
• Seat the sensor fully in its pocket/bracket and route wiring away from hot or moving parts
• Restore power and run a test/diagnostic cycle to confirm proper operation

This water inlet valve controls water flow into the appliance, restoring proper fill and preventing unwanted leaks. Replacing a faulty inlet valve returns normal water supply and helps the appliance fill reliably. What it does:

• Opens and closes the water supply to the appliance when a cycle calls for water
• Stops water flow when the fill is complete to prevent overfilling
• Common symptom: appliance won't fill or fills slowly
• Common symptom: continuous or intermittent leaking near the inlet area
• Works with the appliance's control signals to regulate fill volume

• Disconnect power and shut off the water supply before starting any repair
• Drain residual water from hoses and fittings to avoid spills
• Inspect and replace any worn inlet hoses or seals when replacing the valve

This temperature limiter safeguards the evaporator defrost heater by opening the circuit if temperatures rise too high. Replacing a failed limiter restores defrost safety and helps prevent frost buildup and inconsistent cooling performance.

• Protects the defrost circuit by cutting power to the evaporator heater when an over-temperature condition is detected
• An open/failed limiter prevents the heater from energizing, causing frost accumulation on the evaporator and warm refrigerator temps
• Designed to be installed in the original location and orientation for accurate temperature sensing

• Disconnect power before servicing; evaporator fins and sheet metal are sharp—use cut-resistant gloves
• Access the evaporator compartment and note the limiter's original mounting and wire routing before removal
• Transfer any clips/insulation sleeves and reconnect wiring to the same terminals; do not bypass this safety device
• Reassemble, restore power, and monitor for normal defrost operation
