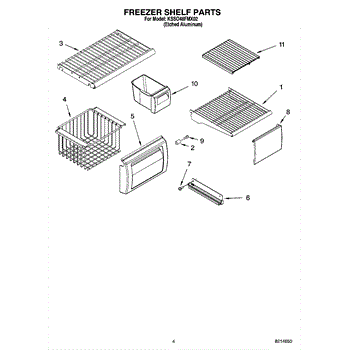

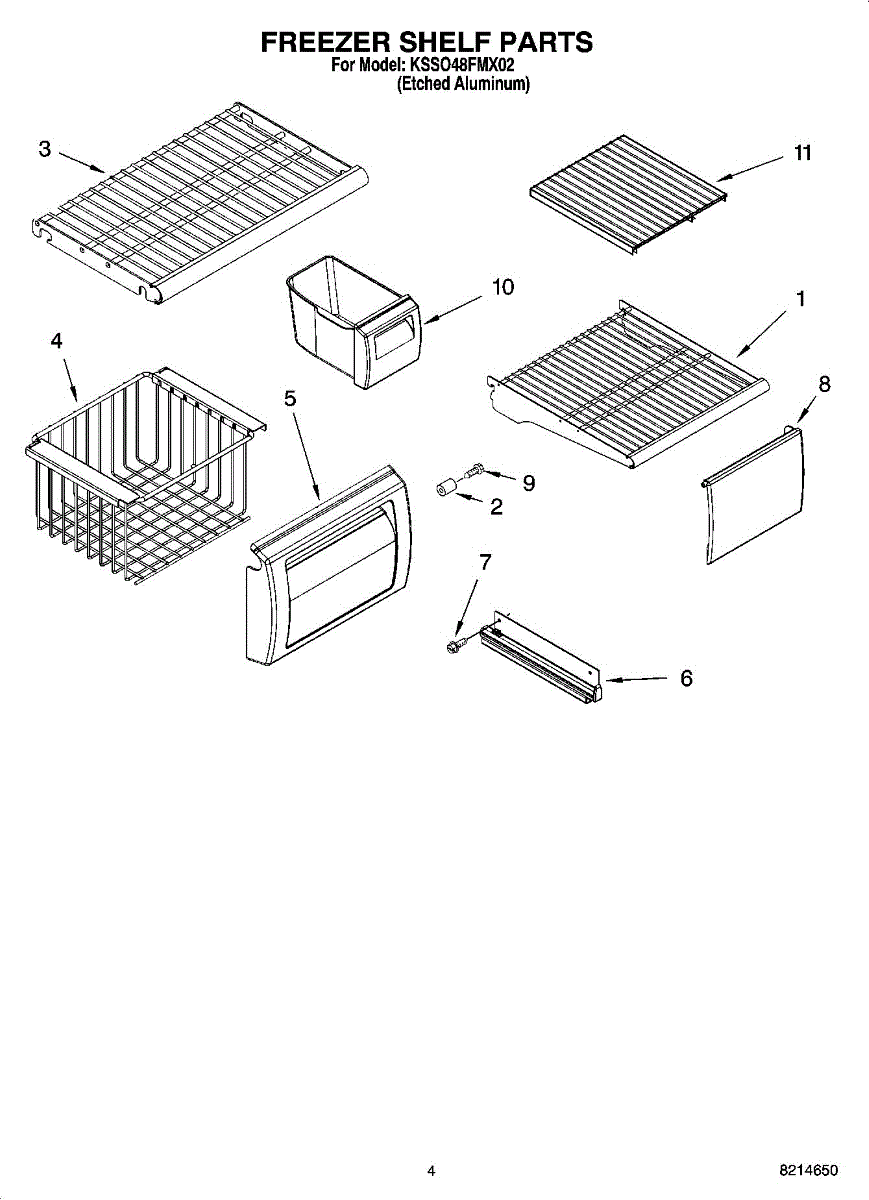

Parts for Kitchenaid KSSO48FMX02: 03 - Freezer Shelf Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This basket front replaces the plastic panel on the front of a freezer wire basket. It restores a solid barrier so food stays contained and helps the basket slide in and out smoothly.

• Attaches to the front of the freezer wire basket to create a secure face
• Helps prevent items from falling out of the basket
• Replaces cracked, warped, or missing fronts
• Can improve basket handling and alignment when opening/closing

• Unplug the refrigerator before servicing
• Remove the basket from the freezer and place on a flat surface
• Release the damaged front and align the new front with the basket wires; press until fully seated
• Reinstall the basket and verify smooth operation

Right hand side

Left hand side

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages

The Compartment Door is an OEM part for Whirlpool refrigerators. It serves as the cover that provides access to the automatic ice maker for easy ice removal.

The ice maker compartment door plays a vital role in maintaining optimal temperature levels inside the freezer. It helps prevent warm air from entering the compartment when open, protecting freezer burn and minimizing energy loss. Proper sealing also assists the refrigerator in its efficient ice creation process.

Symptoms of a bad door include:

• Warping or cracking of the door surface
• Difficulty opening and closing smoothly
• Inability to latch and seal properly
• Excessive frost or ice buildup near the door seals

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1 1/4 inch.

This ice bucket assembly is the replacement ice storage bin for the freezer ice maker system. It catches, stores and guides produced ice so you can access and dispense ice reliably. What it does:

• Stores and contains ice made by the automatic ice maker
• Guides ice toward the dispenser/auger area for proper dispensing
• Prevents ice from spilling into the freezer compartment
• Helps avoid ice jams and loss of usable ice when cracked or damaged

• Disconnect power to the refrigerator before any service to avoid injury
• Remove any remaining ice and slide out the old bucket before installing the replacement
• Handle the bucket carefully to avoid cracking plastic or damaging trim; ensure it seats fully in the guides
• If the ice maker or auger components are damaged or the dispenser still malfunctions after installing the bucket, inspect related parts.
