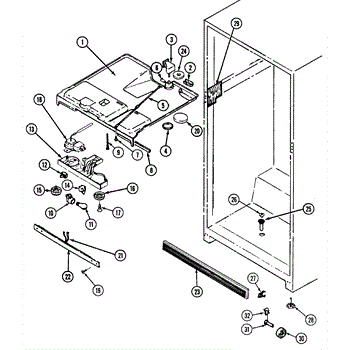

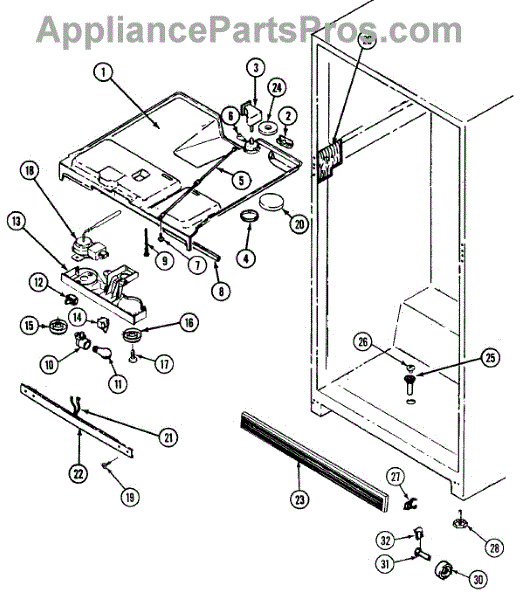

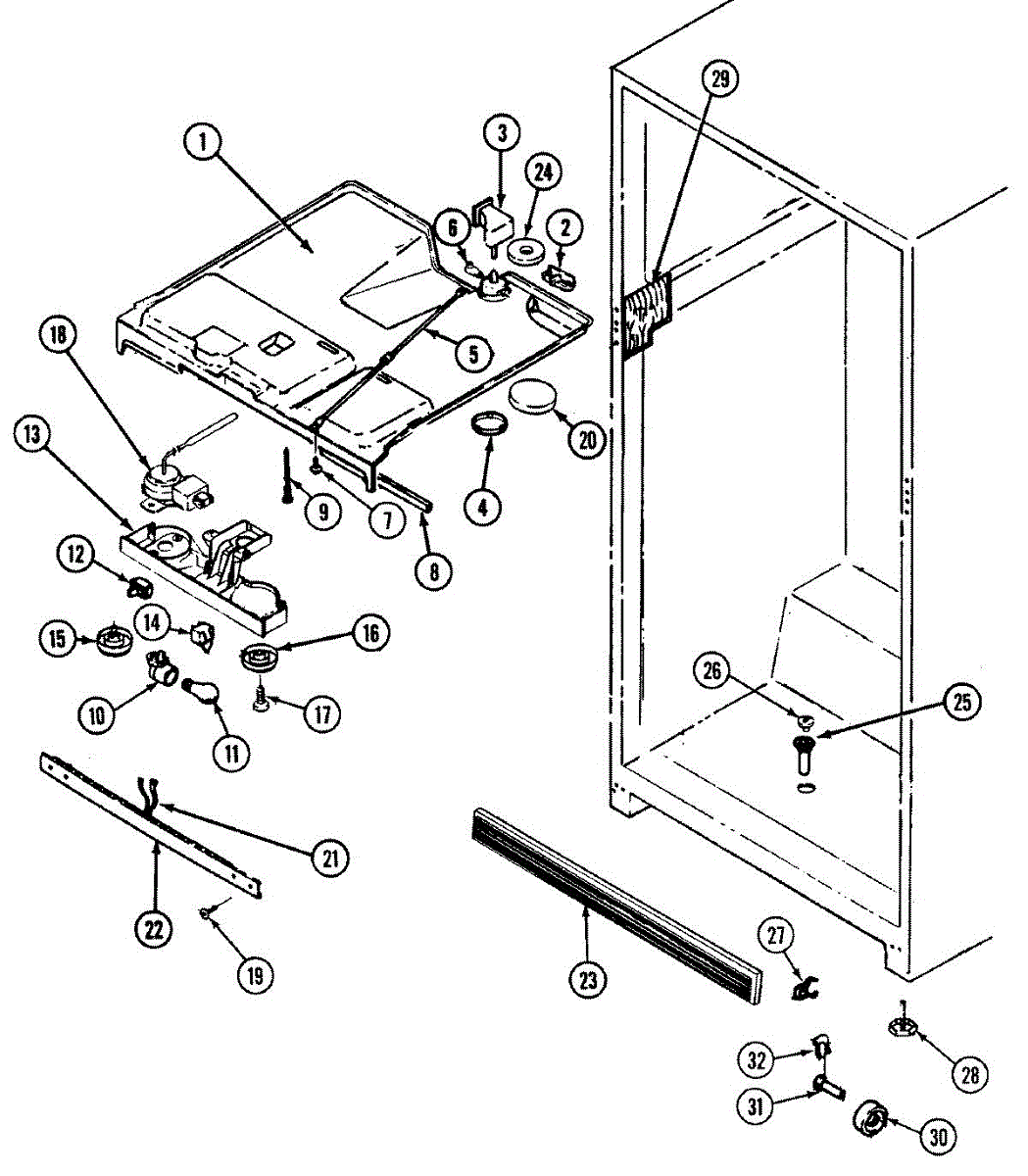

Parts for Magic Chef RB150RLW: 02 - Fresh Food Compartment Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This is a replacement control knob for the freezer temperature control shaft. It restores a secure grip and clear detent positions so you can set the freezer temperature easily. What it does:

• Replaces a cracked, worn or missing freezer temperature control knob
• Provides a firm grip and visible setting position for accurate adjustment
• Allows the control shaft to turn and stay at selected settings
• Helps resolve symptoms like a loose, spinning or non-engaging knob

• Disconnect power to the appliance before attempting replacement
• Pull the old knob straight off the control shaft; align and push the new knob fully onto the shaft until it seats
• If resistance is felt, stop and inspect the shaft and knob for debris or damage before forcing
• If the control shaft is damaged or the knob does not secure properly, replace the control.

Replacement cold control that restores temperature regulation in compatible refrigerators. Installs behind the temperature knob to control compressor cycling, helping stabilize interior temperature and stop constant running or temperature swings. What it does:

• Regulates refrigerator temperature by switching compressor/fan operation on and off.
• Replaces a failed temperature control that causes inconsistent cooling or interior temps that are too warm or too cold.
• Can stop issues like the compressor running continuously or frequent temperature fluctuations.
• Works with compatible refrigerator control housings and knobs.

• Disconnect power before replacing the control to avoid shock or injury.
• Note wire locations and knob orientation before removing; reconnect wires to the same terminals.
• Handle the control carefully and avoid bending or stressing mounting tabs and contacts.
• After installation, restore power and verify proper cycling and temperature stabilization.

One inlcuded. Two required per kickplate.

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level
