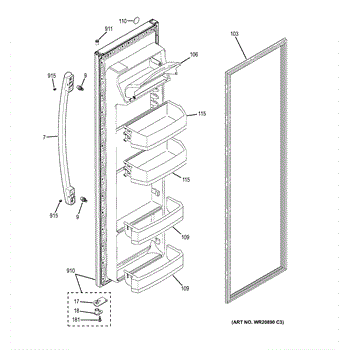

Parts for Ge GSS20ESHCSS: Fresh Food Door Parts

The Arc Handle is an OEM part for GE refrigerators. It is designed to provide a sturdy and ergonomic grip for opening and closing the refrigerator door. The handle measures approximately 34 inches long by 2 inches wide.

Causes of a bad arc handle can include wear and tear from frequent use, accidental impacts, or stress from excessive force. A faulty handle can compromise the convenience and safety of using the refrigerator.

Symptoms of a bad Arc Handle include:

• The handle feeling loose or wobbly
• Cracks or visible damage on the handle
• Difficulty in opening or closing the door
• The handle detaching from the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Handle fastener secures the appliance handle to the door or drawer, restoring a stable, tight fit. Replace a missing or loose fastener to stop the handle from wobbling or detaching during normal use. What it does:

• Secures the handle to the appliance door or drawer so the handle stays tight and stable.
• Replaces missing, stripped, or damaged handle screws/fasteners.
• Stops handle wobble and reduces the chance the handle will come off when pulled.
• Use when the handle feels loose, moves excessively, or falls off.

• Use the correct screwdriver or nut driver and hold the handle in position while tightening.
• Tighten until snug but do not overtighten; excess force can strip threads or crack plastic.
• If the handle is part of an electrical or sealed assembly, disconnect power and follow manufacturer service instructions before servicing.
• Refer to your appliance owner's manual or OEM instructions for model-specific placement and fastening details.

The Upper Fresh Food Door Cam Riser is an OEM part for GE refrigerators. It is designed to support the upper portion of the fresh food compartment door, ensuring smooth and aligned operation when opening and closing. This part reduces wear on the door hinge and helps maintain the door seal's effectiveness, contributing to better energy efficiency and prolonged refrigerator performance.

Causes of a bad door cam riser can include mechanical wear from repeated use, stress fractures from excessive weight on the door, or improper alignment during installation or use, leading to uneven load distribution.

Symptoms of a bad Upper Fresh Food Door Cam Riser include:

• Squeaking or other noises when opening or closing the refrigerator door
• Difficulty in keeping the door aligned or closed
• Increased effort required to open or close the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

10-32 F HXW 3/4 S

This top-closed thimble is a small protective plug that presses into a cabinet opening to cap and finish the hole, helping prevent abrasion and limiting air or moisture leaks for reliable appliance performance.

• Caps and seals an unused hole/opening in the liner or cabinet
• Shields edges to help protect nearby wiring or tubing from chafing
• Helps reduce drafts and moisture migration that can contribute to frost, condensation, or temperature swings
• Replace if cracked, brittle, loose, missing, or if you notice gaps or rubbing noises

• Disconnect power; if applicable, turn off the water supply
• Access the opening, remove the old thimble/plug, and clean the area
• Align and press the new thimble into the hole until fully seated and flush; avoid pinching wires or tubing
• Restore power/water and verify a snug fit

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads
