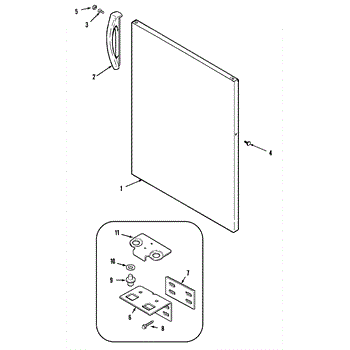

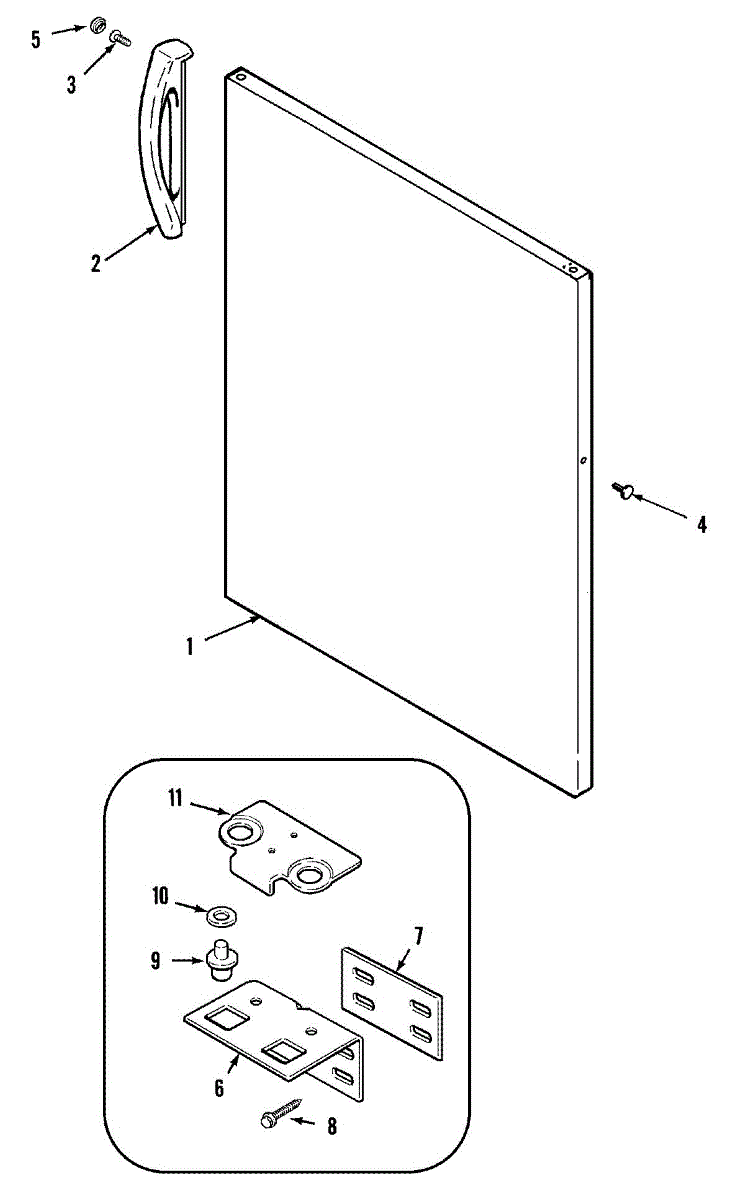

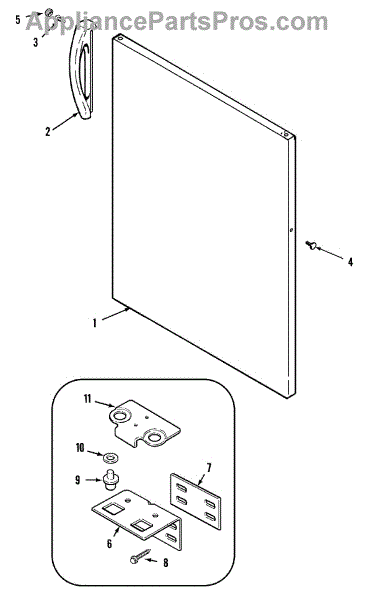

Parts for Magic Chef CTF1722GRW: 08 - Fresh Food Outer Door Parts

This lower hinge pin is the pivot shaft for your refrigerator door. Replacing a worn or bent pin restores smooth movement and proper alignment so the door seals and closes correctly while reducing hinge noise.

• Serves as the pivot point between the door and the lower hinge bracket
• Helps maintain door height and alignment for an even gasket seal
• Wear or damage can cause door sagging, rubbing, squeaking, or inconsistent closing
• Replacing the pin can restore smooth swing and reduce wobble at the hinge

• Disconnect power; remove items from the door. Support the door and remove the upper hinge to lift the door off the lower hinge.
• Replace the lower hinge pin on the hinge/bracket, reusing any model-specific washers or bushings.
• Reinstall, level, and align the door so the gasket seals evenly; verify smooth swing and positive closure.

This hinge supports and pivots the washer lid so it opens and closes smoothly. Replacing a worn or broken hinge restores proper alignment and helps the lid close securely without binding or rubbing.

• Provides the pivot point for the lid to open and close
• Keeps the lid aligned with the top panel
• Wear symptoms include wobble or sagging, squeaks, binding, or visible cracks/bending
• Misalignment may prevent the lid switch/latch from engaging properly

• Unplug the washer before servicing; have a helper support the lid
• Remove the mounting screws, noting hinge orientation for reassembly
• Transfer and reuse original screws/trim as applicable; do not overtighten
• Test lid alignment and operation before fully tightening the fasteners
