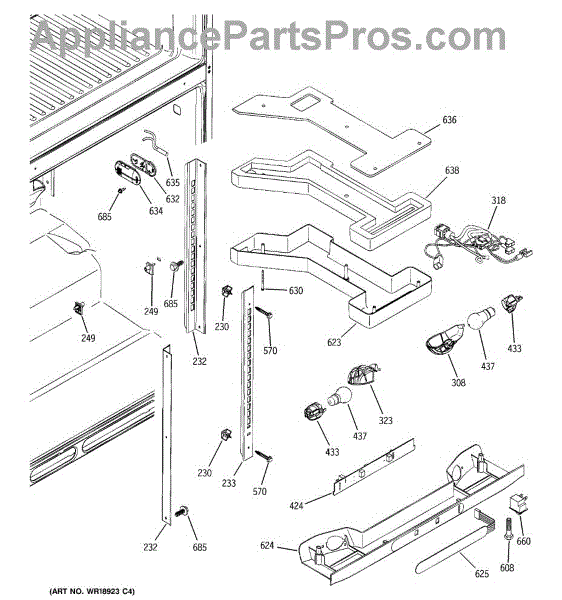

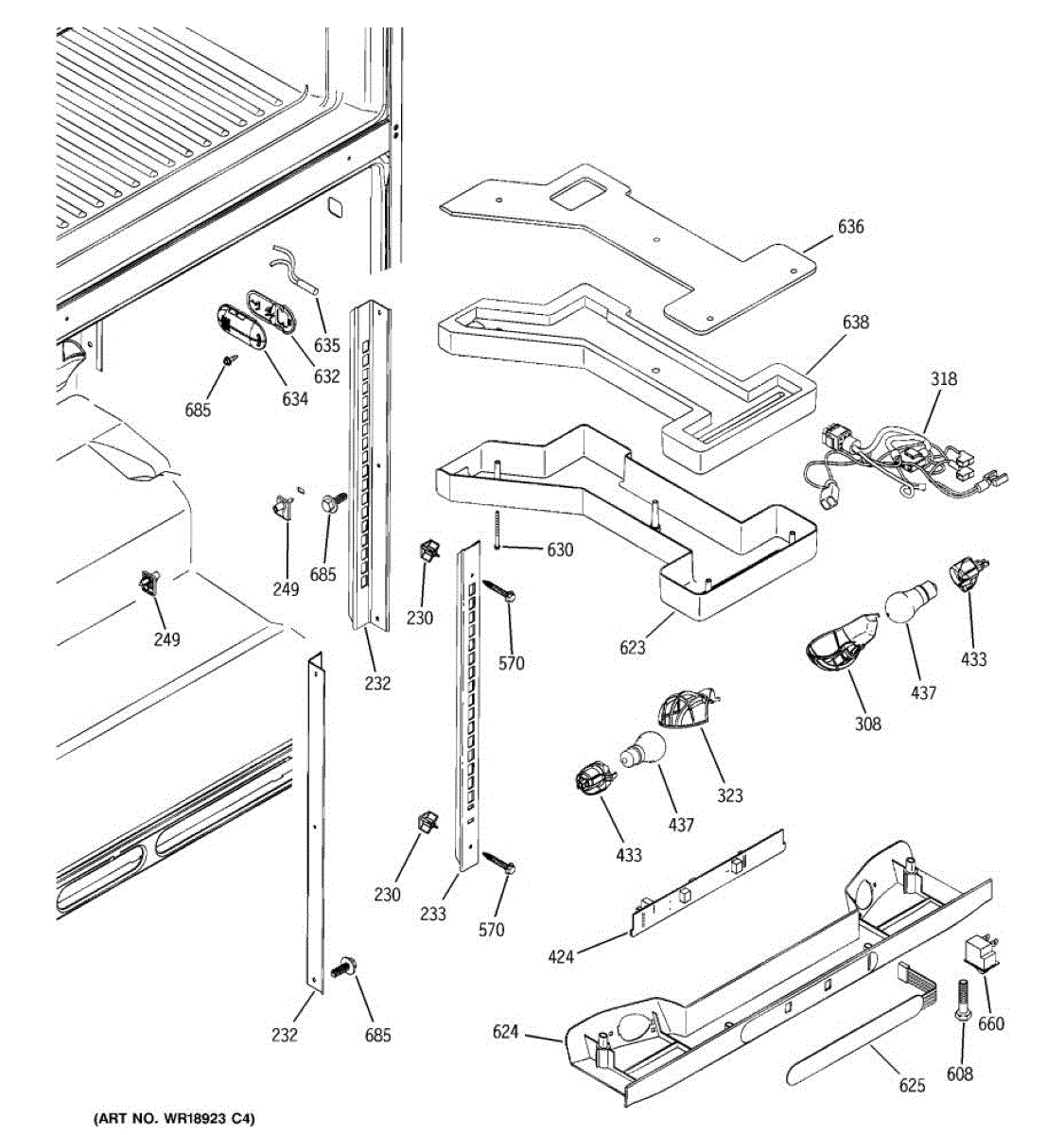

Parts for Ge GTY22SBBJRSS: 05 - Fresh Food Section Parts

This vegetable pan support assembly holds and guides the crisper/vegetable drawer so it opens smoothly and keeps the cover/shelf above level. Replace a damaged support to restore proper drawer alignment and prevent sagging or sticking. What it does:

• Supports the crisper/vegetable drawer and the cover/shelf it rides on
• Maintains level alignment to reduce binding, scraping, or tipping
• Provides a stable track point for smooth drawer movement
• Common symptoms: drawer tilts, binds, or falls; shelf sags; visible cracks or broken tabs on the support

• 1 vegetable pan support assembly

• Unplug the refrigerator before servicing
• Remove the crisper drawer and cover/shelf to access the support
• Match the new support's orientation to the original; transfer any reusable hardware if applicable
• Seat the support fully and securely before reinstalling the cover/shelf and drawer; test drawer travel

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This silicon controlled rectifier (SCR) is an electrical control component used to regulate power in appliance circuits, helping control heating and motor circuits for reliable operation. What it does:

• Acts as a semiconductor switch to control current flow in a circuit
• Enables precise switching of power to heating elements or motors
• Can prevent uncontrolled power delivery when functioning correctly
• Faulty SCRs may cause intermittent operation, no power to a circuit, or erratic heating/motor behavior

• Disconnect all power before servicing; risk of shock or damage
• Handle as an electrostatic-sensitive device; avoid touching leads or terminals directly
• Verify mounting orientation and secure all connections per appliance wiring diagrams

This membrane setpoint control is the searchable keypad overlay used to select temperature setpoints and cycle options on compatible GE appliances. It restores a responsive control surface and clear button labels for normal operation. What it does:

• Provides the user interface keys for selecting temperature and control setpoints.
• Transmits button presses to the appliance control so settings change as expected.
• Helps resolve unresponsive, worn, or faded keypad buttons and incorrect or missing setpoint entries.
• Replaces damaged overlays that allow moisture or debris to interfere with button contacts.

• One membrane setpoint control keypad overlay.

• High-level replacement: typically peels off and presses into place or mounts with clips; handle gently to avoid tearing.
• Disconnect power before starting and follow manufacturer service instructions to access the control assembly.
• Avoid touching conductive contacts; keep area clean and dry during installation.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
