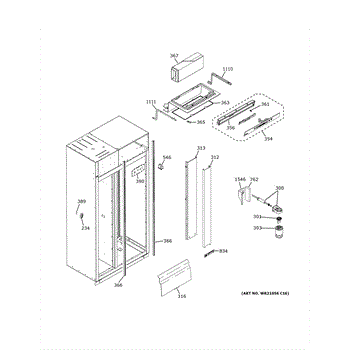

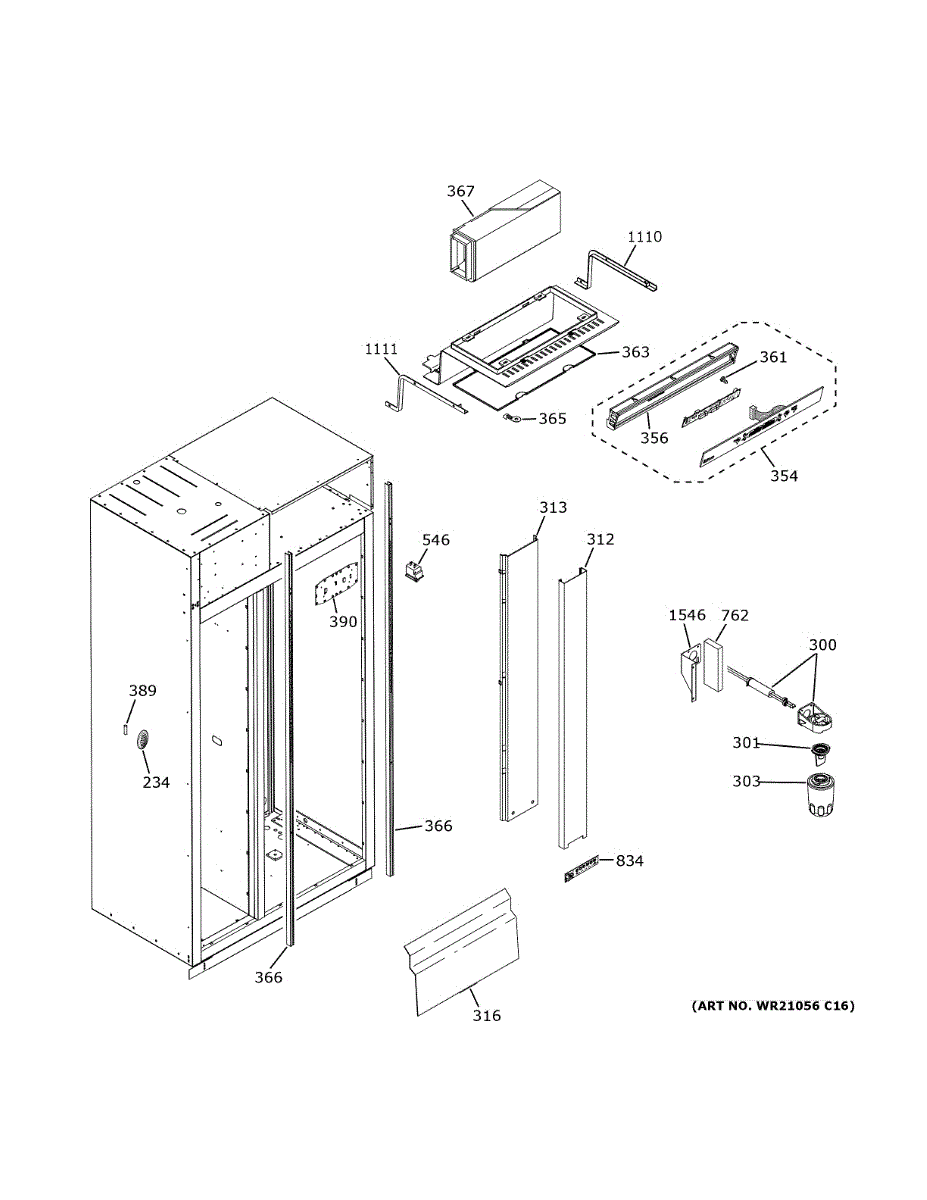

Parts for Ge CSB48WP2NES1: Fresh Food Section Parts

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water filter manifold is the assembly the MWF cartridge locks into, sealing the connection and routing water through the filter to your dispenser and icemaker. Replacing a worn manifold can stop leaks and restore normal water flow. What it does:

• Holds and seals the MWF water filter cartridge
• Directs filtered water to the dispenser and icemaker
• Can help resolve leaks at the filter head, slow/low flow, or no water/ice
• Addresses issues where the filter won't seat or keeps popping out

• 1 water filter manifold assembly

• Unplug the refrigerator and shut off the water supply; dispense water to relieve pressure
• Keep a towel handy for residual water and take photos to note tube routing before removal
• Fully seat tubing and connections during reassembly; ensure the filter locks in securely
• Restore water and power, then check for leaks and run water to purge air

The MWF Bypass is an OEM replacement part for GE refrigerators. Located within the bottom freezer compartment, the metal water filter bypass fitted assembly is responsible for directing filtered or unfiltered water flow to the ice maker and dispenser.

Causes for replacement may include faulty diverter components obstructing water flow to selections or resulting in water leaks.

Symptoms of a problematic bypass unit include:

• Inability to select filtered or unfiltered water from the dispenser
• Ice maker failure due to lack of water or poor water quality
• Mineral deposits accumulating on internal parts from unfiltered water

This OEM replacement bypass is compatible with GE, Hotpoint, and Profile model refrigerators.

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This temperature control board and housing regulates the refrigerator's temperature circuits and provides the mounting enclosure for the control electronics, restoring reliable temperature control and display operation. What it does:

• Controls temperature sensing and user-interface signals for the fridge control system
• Switches cooling cycles and coordinates defrost/timing functions as part of the control electronics
• Resolves intermittent temperature readouts, failure to cool, or unresponsive controls when faulty
• Replaces a damaged board or cracked housing that can cause poor connections or exposed circuitry

• Disconnect power before starting; verify unit is fully de-energized to avoid shock or damage.
• Handle the board by edges and avoid touching components to prevent ESD damage.
• Confirm connector alignment and secure mounting; do not force the housing into place.

The Air Damper Foam Assembly is an OEM part specifically designed for GE refrigerators. It attaches inside the refrigerator door and plays a vital insulating role.

The foam assembly features a retractable damper gasket surrounded by mounting foam. When the door closes, this forms a critical barrier that reduces air exchange between the refrigerator's interior and exterior environments. Proper insulation helps maintain consistent temperatures and minimize condensation.

Symptoms of a failing assembly include:

• Inability to retain optimal interior temperature levels
• Visible gaps or tears in the damper sealing foam
• Foam detachment from supporting door panels

This occurs from normal compression during regular door use. Replacing with a new OEM GE foam assembly restores dependable insulation and seals out temperature variances. Compatible with brands such as Hotpoint, RCA, or Kenmore side-by-side models as well.


The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This Top LED board is the interior illumination module that provides the fridge's top-area lighting, restoring clear, even light for food visibility and convenience. What it does:

• Replaces a failed or dim top-area LED lighting assembly
• Restores even, bright interior illumination when lights flicker, are dim, or won't turn on
• Connects to the refrigerator's existing wiring harness and mounts under the top interior panel
• Works with the refrigerator's door/light switch to turn lights on and off as designed

• Disconnect power to the appliance before starting any repair
• Remove interior top trim/panel to access the board; handle the PCB and LEDs by the edges
• Unplug the wiring connector before removing the fasteners; install the new board in reverse order

This is a replacement rocker-style light switch that restores interior appliance lighting control so lights turn on and off reliably. Designed to match OEM fit and function for compatible GE appliances. What it does

• Replaces a worn or failed rocker light switch so the interior light responds correctly
• Common fix when the light stays off, flickers, or only works intermittently
• Provides the same on/off switching action and terminal connections as the original
• Works with the appliance's existing wiring and mounting locations

• One rocker-style light switch

• Disconnect power to the appliance before starting — unplug or turn off the circuit breaker
• Remove only the panels necessary to access the failed switch; keep track of fasteners and wire positions
• Confirm wiring and switch orientation match the old switch; labeling photos can help during reassembly

This tower LED is the refrigerator interior light assembly that restores bright, even illumination inside the fresh-food compartment for easy visibility of contents. What it does

• Replaces a failed or dim interior LED tower to restore normal lighting inside the refrigerator.
• Provides bright, consistent illumination and reduces dark spots in the fridge cavity.
• Commonly used when interior light does not turn on, flickers, or is noticeably dim.
• Connects to the existing wiring harness and mounts in the light cavity/panel.

• One tower LED interior light assembly.

• Disconnect power to the appliance before attempting any service.
• Remove shelves or panels as needed for access; keep small parts and fasteners organized.
• Handle the LED assembly and connector carefully to avoid damage; do not force or bend the housing.
