Frigidaire 316455461 Clock/Timer (Electronic Oven Control) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Range / Cooktop / Oven Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 316455461 replaces AP3963518, 1197183, 318003903, AH1528272, EA1528272, PS1528272.

Description

This clock/timer is the range's electronic oven control. It manages the bake and broil circuits using temperature-sensor feedback and provides the digital clock and timer, restoring proper heating performance and a readable display when the original control fails.

• Controls power to bake and broil elements/ignitors to reach and hold the set temperature
• Displays clock, timer, and oven status on the front panel
• Receives keypad inputs to start/stop and adjust oven cycles
• Typical failure signs: blank or dim display, unresponsive controls, error codes, oven will not heat or maintain temperature

What's included: 1 electronic clock/timer control board. Install notes:

• Disconnect power at the breaker before servicing; this control carries live voltage

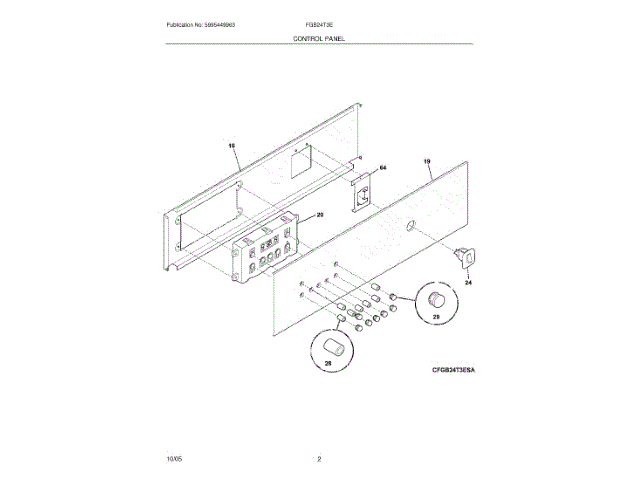

• Access the control from the backguard/control panel; remove the rear cover to reach mounting screws and connectors
• Photograph or label all wire harness connections; transfer any brackets and install the new board in the same orientation
• Handle electronics by the edges and protect from static discharge; set the clock after reassembly and test oven functions

Tip: If problems persist after replacement, check the oven temperature sensor and the heating elements/ignitor for proper operation.
