Frigidaire 316560127 Oven Control Board (Clock/Timer) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Range / Cooktop / Oven Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 316560127 replaces AP5325528, 2026245, AH3504421, EA3504421, PS3504421.

Description

This electronic oven control board manages the oven's heating, keypad inputs, and display. Replacing a failed controller can restore responsive controls, accurate temperature regulation, and normal oven operation.

• Controls bake and broil heating through the oven's relays
• Interprets keypad inputs to start/stop modes, timers, and settings
• Drives the display for time, temperature, and status; may post fault codes
• Coordinates preheat, timed cook, and self-clean on applicable models
• Failure symptoms may include a blank or erratic display, unresponsive buttons, oven not heating or starting, inaccurate temperature, or beeping/error codes

What's included: 1 electronic control board Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing

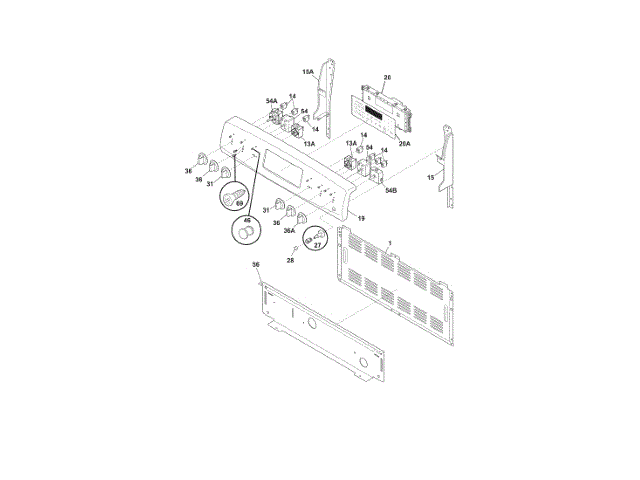

• Access the board behind the control panel/backguard on most models
• Move wire connectors one at a time from the old board to the new; take photos for reference
• Handle the board carefully and avoid static discharge to protect sensitive components
