Frigidaire 5304503761 Control Board OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 5304503761 replaces AP5989180, 316560170, 5304503990, A01519111, 4378725, PS11731809.

Description

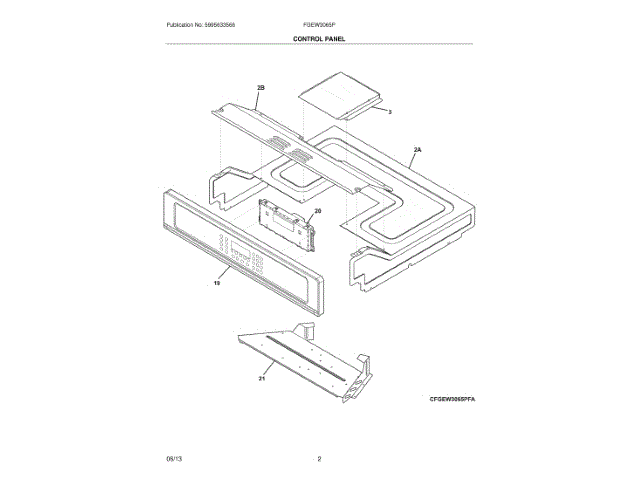

This OEM part is an oven control board. The oven control board is the main circuit board that controls the ovens' essential functions. If the oven isn't heating properly, not turning on, or showing an error code on the digital display, it might be time to replace the control board. Replacing a control board may seem like a difficult task, but it is actually a relatively simple process.First, make sure to unplug the oven. Move the appliance away from the wall to gain access to the back of the range. Remove the upper back panel, and locate the control board. Take note of the order of the wires using a phone camera. Then detach the wire harness from the old control board. Remove any individual wires with needle-nose pliers. Then re-attach the wires to the new control board in the correct terminals. Snap the new control board into place and re-install the upper back panel of the range.This authentic replacement part is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand ovens.
