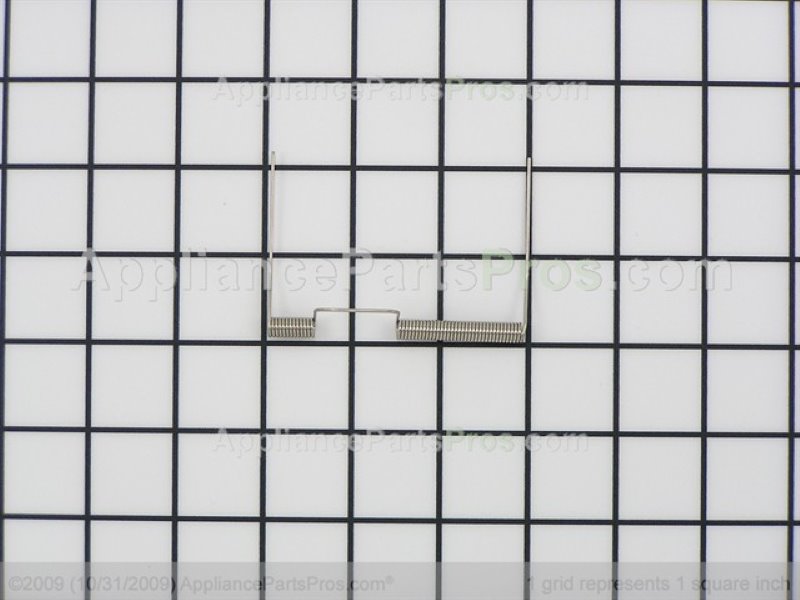

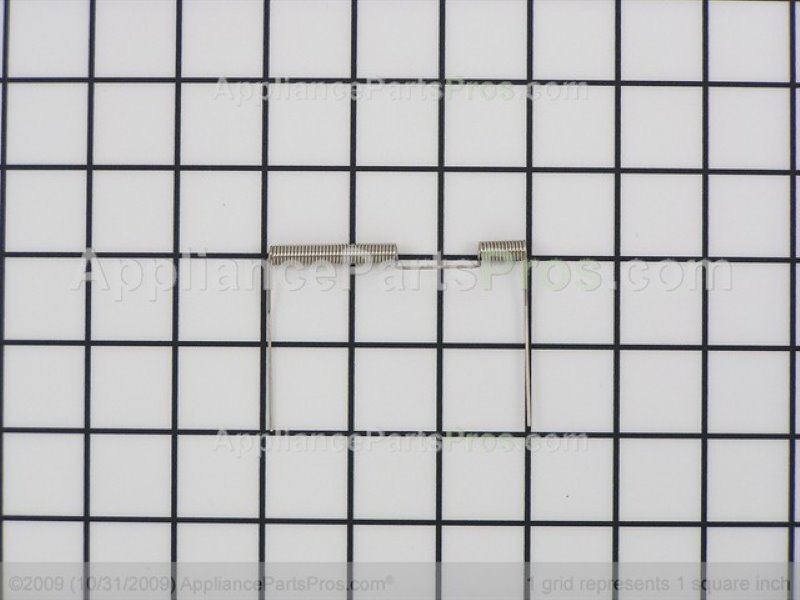

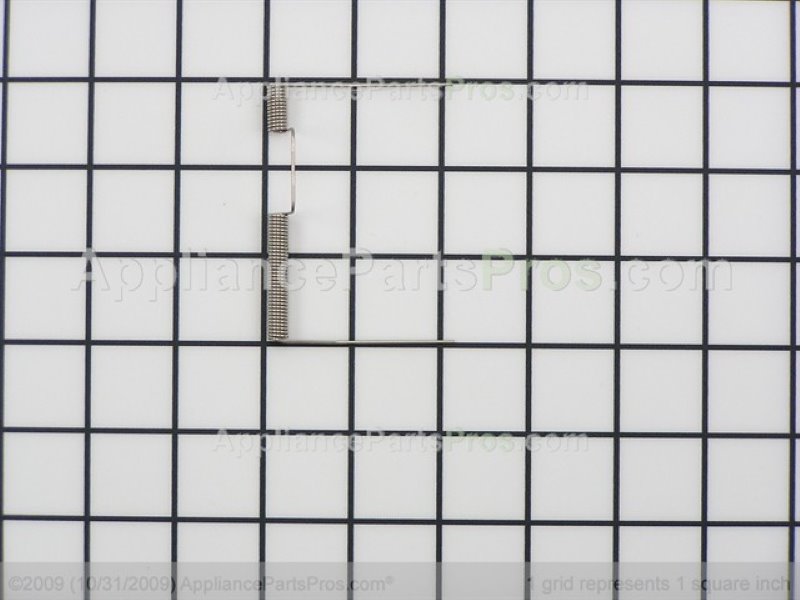

Frigidaire 241688901 Refrigerator Dispenser Ice Door Return Spring OEM Part

I wasn't sure if it was the door being warped, the spring return being worn, or the rotary damper failing, so I ordered all to update the door mechanism. I also ordered a new micro switch since one of the switches had started to require more and more pressure to actuate. Figured I'd fix it at the same time. Repair was very straightforward and the videos available on this and other repair sites were very helpful. I found a video that showed replacing the door mechanism on a nearly identical model to my fridge, and it helped with all aspects of the repair. Only minor issue I had on my model was that the water supply line was VERY short and the hole was very tight. I solved this by extending the line with a slightly smaller diameter tubing. I was able to slide the smaller tubing into the old one, and then feed that through the opening. Will make any future repairs much easier. And, the results are fantastic - since I replaced it all, I don't know what part was failing, but now I get that satisfactory 'thump' sealing noise on the ice door, and visual inspection shows no air leakage.

Completed

Ordered spring, changed the old one , fowled the instruction on the internet for my refrigerator, even it wasn't the exact one but managed it do it , this is my First time to fix this , thanks for your the help vedeo. I will use this company whenever I need, highly recommend it.

With the necessary parts in hand from Appliance Parts Pros. By watching youtube, we saved CONSIDERABLE $ in repair/service calls.

I took apart that area & noticed that the ice dispenser door bracket had broken on 1 side. This wouldn't allow it to open & close properly. I replaced the ice door bracket & just to be on the safe side I also replace the spring. This really made this 18yr old frig ice dispenser work like brand new. I also replace the freezer basket hanger because it had also broke on 1 side. Now its all in like-new condition
