Frigidaire 241941004 Refrigerator Compressor Starter, 1-Pack OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Refrigerator Relay, Overload, Capacitor.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 241941004 replaces AP4587430, 1793064, 241527807, 241527808, AH3408514, EA3408514, PS3408514.

Description

This refrigerator compressor starter is the start device that plugs onto the compressor terminals. It briefly energizes the start winding so the compressor can start reliably, helping restore cooling when the original starter fails. What it does:

• Engages and then disengages the compressor's start winding during startup
• Mounts directly on the compressor pins under the terminal cover
• Common symptoms of a failed starter: not cooling, rapid clicking/humming from the compressor area, compressor hot but not running, or intermittent starts

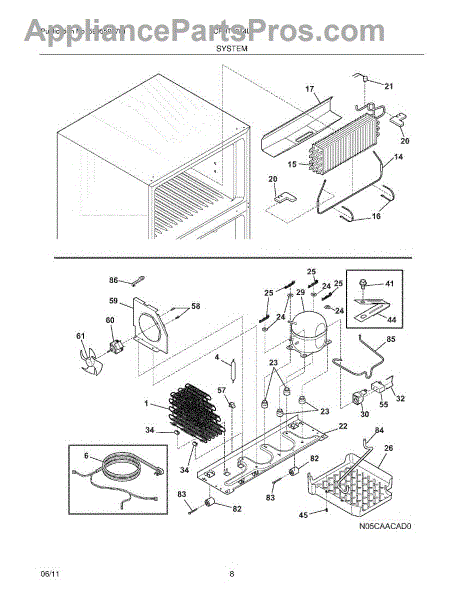

• Replaces the original start device specified in your model's parts diagram

What's included:

• 1 compressor starter

Install notes:

• Disconnect power before servicing; pull the unit out to access the back panel
• Remove the compressor terminal cover; note/photograph wire positions and orientation
• Pull off the old starter; inspect the overload and wiring for heat damage
• Align with the compressor pins and press on firmly; reinstall the cover and restore power
