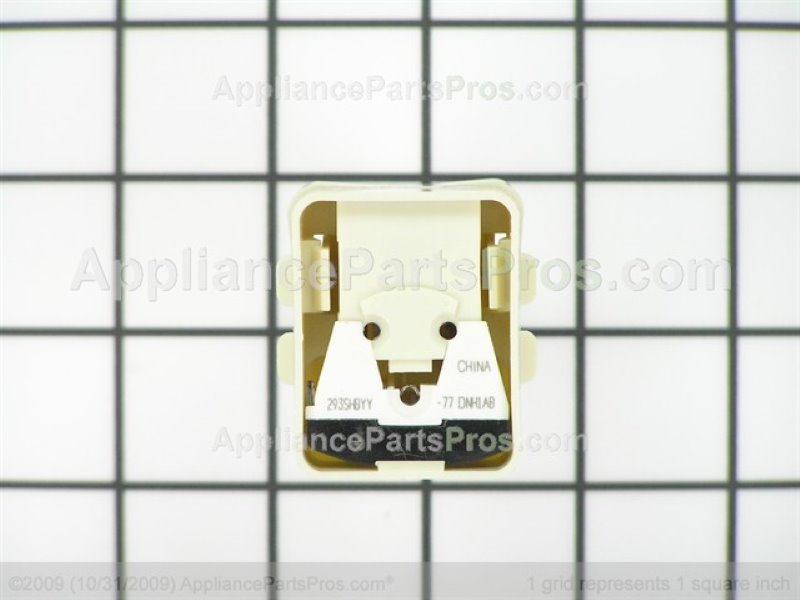

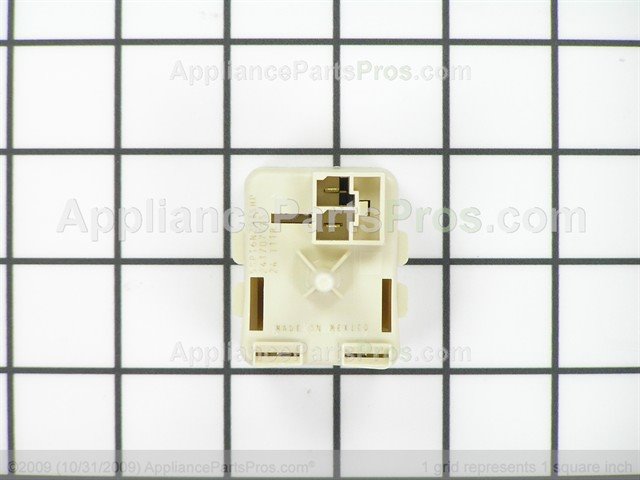

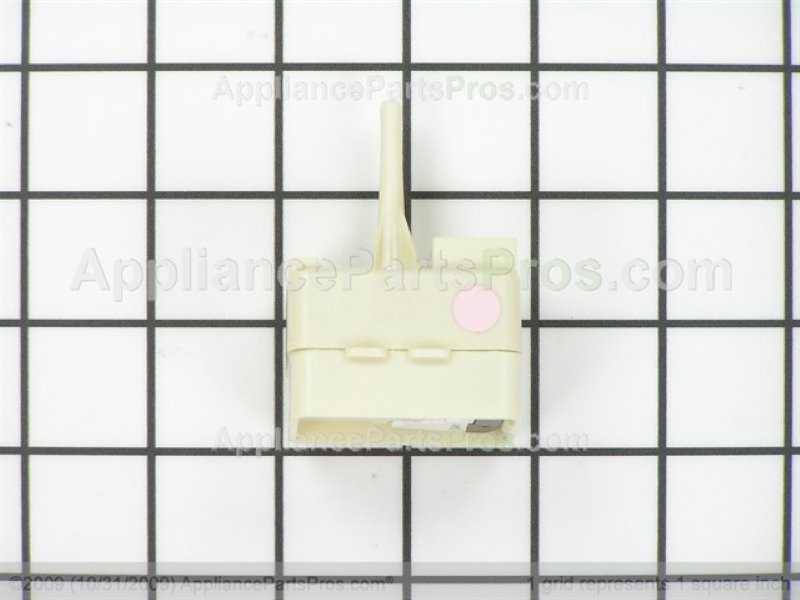

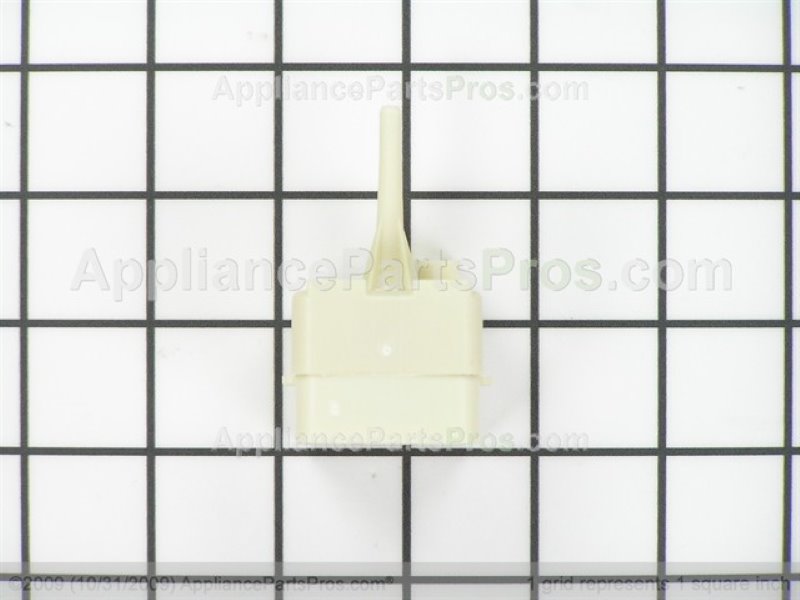

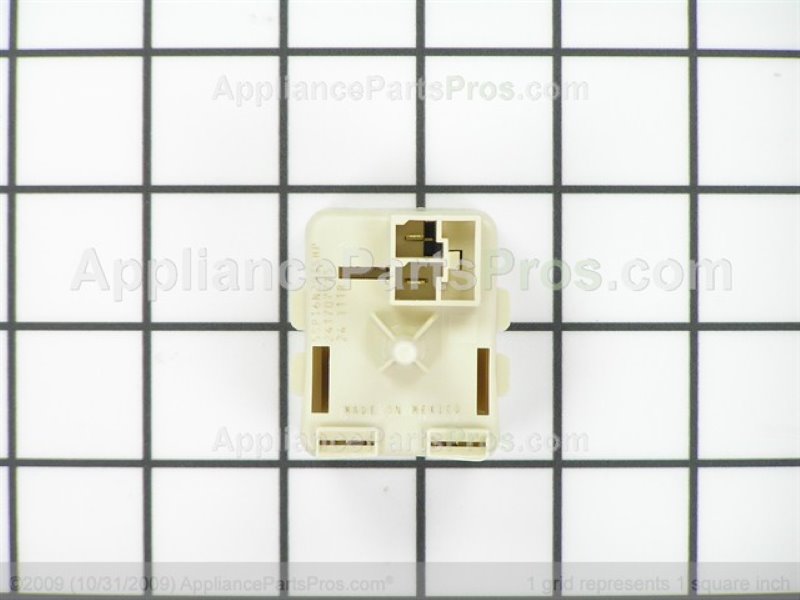

Frigidaire 241707715 Compressor Start Device (Ptc) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Refrigerator Compressor & Sealed System and Refrigerator Relay, Overload, Capacitor.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 241707715 replaces AP4339166, 241707702, 1465195, AH2331559, EA2331559, PS2331559.

Description

This compressor start device briefly energizes the compressor's start winding to get it running, then disengages automatically. Replacing a weak or open PTC can restore cooling and stop the repeating hum-click from the compressor area.

• Provides the initial boost for the compressor to start, then opens as the PTC warms
• Helps the compressor start reliably on each cooling cycle
• Works with the compressor's overload protector to safeguard the motor circuit
• Common symptoms of failure: not cooling, compressor won't start, rapid clicking or hum-click every few minutes, intermittent cooling after power cycling

What's included: 1 PTC compressor start device Install notes:

• Disconnect power and pull the unit forward to access the compressor compartment
• Remove the start-device cover; note wire positions
• Pull the old start device straight off the compressor terminals; avoid bending the pins
• Align the new device with the C–S–R terminals in the same orientation, push on fully, reconnect wires, reinstall cover, and restore power
• Inspect the mating overload protector and terminal connectors for heat damage before reassembly
