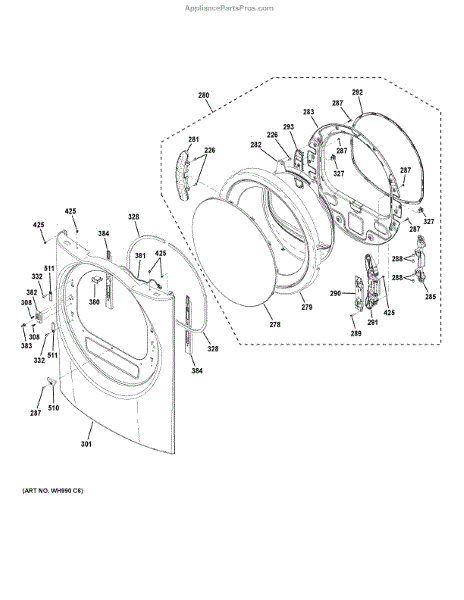

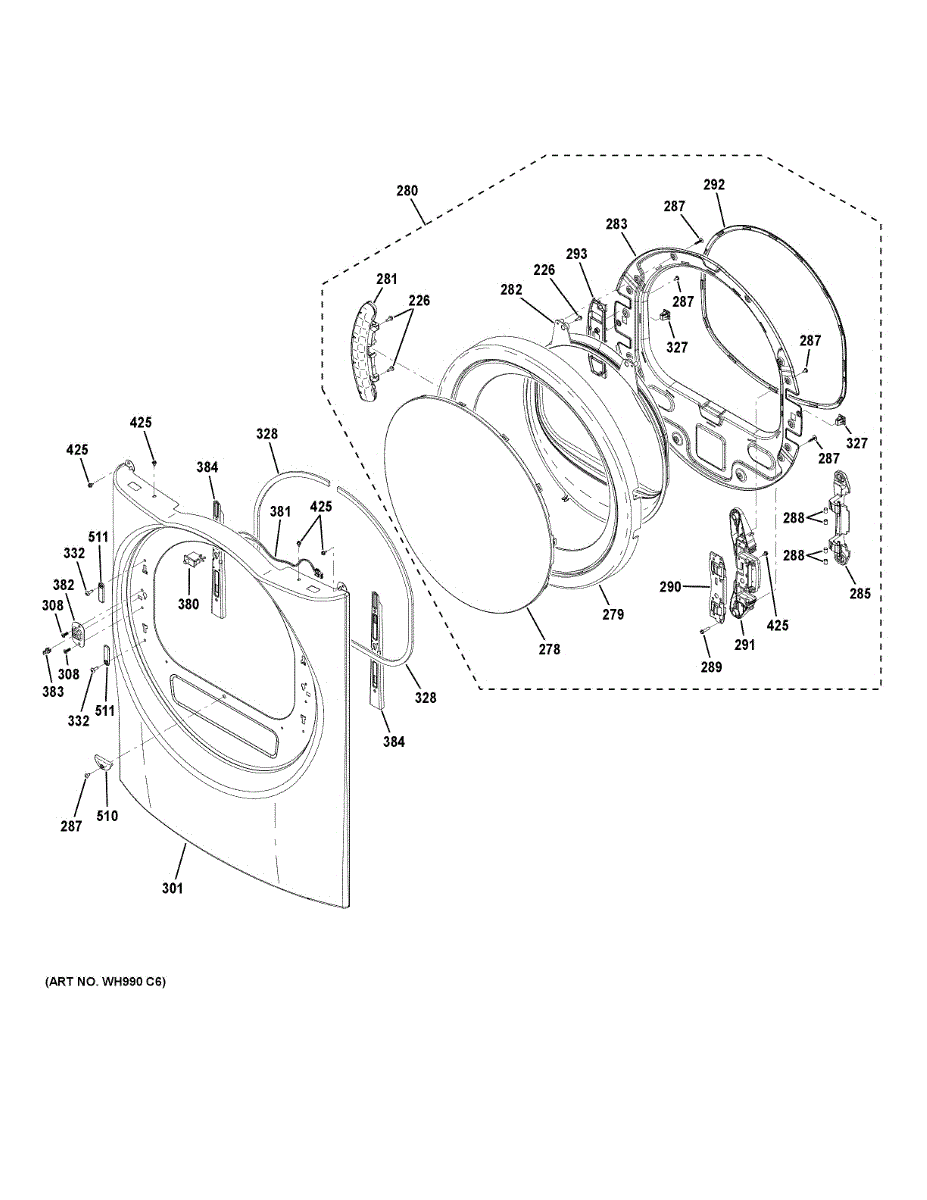

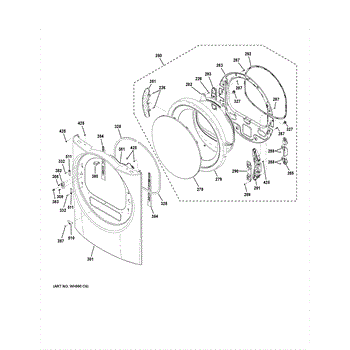

Parts for Ge GFD49GRPK0DG: Front Panel & Door Parts

Size: 8-18 b.

This stainless steel machine screw secures appliance components and trim for a reliable, corrosion-resistant hold. Use it when replacing lost or damaged fasteners to restore proper fit and reduce noise or misalignment. What it does:

• Fastens panels, brackets, and small assemblies where a #8-28 threaded screw is required
• Provides a rust-resistant connection for wet or humid appliance areas
• Helps stop rattling, loose trim, or misaligned parts caused by missing or stripped screws

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully by hand to avoid cross-threading; tighten until snug—do not overtighten
• Keep removed screws organized to ensure correct reassembly

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

This hinge cover screw fastens the hinge cover in place, helping keep it secure and protecting the hinge components beneath. Replace a missing or stripped screw to stop the cover from loosening or rattling.

• Secures the hinge cover to the door/cabinet hinge
• Helps protect hinge hardware and wiring under the cover
• Replaces stripped, rusted, or missing hardware
• Common symptoms: loose or missing hinge cover, vibration or rattling at the hinge area

• Disconnect power to the appliance before servicing near the hinge area
• Use the correct screwdriver; start threads by hand to avoid cross-threading
• Align the cover properly and tighten snugly—do not overtighten to prevent stripping
• Keep the door closed during work to minimize movement

This door latch assembly secures the appliance door and lets the unit detect a closed door so cycles can start. Replaces a worn or broken latch to restore proper door closure and reliable operation. What it does

• Holds the door closed during operation so the appliance can run safely.
• Engages the door switch or sensor that allows cycles to begin.
• Stops rattling or loose-door symptoms caused by a broken or worn latch.
• Helps prevent unexpected door openings during use.

• Disconnect power (and gas, if applicable) before servicing to avoid shock or injury.
• Basic hand tools typically required; remove the door or access panel per service instructions.
• Keep screws and small parts organized; latch alignment before reassembly.
• Test door operation and start a short cycle to ensure proper engagement after installation.

This front panel seal replaces the worn rubber gasket that seals the appliance front panel, helping maintain a proper seal and reduce leaks or drafts. It restores fit where the front panel meets the cabinet. What it does:

• Seals the gap between the front panel and cabinet to help prevent water, air, or lint escape
• Reduces rattling or vibration caused by a loose or degraded panel seal
• Helps maintain proper airflow path in dryers or washing machines when routed through the front panel
• Addresses symptoms such as visible gaps, drafts, leaking at the front, or increased noise

• Disconnect power and water (if applicable) before starting any repair
• Removal of the front panel is typically required; keep fasteners organized for reassembly
• Align the seal carefully into the panel channel and press fully into place for a proper fit

This machine screw secures panels, brackets, and internal components in compatible washers. Replacing a missing or stripped fastener restores a tight fit to help reduce vibration and keep parts properly aligned.

• 10-32 thread; 5/8-inch length; Torx T25 drive
• Fastens components and panels to resist loosening from vibration
• Replaces lost, corroded, or stripped screws
• Helps address loose or rattling panels, misalignment, or hardware that won't tighten

• Unplug the appliance and turn off water supply before servicing
• Use a T25 Torx driver; start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten
• Repair or replace the bracket/panel for a secure hold

This door switch harness connects the oven/range door switch to the appliance wiring so the control can detect door open/closed status and operate door-related functions. It restores reliable door-sensor signaling for proper oven behavior. What it does:

• Carries the electrical signals between the door switch and the control board so the appliance knows when the door is open or closed
• Helps restore door-dependent functions such as interior lights, control interlocks and safety interlocks
• Commonly replaces a damaged, frayed or disconnected harness that causes intermittent or no response from the door switch
• Compatible with fixed connector configurations; matches OEM wiring colors and terminals

• Disconnect power to the appliance (unplug or switch off circuit breaker) before starting any repair
• Access the door switch area per your model's service instructions; handle connectors by the plug, not the wires
• Verify connector orientation and secure routing to avoid pinching when reassembling the door/console

This bracket striker secures the door latch so the appliance door closes and seals properly. It restores a solid catch and helps eliminate door misalignment or a door that won't stay closed. What it does:

• Acts as the mating catch for the door latch, allowing the door to lock and remain closed.
• Restores proper door engagement to improve sealing and temperature control.
• Commonly replaced when the latch no longer catches, the door feels loose, or the door won't stay shut.
• Works with the existing latch assembly; does not include the latch.

• Turn off power to the appliance before beginning any repair.
• Removal/installation typically requires basic hand tools and careful alignment of the striker with the latch.
• Keep screws and small parts organized during reassembly; test door operation after installation.

This door striker is the replacement latch striker that the door latch engages to hold the appliance door closed. Replacing a worn or damaged striker restores secure door closing and consistent latch engagement. What it does:

• Provides a reliable engagement point for the door latch so the door stays closed
• Helps correct doors that won't fully latch, pop open, or sit unevenly
• Restores proper alignment between the latch and striker for smooth closing
• Reduces rattling or vibration caused by a loose or damaged striker

• One door striker

• Disconnect power (or unplug) before starting any repair to avoid electrical or injury risks
• Access usually requires removing the appliance door or the inner door panel; keep fasteners organized
• Align striker with the latch and tighten screws securely, but avoid overtightening which can strip threads

This grey plug panel is the exterior cover that protects the appliance's plug/connection area and restores the unit's finished appearance. It replaces cracked, missing or damaged panels to keep wiring covered and improve safety and aesthetics. What it does:

• Covers and protects the power plug/connection area from debris and accidental contact
• Restores the appliance's finished look when the original panel is cracked, broken or discolored
• Helps prevent exposure of wiring and connections that can lead to safety concerns
• Serves as the mounting surface for the plug/connection opening and related fasteners

• Always disconnect power to the appliance before starting any repair.
• Remove any trim or access panels as needed to reach the plug panel; retain all screws and fasteners.
• Handle edges carefully; use appropriate hand tools to remove and replace the panel without damaging surrounding parts.
