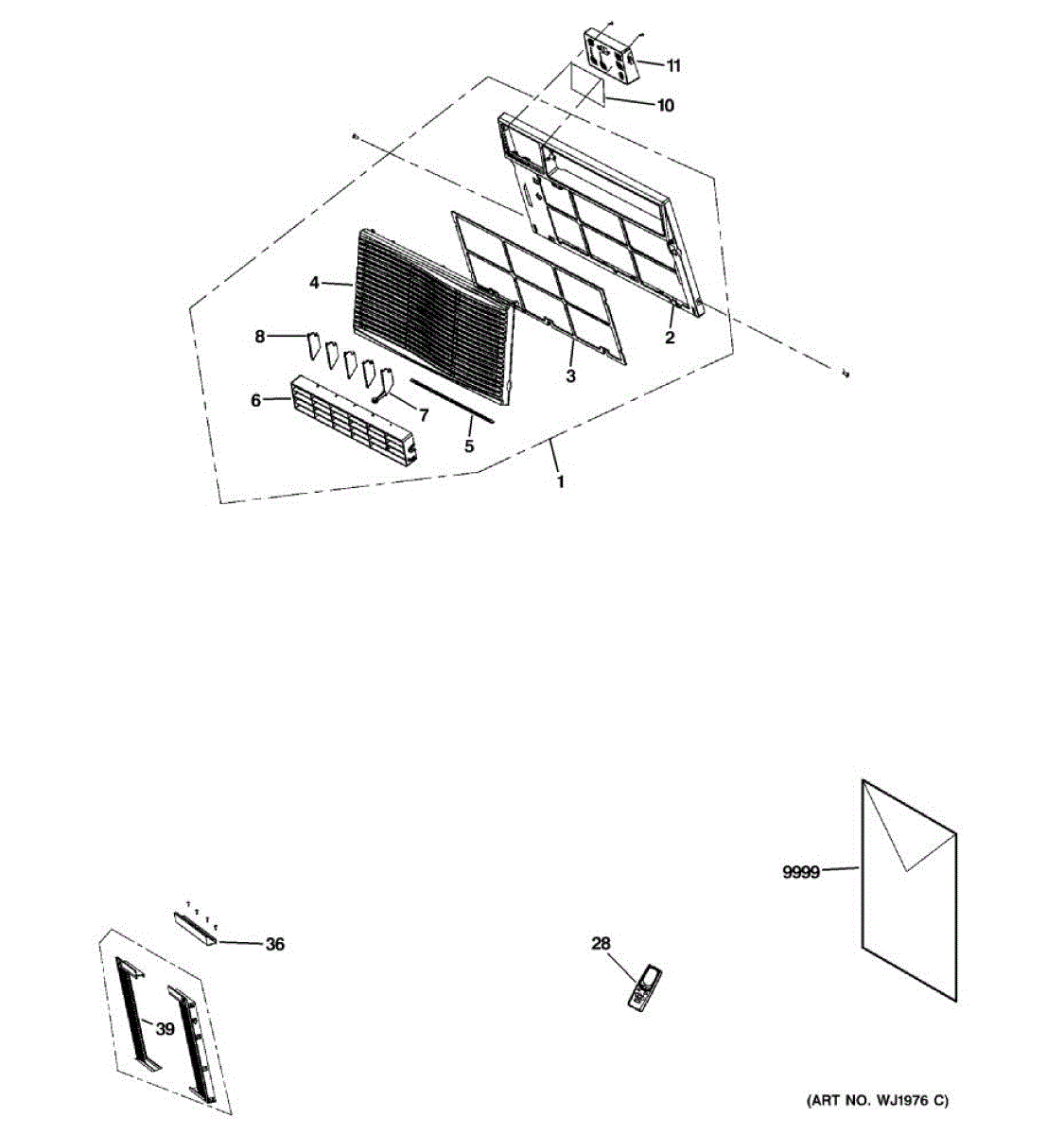

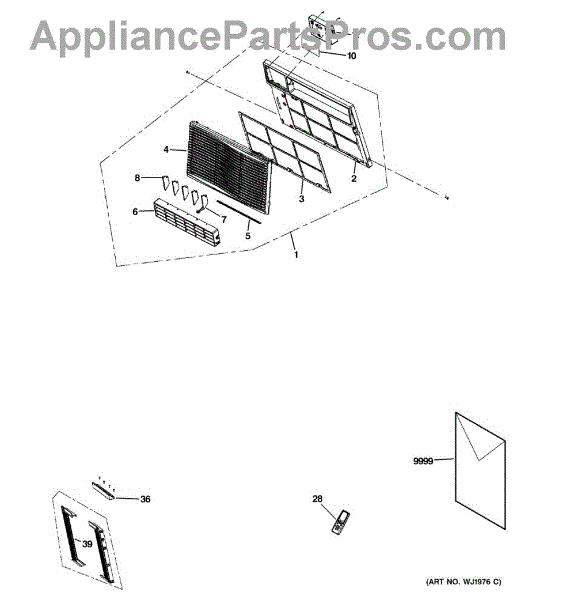

Parts for Ge AEQ06LNH1: 01 - Front Panel, Filter & Frame Parts

This air filter assembly traps dust and lint before they reach the evaporator coil, helping your room air conditioner maintain airflow and cooling performance. Replace clogged or damaged filters to protect components and keep cooling consistent. What it does:

• Screens intake air to help prevent debris from coating the evaporator coil and blower
• Helps sustain proper airflow and cooling performance
• A torn, missing, or heavily clogged filter can cause reduced air volume, longer run times, or uneven cooling
• Captures dust and lint that would otherwise accumulate inside the unit

• Includes: 1 air filter assembly

• Unplug the unit before servicing
• Open the front grille to access the filter; note the orientation of the old assembly
• Slide out the old filter and fully seat the new assembly in the same position
• Do not operate the unit without a filter installed

This vertical louver restores proper airflow and appearance for the appliance's vent or air channel. It directs air and protects internal components while keeping the exterior looking finished. What it does:

• Directs and guides airflow through the appliance vent
• Protects internal components from large debris and improves venting performance
• Helps reduce rattling from a damaged or loose vent louver
• Restores the appliance's exterior look when the original louver is cracked or missing

• One vertical louver

• Disconnect power (or unplug) before accessing the vent area to avoid electrical hazard
• Remove any fasteners or clips holding the old louver; retain hardware
• Align the replacement louver with mounting slots or tabs and secure with original screws or clips
• If edges are sharp or fit is tight, wear gloves and test operation before reassembly

This curtain assembly is the extendable side panel for a window air conditioner. It fills the gap between the A/C cabinet and window frame to restore a secure fit and help block drafts, moisture, and debris.

• Extends to close the side opening between the unit and the window jamb
• Helps reduce unwanted airflow, dust, moisture, and insects around the A/C
• Aids in maintaining a stable, properly aligned window installation
• Common symptoms: cracked or torn panel, brittleness, missing panel, visible light or air leaks at the sides

• Disconnect power and support the A/C so it cannot shift or fall while servicing
• Remove the damaged panel and retain any screws or mounting clips for reuse
• Slide the new curtain into the cabinet tracks and secure it to the window frame per your model's instructions
• Match orientation to the original panel and ensure smooth extension and an even seal before use
