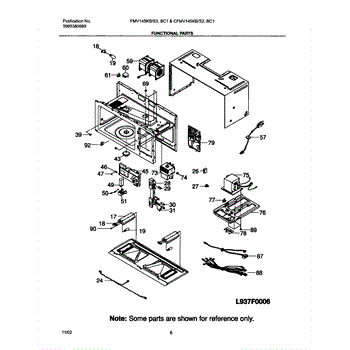

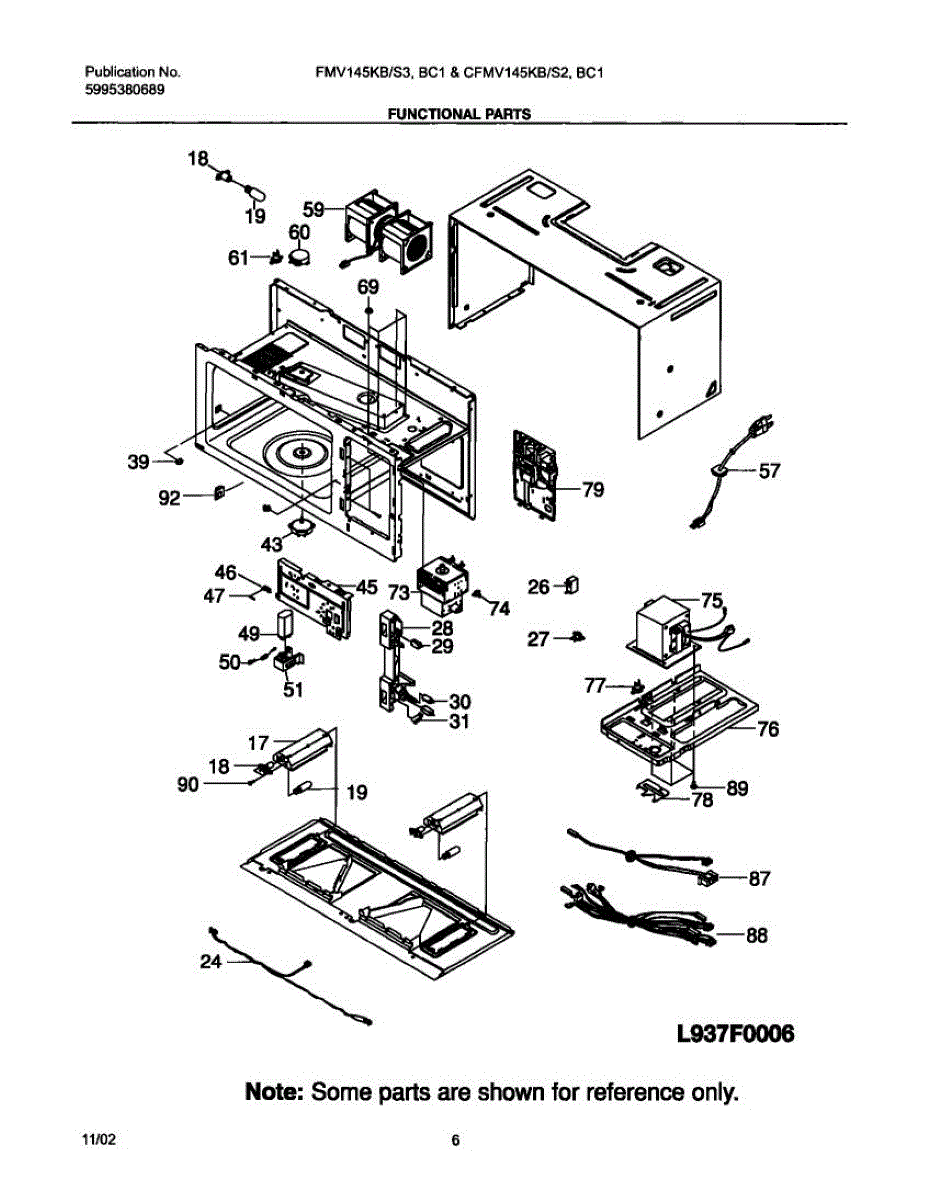

Parts for Frigidaire FMV145KB3: 07 - Functional Parts

This high-voltage capacitor stores and releases electrical energy for the appliance's high-voltage circuit, restoring reliable power delivery where a failed capacitor prevents normal operation. It's a direct-fit replacement when the original capacitor is damaged. What it does:

• Provides the stored charge needed for the appliance's high-voltage circuit to operate correctly.
• Commonly fails by shorting or losing capacitance, causing the appliance to not start, not heat, or experience intermittent operation.
• A damaged capacitor can cause arcing, unusual noises, or a burning smell in the high-voltage area.
• Restores proper electrical timing and discharge required by the high-voltage system when replaced.

• One high-voltage capacitor

• Disconnect power before servicing and ensure the appliance is fully de-energized.
• High-voltage capacitors can retain dangerous charge; discharge the capacitor per OEM instructions before handling.
• Inspect surrounding wiring and components for heat or arcing damage and replace if needed.

This wiring harness connects the oven's control and power circuits to the appropriate components, restoring reliable electrical signaling for safe, consistent operation. Use this harness to replace damaged or worn wiring assemblies. What it does:

• Routes power and signal lines between the control board and heating, sensor, and switch components
• Restores interrupted circuits that can cause intermittent function or no heat/control response
• Helps eliminate loose, corroded, or frayed connections that can cause malfunctions
• Matches OEM connector types and colors for a direct-fit replacement when specified

• Disconnect all power (unplug or shut off breaker) before servicing to avoid shock or injury
• Handle connectors by the housings; avoid pulling on wires to prevent terminal damage
• Route and secure the harness following OEM wiring paths and retainers to prevent chafing or heat exposure

A replacement washer-head screw used to secure components on compatible appliances. Small but essential hardware restores proper fastening and helps keep panels, brackets, or assemblies firmly attached. What it does:

• Fastens panels, trim, brackets, or small assemblies where a washer-style head is required
• Replaces stripped, damaged, or missing screws that cause rattling or loose parts
• Restores secure mounting to reduce vibration and noise
• Matches OEM head style to fit recessed or countersunk mounting locations

• One washer-head screw

• Use the correct screwdriver bit and turn gently to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts or threads
• Replace any damaged mating hardware (clips, inserts) for a reliable repair
• Disconnect power to the appliance before working where required for safety
