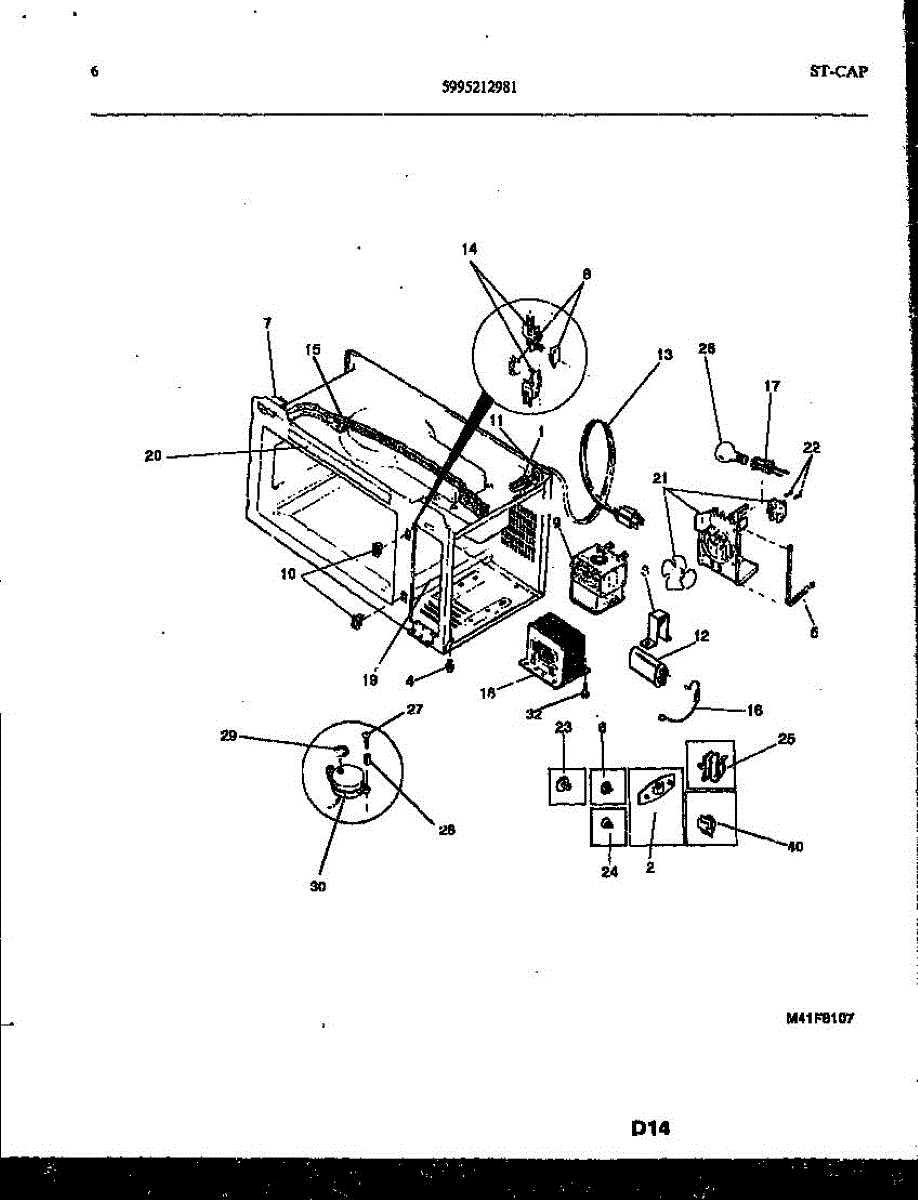

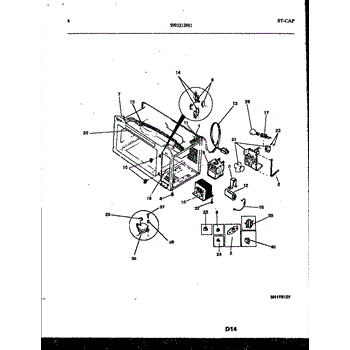

Parts for Frigidaire MCT870P2: 04 - Functional Parts

This wire harness assembly includes a mounted diode to route and protect low-voltage signals in the appliance electrical circuit. It replaces a damaged or failed harness to restore proper circuit continuity and component control. What it does:

• Provides the correct wiring and connector fit for the associated control circuit
• Diode ensures current flows in the intended direction to protect sensitive components
• Restores reliable electrical connection when original wiring is frayed or broken
• Can resolve intermittent operation, control failures, or a component that will not activate

• One wire harness assembly with diode installed

• Disconnect power to the appliance before starting any repair
• Verify connectors match and seat fully; route harness away from heat and moving parts
• Replace only with the exact part number to ensure proper fit and function

A replacement 6-32 x 1-1/8 screw with an attached washer and pan-style head for securing appliance panels and components. Simple, direct fit for repairs that require the correct fastener to restore secure mounting. What it does:

• Fastens control panels, brackets, and trim where a 6-32 x 1-1/8 sems screw is specified
• The attached washer helps distribute load and resist loosening from vibration
• Replacing stripped or missing screws stops rattling and prevents parts from shifting
• Matches OEM fastening locations that call for a pan-head sems screw

• One replacement 6-32 x 1-1/8 pan head sems screw

• Use the correct 6-32 driver (Phillips) and turn carefully to avoid stripping the head
• Tighten until snug; avoid overtightening which can crack plastic or strip threads
• Disconnect power or follow manufacturer safety procedures before servicing electrical components
• Keep removed screws organized to ensure correct reinstallation

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary
