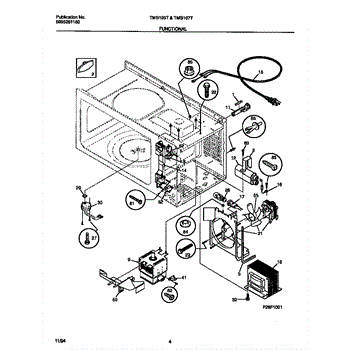

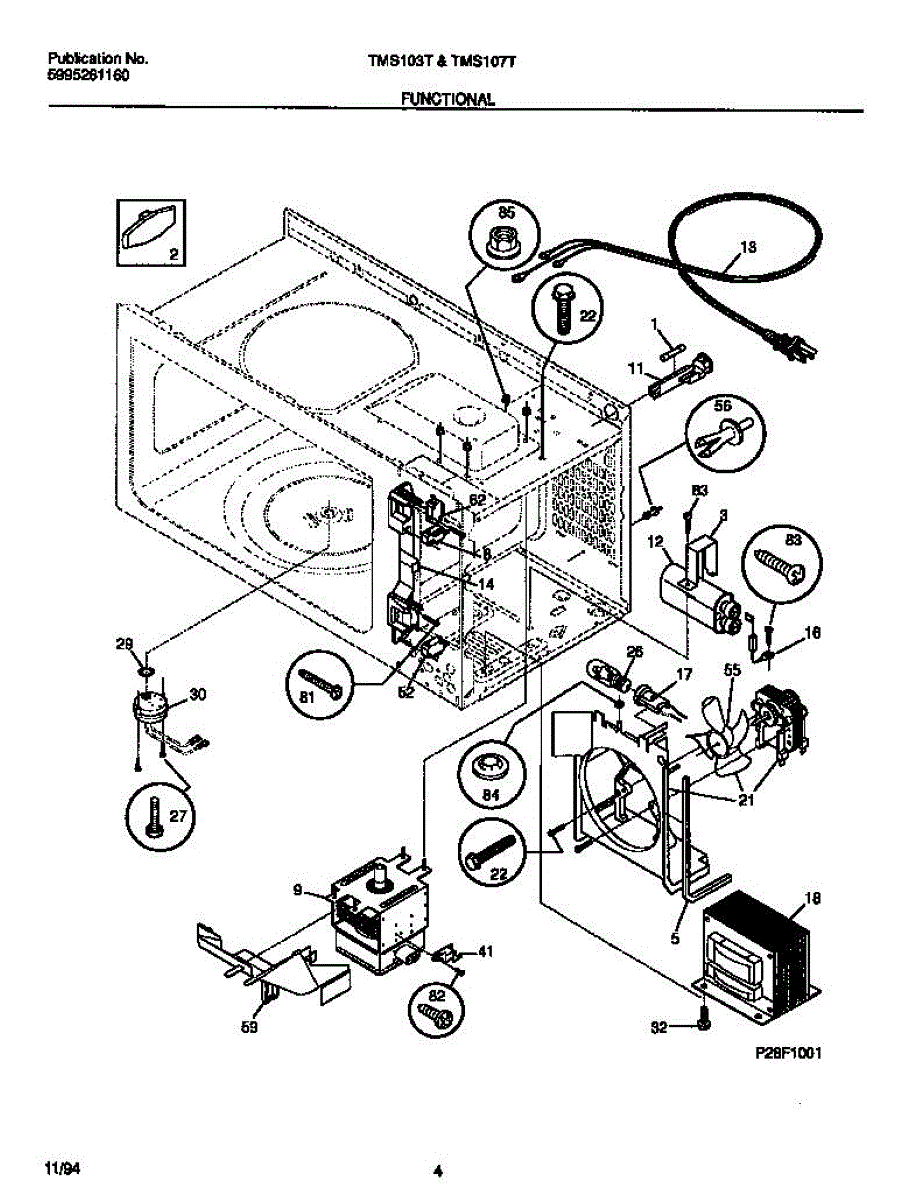

Parts for Frigidaire TMS103T1G1: 04 - Functional Parts

This wire harness assembly includes a mounted diode to route and protect low-voltage signals in the appliance electrical circuit. It replaces a damaged or failed harness to restore proper circuit continuity and component control. What it does:

• Provides the correct wiring and connector fit for the associated control circuit
• Diode ensures current flows in the intended direction to protect sensitive components
• Restores reliable electrical connection when original wiring is frayed or broken
• Can resolve intermittent operation, control failures, or a component that will not activate

• One wire harness assembly with diode installed

• Disconnect power to the appliance before starting any repair
• Verify connectors match and seat fully; route harness away from heat and moving parts
• Replace only with the exact part number to ensure proper fit and function

This turntable seal keeps the washer tub sealed where the turntable/agitator shaft passes through, helping prevent leaks and protecting internal components. A proper seal reduces water loss and keeps the wash action working as designed. What it does:

• Seals the interface between the tub and turntable/shaft to stop water from leaking out of the wash tub
• Helps prevent water damage to the motor and electronics below the tub
• Commonly replaced when you see water pooling under or around the washer or persistent leaking during cycles
• Also replaced if the old seal is cracked, flattened, or hardened and no longer forms a tight seal

• Turn off and unplug the washer and shut off the water supply before starting any work
• Drain the tub and remove the turntable/agitator per the washer's service instructions to access the seal
• Inspect the sealing surfaces for corrosion or debris and clean before installing the new seal

A single #8A x 1/2" screw used to fasten trim, panels, and internal components on compatible appliances. Small but essential, it restores secure mounting and stops loose parts from rattling or shifting. What it does:

• Secures panels, brackets, and trim to the appliance chassis
• Replaces missing, stripped, or corroded screws that cause rattling or loose fittings
• Provides proper thread engagement for consistent, reliable fastening
• Helps maintain alignment of components that depend on a correctly sized screw

• Disconnect power to the appliance before working on any electrical or mechanical components
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening; snug is usually sufficient for sheet-metal fastening
• Keep removed fasteners in a small container to avoid loss during reassembly

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
