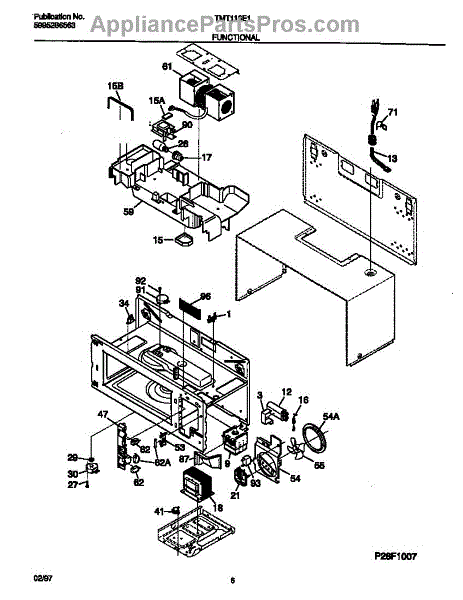

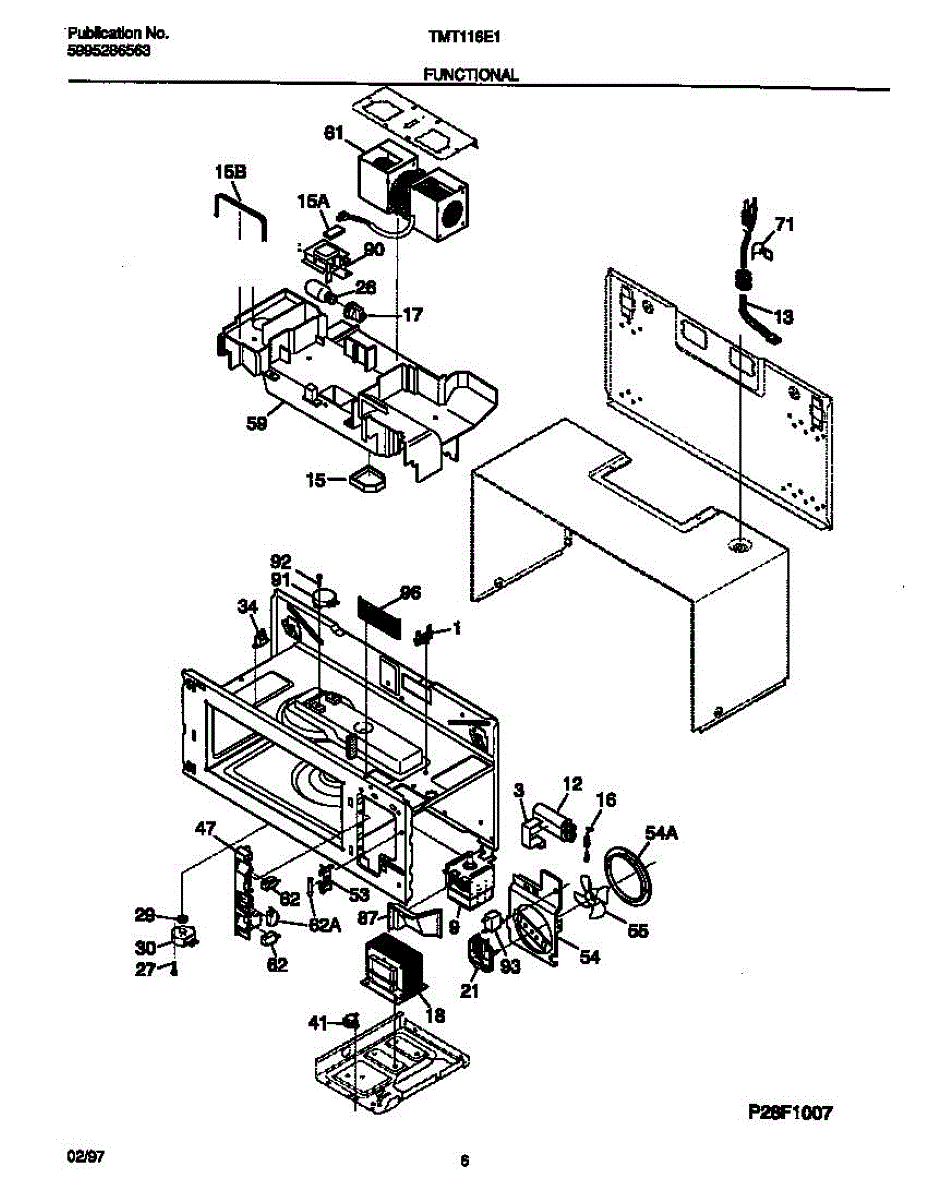

Parts for Frigidaire TMT116E1W0: 04 - Functional Parts

This magnetron converts high-voltage electrical energy into microwave energy to heat food in a microwave oven. Replacing a failed magnetron restores cooking power and eliminates cold or uneven heating. What it does:

• Generates the microwave radiation that cooks food inside the oven cavity
• Restores normal heating when a burned-out magnetron causes no-heat or weak heating
• Addresses symptoms such as loud arcing, a burning smell, or no microwave output
• Works with the oven's high-voltage circuit and waveguide to deliver microwaves to the cavity

• Disconnect power and allow capacitors to fully discharge before servicing; high-voltage risk is present even with the unit unplugged
• Inspect and replace any damaged waveguide covers or high-voltage components when present
• Use correct mounting hardware and gasket alignment to avoid arcing or microwave leakage

This motor start/run capacitor helps the compressor and fan motors start and run reliably, restoring normal cooling performance when a failing capacitor causes hard starts or intermittent motor operation. A direct-replacement component for affected units. What it does:

• Provides the electrical phase shift and stored energy needed for compressor and fan motor startup.
• Helps prevent slow starts, humming, or motors that won't start reliably.
• Restores stable motor operation and can reduce overheating or tripping caused by a weak capacitor.
• Works as a replacement for the same OEM-design capacitor in compatible refrigerators and freezers.

• One replacement capacitor (single unit)

• Disconnect power to the appliance before inspecting or replacing the capacitor to avoid shock.
• Verify capacitor is fully discharged before handling; use insulated tools and follow safety procedures.
• Match the capacitor's mounting and terminal type to the existing part for correct fit and connection.

This replacement lamp restores illumination in your appliance's lighted area. Installing a new lamp brings back clear visibility so you can easily see contents and settings during use.

• Provides light when the door opens or the light switch is turned on
• Replaces a bulb that is burned out, dim, or flickering
• Common symptoms: light not working, intermittent operation, or a blackened/broken filament
• Restores interior/work-area visibility for safer, easier use

• Disconnect power to the appliance before servicing
• Allow the lamp and surrounding area to cool completely before handling
• Handle glass with a clean cloth or gloves; avoid touching the glass directly
• Replace only with the same type and rating specified by the manufacturer

This packing is a replacement door gasket that seals the appliance cabinet to keep cold in and warm air out, helping maintain proper cooling and reduce frost buildup. It restores a tight seal around the door for consistent performance. What it does:

• Replaces a worn or torn door seal to stop warm air leaks and reduce frost and moisture inside the compartment
• Helps the appliance maintain set temperatures and can improve cooling consistency
• Can reduce unnecessary compressor run time caused by poor sealing
• Addresses symptoms like visible gaps, cold loss at the door, or excessive frost buildup

• Disconnect power to the appliance or unplug before starting work
• Clean the door frame and contact surfaces before installing the new gasket to ensure a good seal
• Align and seat the gasket evenly around the door; some gaskets require gentle stretching or warming for proper fit
• Inspect door hinges and closing action; adjust if the door does not close evenly after gasket replacement

This replacement motor restores reliable rotation to the component it drives—bringing back proper airflow or mechanical movement so your appliance runs as designed and noise is minimized.

• Converts electrical energy into steady shaft rotation to power the attached fan, blower, or mechanism
• Common failure signs: won't start, only hums, stalls, or intermittently runs
• Worn bearings or windings can lead to overheating and reduced performance

• Disconnect power before servicing; if the unit uses capacitors, discharge them per the service manual
• Note wire locations and transfer any brackets, grommets, or fan blades from the old motor
• Mount securely, align the shaft, and confirm correct rotation before finalizing
• Spin the shaft by hand to check for free movement, then test for smooth, quiet operation

This control switch regulates heat to a surface burner so the cooktop reaches and holds the selected temperature. Restores responsive burner control and consistent cooking performance. What it does:

• Sends variable power to a surface burner to adjust heat levels as you set the knob
• Commonly replaces a switch that causes a burner to stay cold, not heat, or only work at one setting
• Can fix clicking, intermittent operation, or loss of variable control on the affected element
• Works with the cooktop's control knob and wiring harness to manage element output

• One replacement infinite burner control switch

• Disconnect power to the appliance before beginning any work
• Remove the cooktop or control panel as needed to access the switch; keep track of mounting hardware
• Match wire locations and connector orientation when reattaching harness; take a photo first if helpful

This fuse holder secures the appliance fuse and provides a safe connection point for overcurrent protection. It replaces a damaged or worn holder to restore a secure fuse mounting and reliable circuit continuity. What it does:

• Holds and secures the appliance fuse so it stays in proper contact with the circuit
• Provides the connection point that allows a fuse to interrupt power when a fault occurs
• Common replacement when the fuse won't seat, shows burn or corrosion, or causes intermittent power
• Helps restore normal electrical operation when a failed holder prevents the fuse from making contact

• Disconnect power before inspecting or replacing the holder to avoid shock or damage
• Verify the fuse rating and type before reassembly; replace only with the correct fuse
• Inspect wiring and terminals for damage; repair any frayed or burned leads

This orifice for the fan duct helps direct airflow from the evaporator fan to the cabinet, ensuring consistent cooling where needed. It replaces a damaged or missing duct orifice to restore proper air delivery inside the appliance. What it does:

• Guides and narrows airflow from the evaporator fan to targeted areas in the cabinet
• Helps maintain even temperatures and proper compartment cooling
• Commonly replaced when the duct is cracked, broken, or missing pieces
• Compatible with OEM fan duct assemblies that use a small plastic orifice

• One fan duct orifice as shown

• Disconnect power to the appliance before starting any repair
• Typically installs behind an inner liner or access panel; some disassembly of trim or shelves may be required
• Handle the plastic part gently to avoid cracking during installation

This switch/fuse kit replaces a worn or failed control switch and associated fuse to restore reliable power control. It provides the exact components needed to address common start and power interruptions. What it does:

• Replaces a faulty control switch to restore on/off or cycle control
• Replaces the protective fuse to stop power loss from a blown fuse
• Helps resolve no-start, intermittent power, or control failures
• Restores proper electrical continuity for safe operation

• Disconnect power to the appliance before starting any work
• Handle electrical components carefully and avoid metal contact with terminals
• Verify correct part orientation and secure all connections per OEM guidance

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

This is a replacement mounting screw used to secure panels, trim, and small components in compatible appliances. Installing the correct screw restores a secure fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces or small assemblies to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises when in place
• Replaces missing, worn, or stripped fasteners that cause loose doors or misaligned trim
• Works with the original mounting points and thread types used by the manufacturer

• Always disconnect power or unplug the appliance before servicing to avoid electrical hazard.
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten.
• Keep track of small parts and compare the new screw to the old one before installation.
