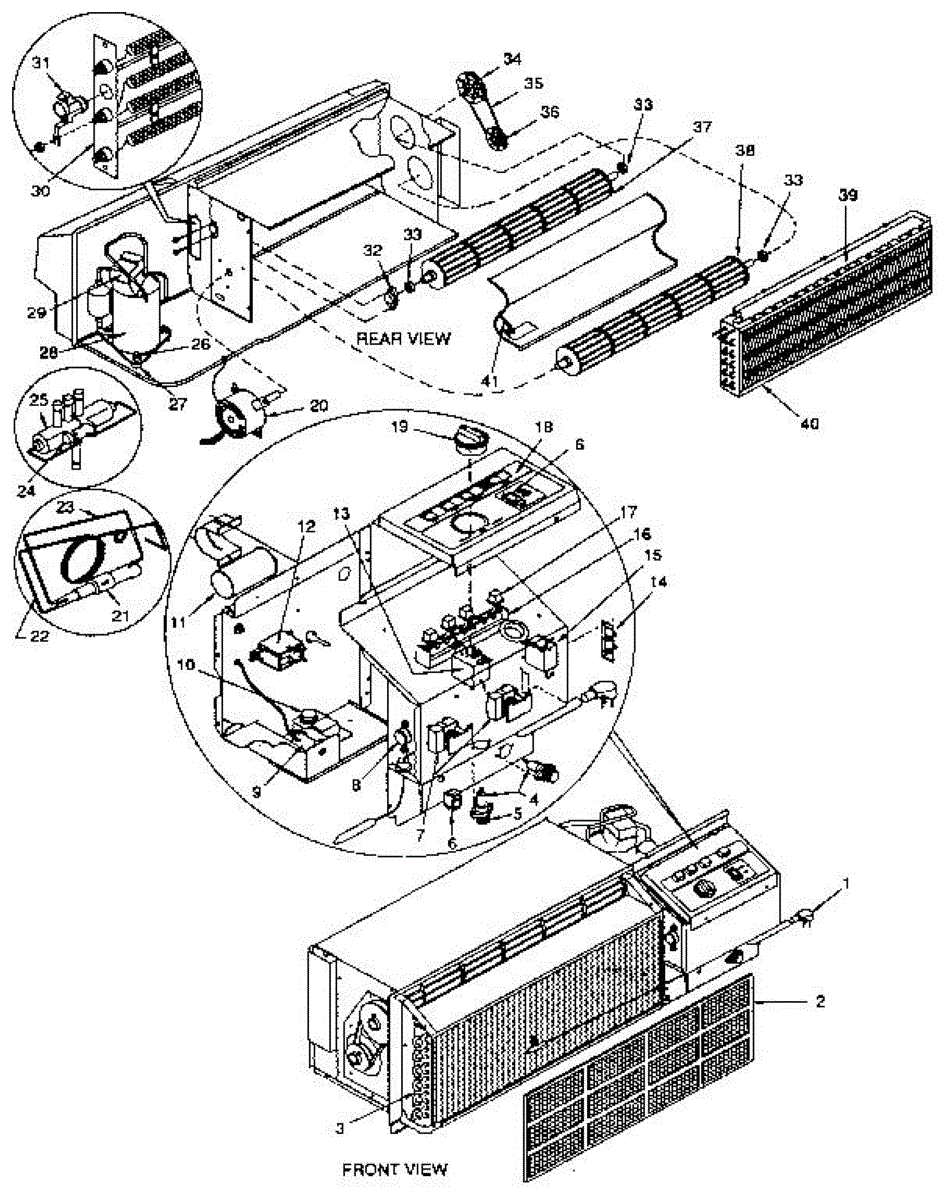

Parts for Kenmore 867.840861 (867840861, 867 840861): Functional Parts

This electromechanical SPDT 24V relay switches a single circuit between two outputs to control motors, valves, or heaters. It provides the reliable on/off switching appliances need to run specific components when commanded. What it does:

• Energizes a 24V coil to open or close the common contact to the normally open or normally closed contact
• Controls motors, pumps, fans, or heating elements when the appliance control board sends a 24V signal
• Common replacement when an appliance component does not start or cycles incorrectly due to a failed relay
• Designed for panel or chassis mounting in appliance control systems

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Verify connector orientation and terminal fit; match wire positions exactly when replacing.
• If soldering or crimping, use appropriate tools and make secure connections to prevent intermittent faults.
