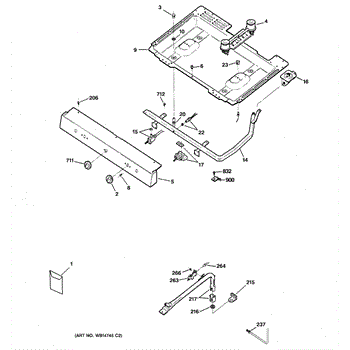

Parts for Ge AGBS300PK5BB: 01 - Gas & Burner Parts

This conversion kit assembly adapts your gas appliance for the correct fuel type specified for your model, restoring proper flame size and heating performance after a fuel change and supporting safe, efficient operation.

• Converts the appliance for the designated gas type per the manufacturer's instructions
• Calibrates burner output for proper flame characteristics and heat
• Helps address yellow flames, sooting, weak heating, or hard-to-adjust flames after a fuel change
• Supports reliable ignition and stable flames when the supply differs from the factory setup

• Turn off gas and electrical power and allow the appliance to cool before service
• Install each component in its specified location; do not mix sizes; retain removed parts for possible reconversion
• After installation, leak-check all connections and verify flame appearance/air adjustment; apply required conversion identification as instructed

Replace a worn or missing knob and restore smooth, precise control of your cooktop. This black top burner control knob mounts on the surface burner valve stem, allowing reliable on/off operation and easy heat adjustment.

• Operates a surface/top burner by turning the control stem to set heat
• Ideal when the original knob is cracked, stripped, loose, hard to turn, or missing
• Restores proper feel and alignment when adjusting the burner
• Black finish matches the original appearance

• Allow the cooktop to cool and disconnect power before servicing
• Pull the old knob straight off the control/valve stem; align the new knob and press straight on
• Do not force—recheck stem orientation if the knob does not seat fully

Color: White. It measures about 2 inches in diameter.

Natural gas orifice spud.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Size: 8 - 32 inch.

This round gas valve controls flow to a surface burner, providing smooth flame adjustment and reliable shutoff. Replace a worn valve to restore precise burner control and safe operation on your gas range or cooktop.

• Regulates gas to the burner as the control knob turns, from low simmer to full flame
• Common symptoms: burner won't light though the igniter sparks, flame won't adjust or shut off, gas odor near the knob, or a stiff/stripped valve stem
• Services one burner position; multiple valves are used on many gas ranges/cooktops
• Installs in the burner manifold/orifice holder location specified by the manufacturer

• Disconnect power and shut off the gas supply before servicing
• Note stem orientation; transfer fittings/brackets from the original valve as needed and use approved thread sealant where specified
• After installation, leak-test all joints with an approved solution before restoring gas
• Verify proper ignition and flame adjustment on the burner after replacement

This modulating thermostat controls oven temperature by cycling the heating element to maintain consistent cooking heat. It replaces a failed temperature regulator so your oven can reach and hold set temperatures more reliably. What it does:

• Senses oven temperature and modulates power to the heating element to stabilize cooking temperature
• Helps prevent large temperature swings that cause uneven baking or roasting
• Commonly replaced when the oven won't reach or maintain set temperature or cycles on/off too frequently
• Works as the temperature control interface between the oven sensor and the heating elements

• One modulating thermostat assembly

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Handle thermostat and any attached sensing bulb or probe carefully; avoid kinking or damaging sensing components
• Verify wiring location and routing before removal; transfer all connectors exactly as removed

This thermocouple sits in the pilot flame and signals the oven safety valve that a flame is present. Replacing a weak or open thermocouple restores safe ignition and consistent burner operation on standing-pilot gas ranges.

• Detects heat from the pilot flame and generates a small millivolt signal to allow the oven safety valve to remain open
• Common symptoms of failure: oven won't heat, burner lights then goes out, pilot won't stay lit, intermittent oven shutdown
• Confirms flame presence to help prevent unlit-gas flow during operation
• Intended for standing-pilot style gas ovens/ranges

• Disconnect power and shut off gas before servicing; allow the appliance to cool
• Route and secure the new thermocouple exactly like the original; avoid sharp bends and kinks
• Position the tip correctly in the pilot flame; hand-start threads and snug fittings—do not overtighten
• After installation, check all connections for leaks with a soap-and-water solution and verify proper burner operation

Location: Right rear.

Location: Left rear.

Location: Right front.

Location: Left front.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

This oven pilot assembly supplies the small, continuous flame used to ignite the main gas burner in a gas oven. It restores reliable ignition so the broil/bake burners can light when the oven calls for heat. What it does:

• Provides the standing pilot flame that ignites the oven's main burner
• Allows safe ignition when the oven control sends gas to the burner
• Common repair for ovens that fail to light or have intermittent ignition
• Can reduce repeated clicking or delayed lighting when replaced

• One oven pilot assembly

• Turn off gas supply and disconnect electrical power before starting any work
• Verify proper alignment and secure mounting of the pilot tip to the burner hood
• After installation, check for gas leaks with a leak-detection solution and confirm proper ignition

This oven pilot assembly with thermocouple maintains a steady pilot flame and proves flame presence to the safety valve so the oven burner can ignite and stay on. Replace when the pilot won't hold or oven ignition is inconsistent.

• Supplies the constant pilot flame needed to light the oven burner
• Thermocouple sends a flame-present signal to allow/hold gas flow to the burner
• Helps resolve issues like the pilot going out, burner not lighting, or oven shutting off mid-cycle
• Restores consistent oven ignition on pilot-equipped models

• Shut off gas supply and power; allow the appliance to cool before servicing
• Note routing and mounting before removal; install the new assembly in the same orientation
• After reconnecting lines, check all joints for leaks with an approved leak-detection solution
• Verify a stable pilot flame and proper burner ignition after installation

This oven thermostat knob assembly replaces the control knob that mounts to the thermostat shaft, letting you set and adjust cooking temperature smoothly again. Use it when the original knob is cracked, stripped, loose, or missing.

• Attaches to the oven thermostat shaft to select temperature
• Restores positive engagement when the old knob is cracked or stripped
• Common symptoms: knob loose or wobbly, spins without changing settings, falls off, or cannot be turned
• Direct replacement for a missing or damaged thermostat knob

• Disconnect power or unplug the appliance before servicing to prevent accidental activation
• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the flat on the knob insert with the flat on the shaft, then press on until fully seated
• Verify the knob turns smoothly and points correctly

This thermostat control knob replaces a worn or missing oven temperature selector. It attaches to the thermostat shaft so you can set the oven temperature again with a solid, positive feel and clear pointer alignment.

• Mounts on the thermostat shaft to select and adjust oven temperature settings
• Restores grip and control when the original knob is cracked, stripped, loose, or missing
• Helps ensure the control turns smoothly and the pointer lines up with the dial markings
• Freshens the appearance of the control panel

• Disconnect power and shut off gas supply before servicing
• Pull the old knob straight off; avoid bending the control shaft
• Align the flat/D-shaped opening with the shaft and press on firmly until fully seated
• Rotate through the full range to ensure smooth operation
