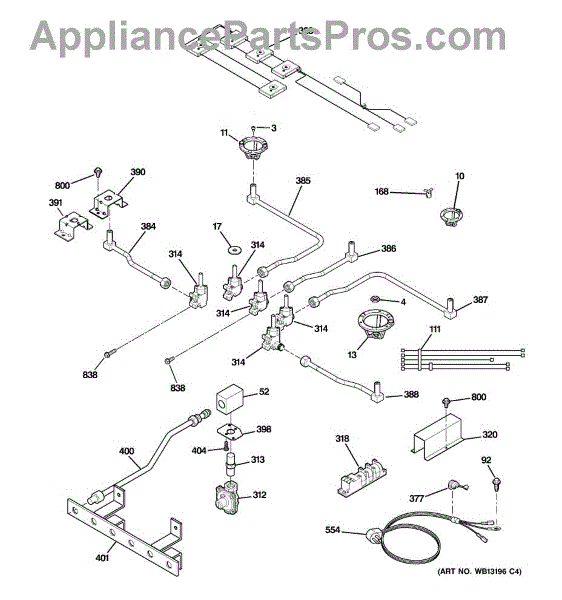

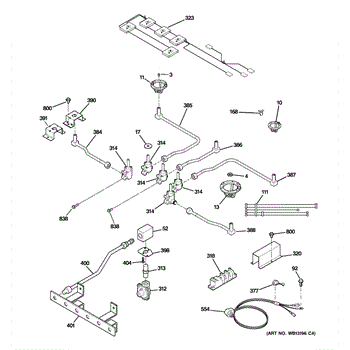

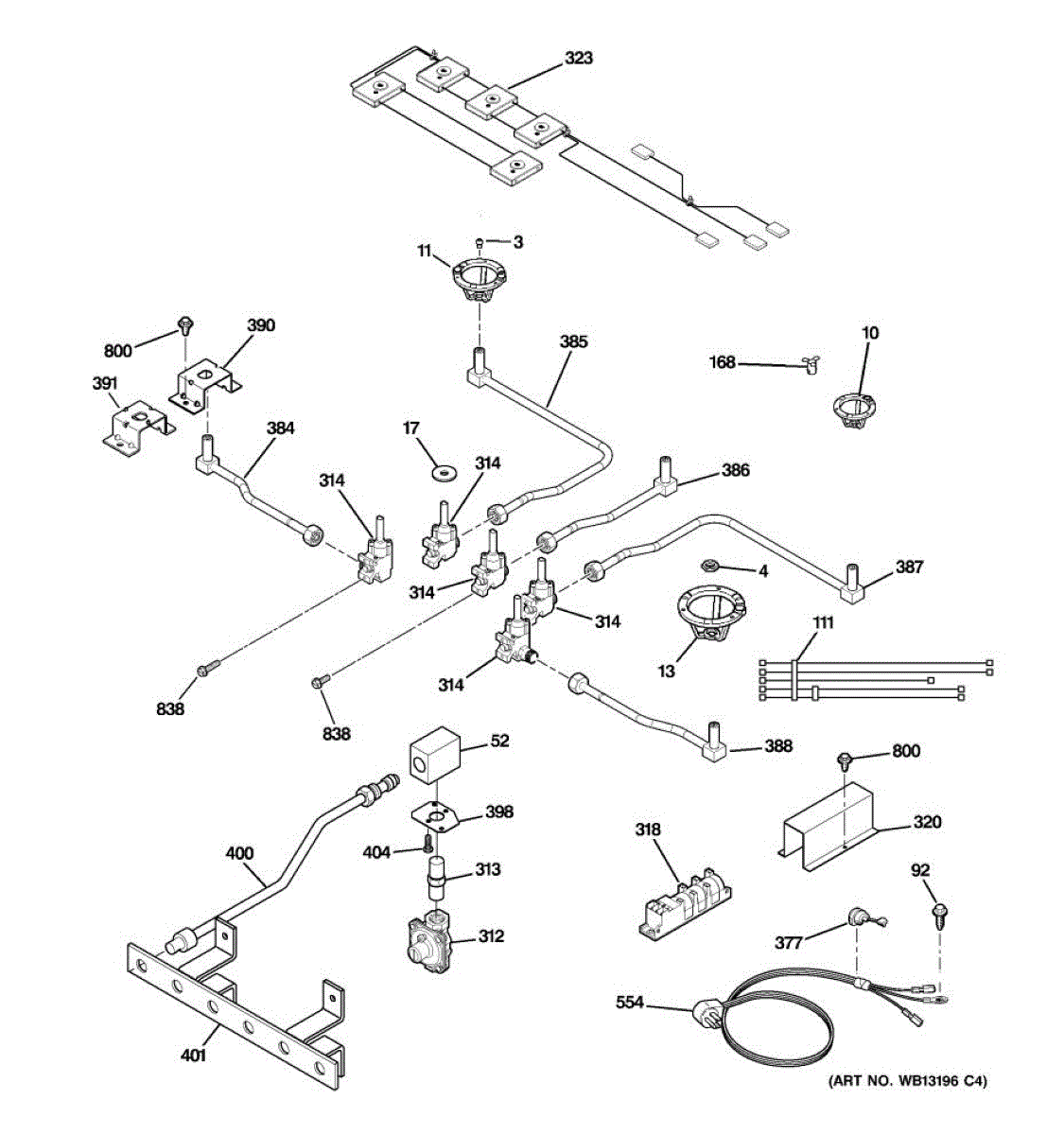

Parts for Ge JGP637BEJ3BB: 01 - Gas & Burner Parts

Natural gas. Med 1.50mm

Gas burner orifice spud for range cooktop conversion between LP and natural gas. Replace when converting fuel types or if missing or damaged.

Burner orifice spud for gas range conversion between natural gas and LP. Replace broken, missing, or incorrect size orifices when converting fuel type.

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

A safety valve that regulates natural gas pressure flowing to the range's burners and oven, ensuring proper flame characteristics and safe operation. Replace when burners won't light, flames are irregular in size or color, or you detect gas odors during operation.

9.5K Btu NAT gas, 9.1K Btu LP gas

5K Btu

This harness module connects and routes electrical signals between components to restore reliable circuit connections and control communication. It replaces a damaged or worn module to help appliances power and operate correctly. What it does:

• Routes power and signal connections between internal components to ensure consistent electrical continuity
• Replaces broken, frayed, or corroded wiring that can cause intermittent operation or loss of function
• Helps resolve symptoms such as lights or controls not responding, intermittent cycles, or non-start conditions when traced to the harness
• Maintains correct connector fit and pin alignment for secure component mating

• One harness module as shown

• Disconnect power before servicing to avoid shock or damage
• Inspect connectors and mating components for damage or corrosion before installation
• Secure harness away from sharp edges and moving parts; follow OEM routing and fastening points

Front right gas tube assembly for cooktop burners. Connects gas supply to the burner orifice. Replace if cracked, damaged, or leaking gas.

This is a replacement protective shield designed to guard internal appliance components from heat, debris and contact damage. It helps maintain safe operation and prevents nearby parts from overheating or becoming contaminated. What it does:

• Protects sensitive components from heat and debris
• Helps maintain correct airflow and component clearance to support reliable operation
• A damaged or missing shield can lead to overheating, component damage, unusual odors or intermittent function
• Restores proper protection after corrosion, warping or physical damage

• Turn off power and, if applicable, gas supply before beginning work
• Handle carefully to avoid sharp edges; use appropriate gloves
• Confirm correct orientation and secure mounting to factory attachment points; do not force into place

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.
