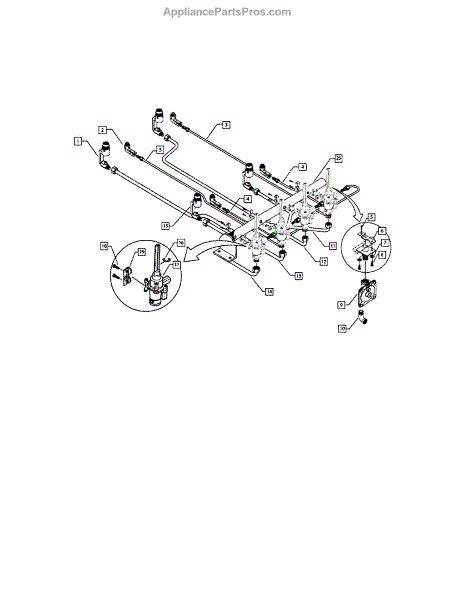

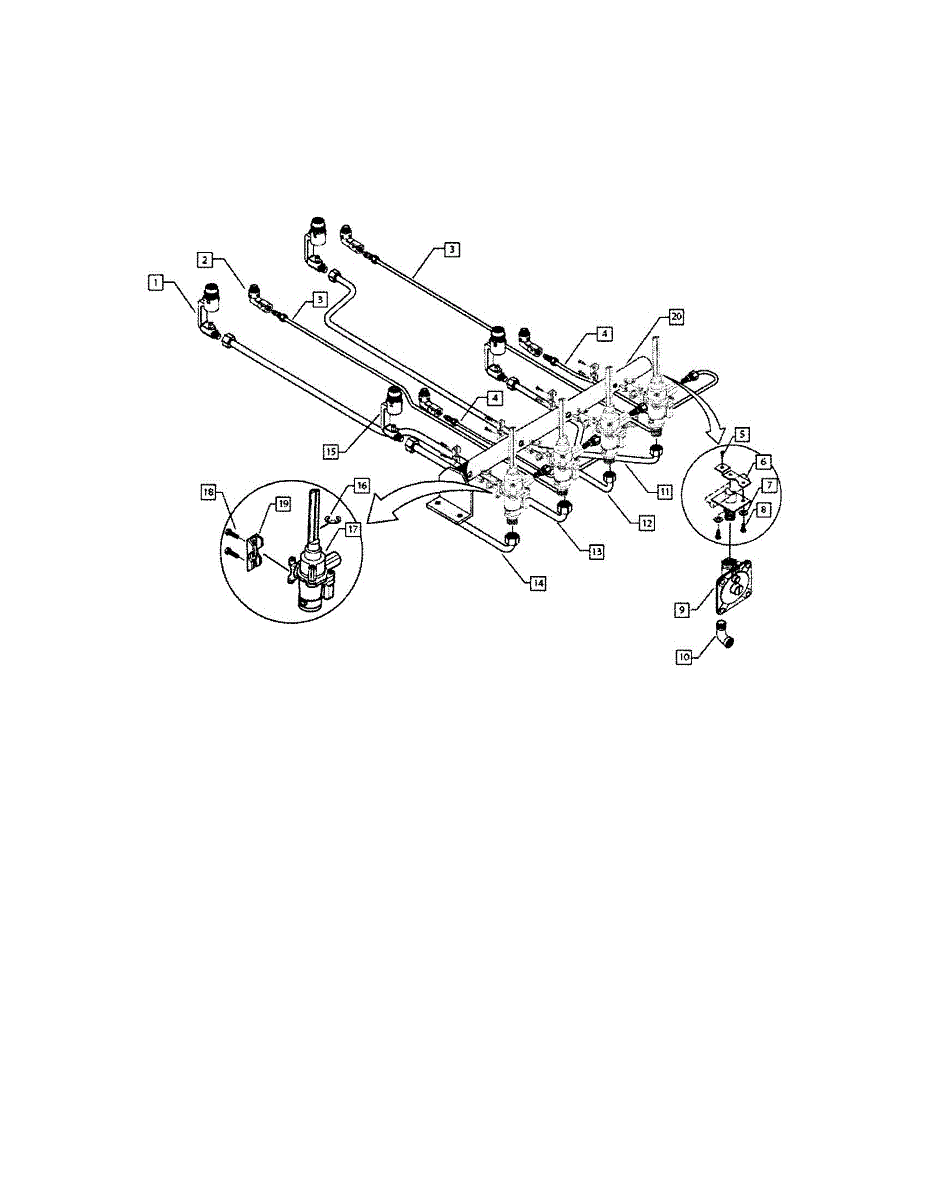

Parts for Dcs CTD-304-70694: Gas Train Parts

The Jet Holder is an OEM part for Fisher & Paykel gas ranges. It positions the gas jets that fuel the burner flames. This allows gas to be distributed evenly across the burner surface. This even dispersion of gas supports consistent temperatures.

Over continual heating cycles, residual food materials on the jet holder can accumulate and disrupt gas flow. This can cause blocked or unevenly releasing jets.

Symptoms of a problematic gas burner jet holder include:

• Flames that waver, fluctuate or appear weak
• Hot and cold spots on the burner grate
• Foods cooking too quickly in some areas and not in others
• Residual buildup or grime evident around the burner area

This jet holder secures a dishwasher spray jet in place to direct wash water for proper cleaning coverage. Replacing a damaged holder restores spray alignment and helps improve wash performance. What it does:

• Secures and positions a spray jet/nozzle so water sprays to the correct area
• Keeps the jet stable during spray arm rotation and dishwasher operation
• Worn or broken holders can cause weak or misdirected spray and uneven cleaning
• Used with dishwashing spray assembly components to maintain proper spray patterns

• One jet holder D

• Turn off power and water to the appliance before inspecting or replacing parts
• Access may require removing the lower spray arm or tub panels; follow OEM service instructions
• Inspect surrounding spray arm and seals for wear while replacing the holder
• Use only intended replacement parts to ensure correct fit and function

This replacement main tube installs in the left-front position to restore proper routing of fluid and prevent leaks. Use it to replace damaged, cracked, or worn tubing that can cause water loss or reduced appliance performance. What it does

• Routes fluid to the left-front circuit so the appliance can deliver/recirculate water where needed
• Restores a sealed path to prevent drips, pooling, and internal water damage
• Helps stop common symptoms like visible leaks, low water flow to the left front area, or intermittent operation related to fluid loss
• Provides an OEM-fit replacement to maintain original routing and connection points

What's included

• One tube main (left front) as shown

Install notes

• Disconnect power and shut off water supply before attempting service
• Inspect adjacent hoses, clamps, and seals; replace any damaged components to ensure a leak-free repair
• Use appropriate tools and take care not to kink or over-bend the tube during installation

Weak or uneven flame on your cooktop? This burner tube channels gas from the valve to the burner, restoring proper flame delivery and heat distribution.

Restores proper gas flow to two burners when experiencing uneven flames or one burner not igniting. Direct replacement for worn or leaking valves.
