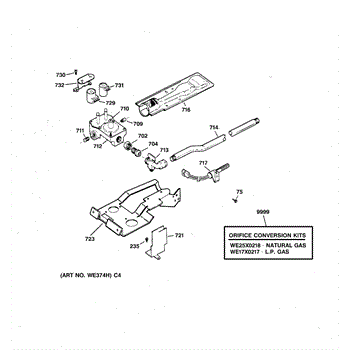

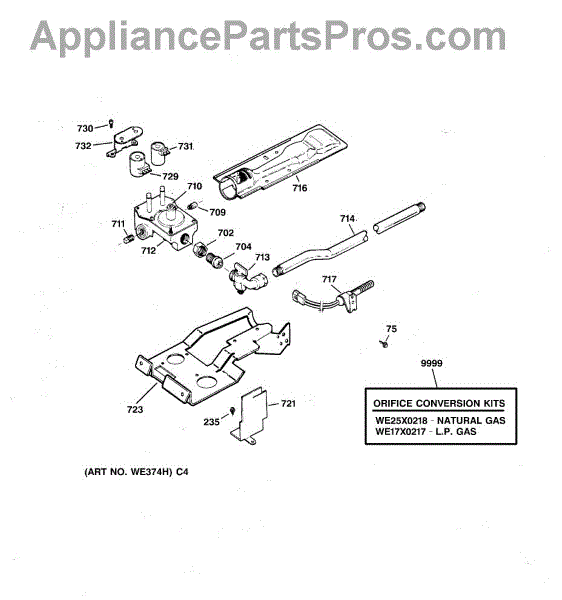

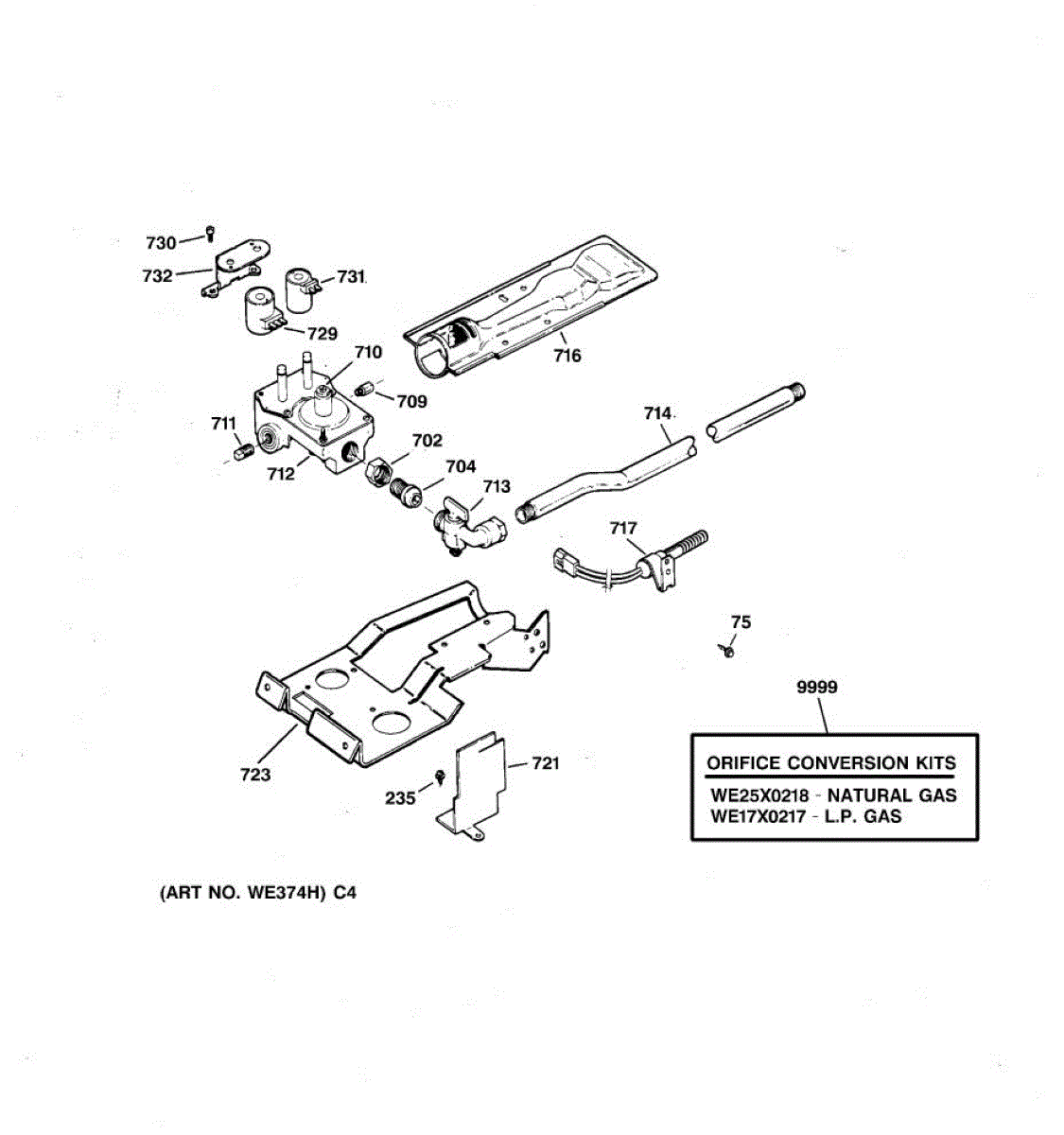

Parts for Ge DPSE592GA2AA: 05 - Gas Valve & Burner Assembly Parts

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

Replacement mounting screw for dryer panels, brackets, and components. Needed when screws are missing, stripped, or damaged during repairs or disassembly.

Meters gas flow to the dryer burner. Replace if damaged, clogged, or when converting between natural gas and LP. Installs at the burner assembly.

This is a safety device installed in the gas supply line of a gas dryer that restricts gas flow in the event of a leak or line disconnection. It helps prevent dangerous gas accumulation by limiting the amount of gas that can escape. Replace the leak limiter if your dryer has difficulty igniting, produces a weak flame, or if a gas technician identifies it as faulty during a safety inspection.

Dryer won't heat or you smell gas? The gas valve controls fuel delivery to the burner. Common fix for heating failures and gas leaks. Moderate DIY repair.

This valve elbow redirects the appliance's water line to the inlet valve, providing a secure 90° connection to help prevent kinks and ensure consistent water flow. Simple, compact replacement for a worn or damaged elbow. What it does

• Redirects the water supply line to the appliance inlet valve for a neat, low-profile connection
• Helps prevent kinking or strain at the inlet connection that can lead to leaks
• Restores proper water routing when the original elbow is cracked, broken, or leaking
• Resolves symptoms such as visible leaks at the valve connection or reduced/disrupted water flow to dispensers or ice makers

• Turn off water supply and unplug the appliance before beginning work
• Drain residual water from the line before removing the old elbow to minimize spills
• Inspect the inlet fittings and water line for damage; replace any worn tubing or gaskets
• Use appropriate tools and replacement gaskets; hand-tighten fittings and check for leaks after restoring water

Fix a dryer that won't heat or cycles but doesn't ignite with this gas burner assembly. Restores consistent flame when the original is corroded or clogged.

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A dual coil gas valve controls the flow of gas to your appliance's burners using two electromagnetic coils to open and close the valve. It regulates gas delivery to maintain safe, consistent flame operation. Replace this part if your burner won't light, gas flow won't shut off, or you notice uneven flames or a gas smell during operation.

Hex washer head screw for refrigerators, freezers, and other appliances. Replaces lost, stripped, or damaged screws during repairs or panel assembly.

The gas valve solenoid controls gas flow to the dryer's burner assembly for heating during drying cycles. Located near the gas valve, replace it when the dryer won't heat, heats intermittently, or won't ignite properly.

Converting your dryer from LP propane to natural gas? This conversion kit includes the orifice and components needed for a quick, straightforward swap.

Converting your dryer from natural gas to propane? This LP conversion kit includes orifices and instructions. DIY-friendly in under an hour.
