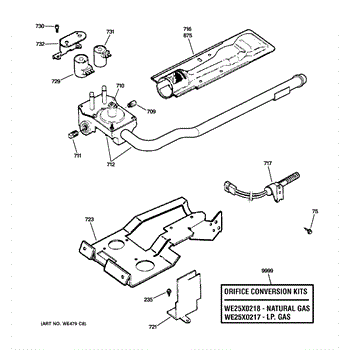

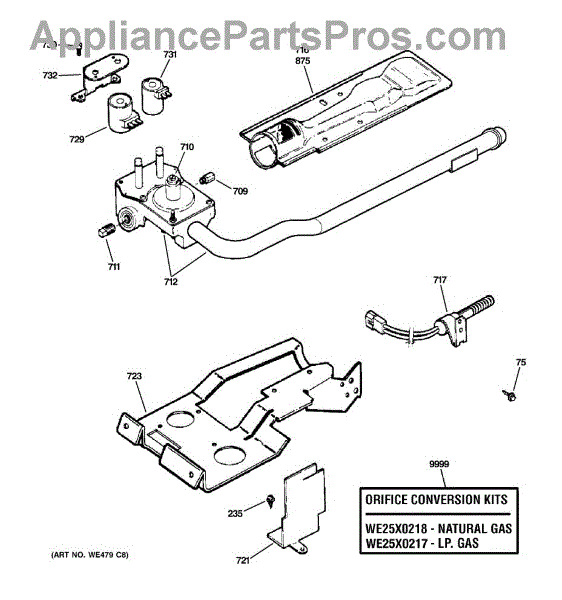

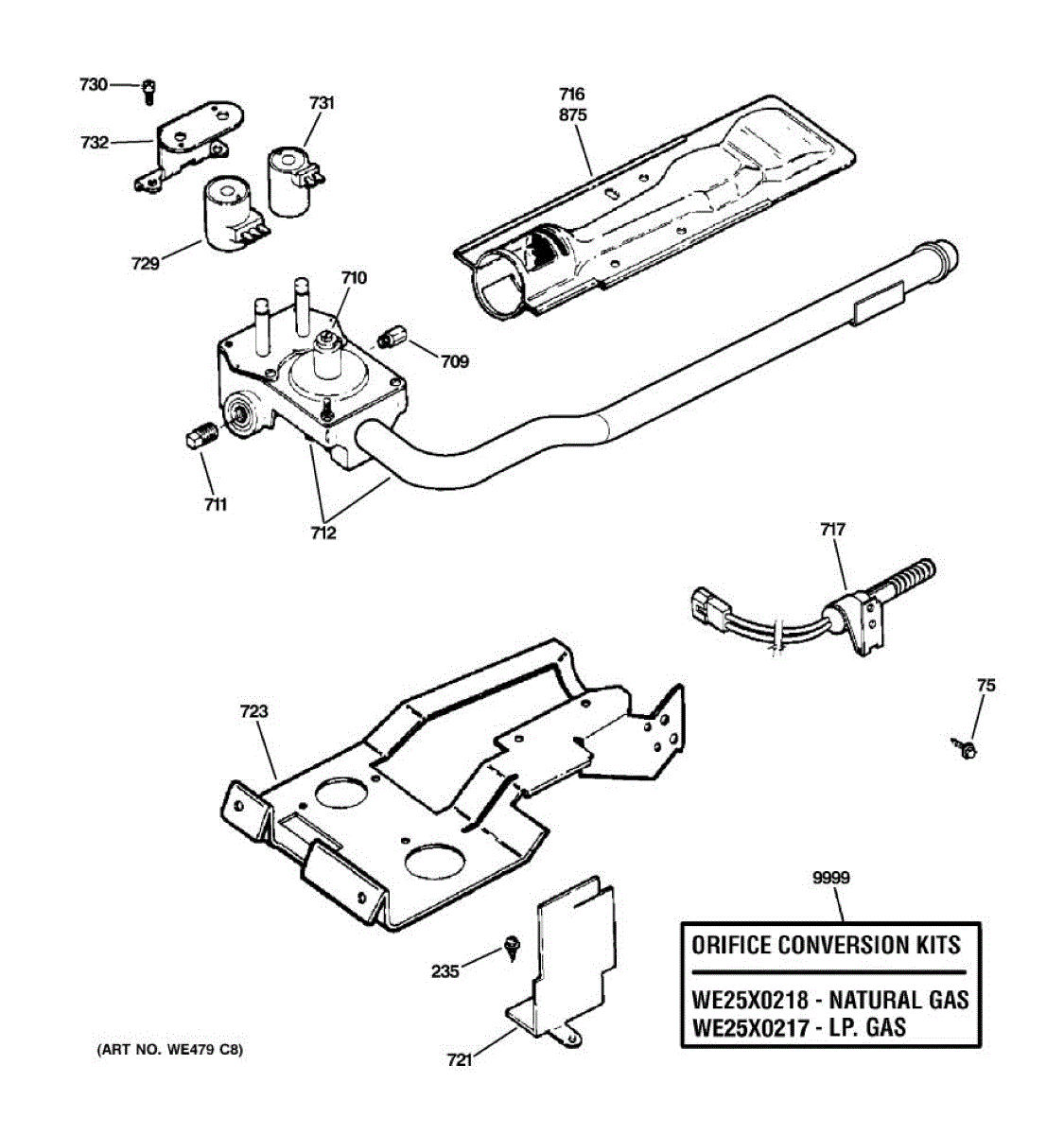

Parts for Ge DPSE810GG4WT: 05 - Gas Valve & Burner Assembly Parts

This replacement part is a screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This screw is compatible with many different areas of the appliance. Screws are generally used for keeping parts of the machinery secure and in place during use. It is possible that screws can become loose over time and need to be replaced after years of normal wear and tear.A new screw might be needed if the user notices parts of the appliances are becoming loose or are even falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. The repair for this part is simple. Remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.This screw is sold individually and is a genuine OEM replacement part sourced from the manufacturer.

Package of 12

This orifice meters gas flow to a single burner, restoring proper flame size and stable heating for gas ranges and ovens. Replacing a damaged or clogged orifice helps improve ignition and consistent burner performance. What it does:

• Controls the amount of gas delivered to the burner for correct flame height and heat output
• Helps resolve weak or low flames and uneven heating when the orifice is clogged or worn
• Supports reliable ignition by maintaining proper gas flow to the burner
• Works as the precise gas port that matches the cooktop/oven's burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate tools to remove burner components; take care not to damage threads or fittings
• After installation, check all connections for leaks with a soap solution or approved leak detector

This gas valve and pipe assembly controls and routes natural gas from the appliance inlet to the burner manifold, restoring proper fuel flow for ignition and stable burner operation. Designed as a direct-replacement service part. What it does

• Regulates and directs gas flow from the inlet to the oven/range burners.
• Enables proper ignition and stable flame for baking and broiling cycles.
• Works with the appliance's existing manifold and burner orifices to maintain correct gas delivery.

• Turn off gas supply and disconnect power before servicing; follow all safety procedures.
• After installation, check all fittings for leaks with an approved gas leak test (do not use an open flame).
• Replace only with the exact part specified for your appliance; inspect connections and gaskets and tighten to manufacturer torque specs.

This burner assembly is the combustion head for GE gas dryers. It mixes gas and air and directs a stable flame into the heater housing, restoring consistent heat when the original burner is corroded, warped, or clogged.

• Directs the gas flame into the heat chamber for proper drying temperatures
• Works with the igniter, flame sensor, and gas valve to produce heat
• Typical failure symptoms: no heat or intermittent heat, long dry times, burner lights then goes out, unstable/yellow flame
• Physical issues can include rust, warping, or blocked burner ports

• Disconnect power and shut off the gas supply; allow the dryer to cool completely
• Note position of the igniter and flame sensor relative to the burner port; realign during reassembly
• Transfer any reusable fittings from the original burner as needed and verify orifice/fuel type match your installation
• After reconnecting gas, perform a leak check with a non-corrosive soapy water solution before restoring power

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dual Coil is an OEM part for GE dryers. This is often referred to as the “M” coil. If you need to replace both the main coil and dual coil, it is recommended to order the kit 279834, which includes both coils for a comprehensive replacement.

Causes of a faulty dual coil can include wear and tear over time, electrical component failure, or damage due to overheating or excessive usage. These factors can result in insufficient heat production, inconsistent drying, or no heat at all.

Symptoms of a bad dual coil may include:

• Insufficient heat or no heat during the drying cycle
• Inconsistent drying results
• Extended drying times

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Specs: 8-32 ca hxw 1/2

The Main Coil is an OEM part for GE dryers. It is a crucial component of the gas valve assembly, responsible for opening the gas valve to allow gas flow to the burner, enabling the dryer to produce heat.

Causes of a bad main coil can include electrical faults such as short circuits or open circuits within the coil, wear and tear from prolonged use, or damage due to overheating. Over time, the coil's ability to control the gas flow can diminish, affecting the dryer's performance.

Symptoms of a bad main coil include:

• The dryer not heating up
• Intermittent heating during a drying cycle
• The dryer taking longer than usual to dry clothes
• A clicking sound without the ignition of the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small mounting screw secures panels and trim on compatible GE appliances, restoring a solid, vibration-free fit. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned and secure. What it does:

• Fastens panels, trim, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose or rattling parts
• Restores secure attachment when threads are stripped or worn
• Helps maintain proper alignment to prevent noise and component wear

• Use the correct screwdriver size to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power or move the appliance to a safe position when accessing internal panels
• Consider a replacement clip or insert as recommended by the manufacturer

Liquid propane to natural gas

The LP Conversion Kit is an OEM part for GE dryers. It is designed to convert a natural gas dryer to liquid propane (LP) gas. This conversion kit ensures that the dryer operates efficiently and safely with LP gas, which requires different pressure settings and orifices than natural gas.

Causes of a bad LP conversion kit can include improper installation, damage to the kit components, or compatibility issues with the dryer model.

Symptoms of a bad LP conversion kit include:

• Dryer not heating properly
• Unusual gas odors
• Inconsistent drying performance
• Burner flame issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For LP to natural gas conversion kit, order part number WE25X218.
