Best Seller
Manufacturer Part

Ge WR62X26536 Armature Kit (Dispenser Solenoid) OEM Part

Manufacturer's Part Number: WR62X26536
Genuine Ge part
Appliance Compatibility Tool
$57.32
IN STOCK - SHIPS MONDAY

Secure and trusted checkout with

IN STOCK Less than 100 left
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Most orders delivered in 1-2 business days

Call us 1-877-477-7278
Need Help? Chat with a Pro

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WR62X26536 replaces AP6024848, WR17X1063, WR17X1064, WR17X1066, WR17X12742, WR2X4257, WR2X4258, WR2X4259, 4468586, PS11737122, WR02X4257, WR02X4258, WR02X4259, WR17X12811.

Description

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.
  • Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
  • Helps maintain a proper seal to limit frost and moisture around the dispenser
  • Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
  • Wear or sticking of the armature/spring can hinder movement and affect dispenser operation
What's included: 1 armature kit Installation notes:
  • Unplug the refrigerator and shut off water to the dispenser before servicing
  • Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
  • Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
  • Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Frequently Bought Together

This item

Product photo

Ge WR62X26536 Armature Kit (Dispenser Solenoid) OEM Part

Total price:

$116.44

Have a Repair Question? AppliancePartsPros has your Answer!

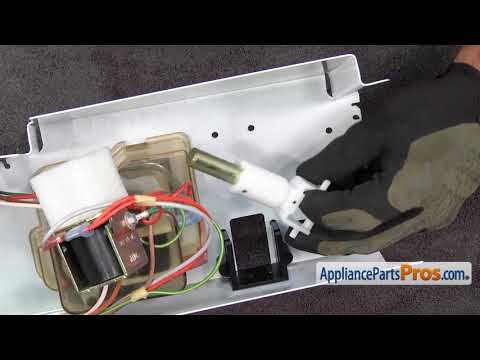

How to Replace Ge WR62X26536 Armature Kit (Dispenser Solenoid) OEM Part #WR62X26536

Step by step instructions on how to replace a Ge WR62X26536 Armature Kit (Dispenser Solenoid) OEM Part #WR62X26536. Note: This video is intended to give you the general idea of the part replacement procedure. Your appliance may differ depending on the manufacturer and model.

Do-It-Yourself Stories from Customers like You

Total Satisfaction Rating
5.0
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Do-It-Yourself Rating
Easy
Less than 15 minutes

Have questions? Ask our pros!

Contact us in a way that is convenient for you

Call us 1-877-477-7278
Need Help? Chat with a Pro
Or ask a question by filling in the form

Share your thoughts with other customers

Ask a Question

Cross Reference Information

Ge WR62X26536 Armature Kit (Dispenser Solenoid) OEM Part

Part Number:
OEM18074553
Manufacturer's Part Number:
WR62X26536

Fits 9,630 models

ManufacturerModel NumberDescription
General ElectricGSS20IEMBWWRefrigerator
General ElectricHSS25GFPAWWRefrigerator
General ElectricGSL25JFPABSRefrigerator
General ElectricHSS25IFMDWWRefrigerator
General ElectricGSH25JSTASSRefrigerator
General ElectricHSS25GFPJWWRefrigerator
General ElectricGSS25JFMBWWRefrigerator
General ElectricGSS25JFMCWWRefrigerator
General ElectricGSS20IEMDWWRefrigerator
General ElectricGSS25JFMDWWRefrigerator
General ElectricGSH25JSRFSSRefrigerator
General ElectricPSS26SGPASSRefrigerator
General ElectricGSL25JFTABSRefrigerator
General ElectricPSS25SGNABSRefrigerator
General ElectricTFX20JRBKWWRefrigerator
General ElectricHSS25GFPHWWRefrigerator
General ElectricHSS25IFMBWWRefrigerator
General ElectricTFH24PRSMWWRefrigerator
General ElectricGSS22JFMCWWRefrigerator
General ElectricGSS25SGMDBSRefrigerator
General ElectricGSL25IFRFBSRefrigerator
General ElectricGSL25JFPEBSRefrigerator
General ElectricHSS25IFMCWWRefrigerator
General ElectricTFX26KPDAWWRefrigerator
General ElectricGSS25SGMCBSRefrigerator
General ElectricGSS20IEPAWWRefrigerator
General ElectricHSM25GFTASARefrigerator
General ElectricHSS25GFTAWWRefrigerator
General ElectricGSS20IEPHWWRefrigerator
General ElectricTFX26ZPDAWWRefrigerator
General ElectricGSS22SGMCBSRefrigerator
General ElectricGSS22SGMDBSRefrigerator
General ElectricPSS25MGNAWWRefrigerator
General ElectricGSH25SGPASSRefrigerator
General ElectricGSL25JFPHBSRefrigerator
General ElectricGSL25JFPDBSRefrigerator
General ElectricTPS24BPDABSRefrigerator
General ElectricPSS27SGNABSRefrigerator
General ElectricTFX26KRDAWWRefrigerator
General ElectricGSH25SGPCSSRefrigerator
General ElectricGSS20IEMBCCRefrigerator
General ElectricPSS26SGRBSSRefrigerator
General ElectricTFX25JRYDWWRefrigerator
General ElectricGSL22JFTABSRefrigerator
General ElectricHSS25GFPDWWRefrigerator
General ElectricTFH24PRSBWWRefrigerator
General ElectricGSS20IETAWWRefrigerator
General ElectricHSS25GFPEWWRefrigerator
General ElectricGSS22WGMCWWRefrigerator
General ElectricTFH22PRSMWWRefrigerator
