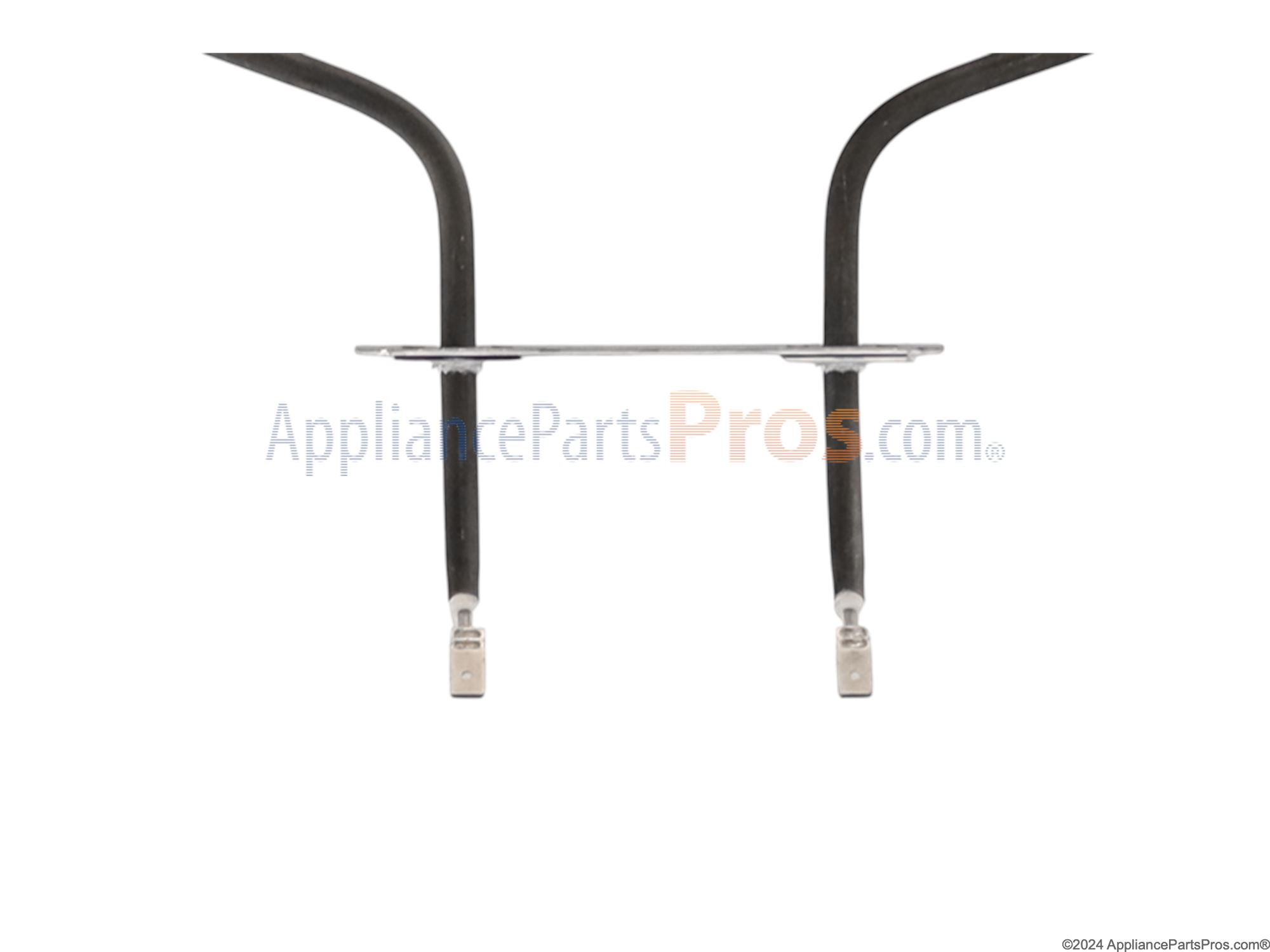

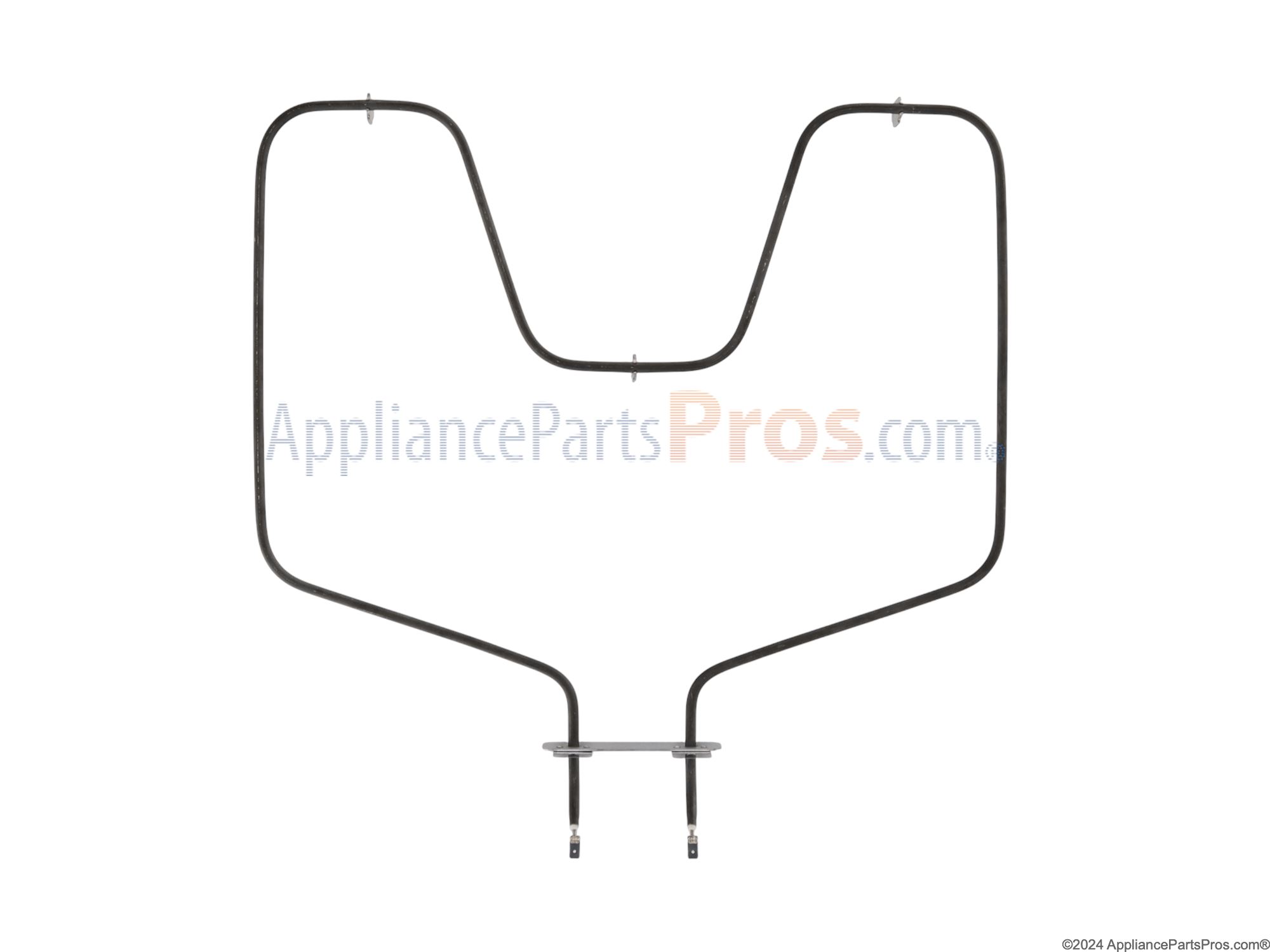

Ge WB30X46987 Bake Element OEM Part

Visually inspected bottom heating element and found that it had failed. There was a @2" gap of missing element and burned debris below the damaged area. This was discovered 3 days before Christmas. 1. Open under oven storage drawer and look on the left inside frame frame for Model ID and Serial No. 2. Search on AppliancePartsPro.com for bottom heating element. 3. Ordered part on Sunday evening before Wednedsay Christmas - with expedited next day delivery. 4. Received order confirmation and shipping confirmation with Tuesday mid-day delivery confirmation. To replace this part. 1. Open Circuit Breaker for oven and verify oven power removed by confirming no lights in the oven control display 2. Open oven door and remove the oven racks. 3. Remove and retain 2- 1/4 " Hex top machine screws that hold the heating element in place. 4. Carefully pull the failed heating element towards the open door while tilting the element up. NOTE: There is insulation material in the void between the oven wall and the frame body of the oven. The are two power leads that attach to the heating element that will need to be pulled through the insullation so the old part can be disconnected. 5. Pull the power leads a couple of inches into the oven and disconnect from the failed part. NOTE Prior to releasing the power lead ensure that the lead does not want to pull back throught the insulation back into the void behind the rear oven wall. 6. Attach the wire leads to the replacement heating element. 7. insert heating element into place in the oven wall by tilting front of element up and feeding the wires and the element connection ends through the element mounting holes until the heating element mounting plate is flush against the oven wall. 8. Secure new element in place with the 2 - 1/4" hex machine screws. 9. Close circuti breakers for the oven in home circuit breaker panel 10. Verify oven in a power-on condition by checking that the oven control panel lights operating - Time of day should be displayed - Reset time. 11. TEST - set the oven to BAKE - Set temperature as desired (350) and check that the heating element is working. NOTE: As the element heats up the a small amount of smoke may be seen during the intital operation. The heating element shoulod begin glowing cherry red after 60-90 seconds. Saved our Christmas!!

I order the part and when it came I took the old part out and replaced it with the new one. it was a very easy fix...

Repair was easy, 2 screws 10 minutes. Parts were ordered Monday night and installed wendsday

Ordered new part, swap out old for new element

Heating element was easy to replace unscrewing the two screws and unplugging the connectors from the broken element and then reversing the process to put in the new element. The gasket on the other hand required me to dismantle the door. Remove the old gasket and replaced the new gasket and then putting the door together again. This took some time and there were no instructions for the job so went by the seat of my pants. The gasket fits well and the oven has more consistent heat.
