Ge WD01X10569 Dishwasher Door Cable And Pulley Assembly OEM Part

My first thought was to take the dishwasher to the dump when I saw the pack rats ate the wiring while it was in storage. However, it was only a couple years old so just out of curiosity I looked at the appliance parts pros website and was pleasantly surprised that I could replace every wiring harness on my GE dishwasher for under $100. That is a lot of wire. The process to replace the wiring was nearly effortless. The new harnesses were identical to the old so all I had to do was find the 2 end points in each case to remove the old and put in the new. The one wire I didn't replace was to the water pump since you had to replace the entire pump for that. Instead I soldered it. The dishwasher works great now. I don't submit a lot of reviews, but I really wanted to share how incredibly helpful the website and how great it was that they had all the parts I needed in stock and delivered very quickly.

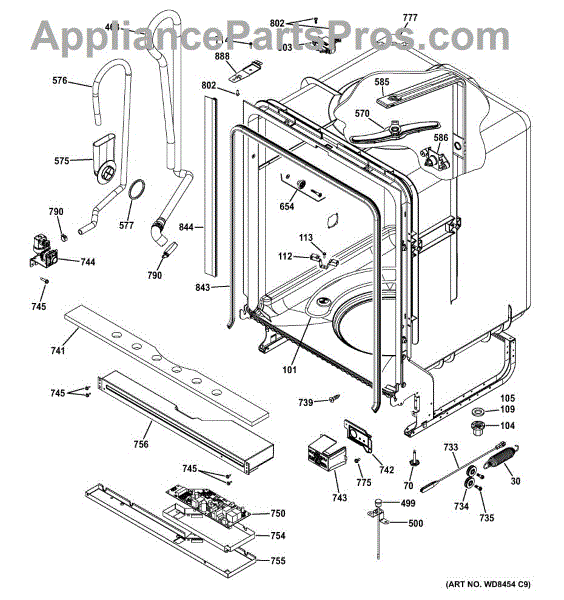

Once I located the parts involved in the factory exploded drawing I ordered a cable and spring. Then, when I had the dishwasher pulled out I saw that both cables had simply slipped off of their pulleys and that the door needed to be re-set properly into its drop-down metal studs. So now I have a spare set for any problems in the future! Very easy - two screws under the counter and pull forward. Shipping was quick and easy. First time customer.

Ordered cable pully

Cut off the insulation and installed one cable assembly. Easy fix.

I was able to slide the washer out of the cabinet to access the the cable. I installed the end of the cable on the spring the put the other end of the cable onto the door. The parts fit perfectly and the project was accomplished in a short time.
