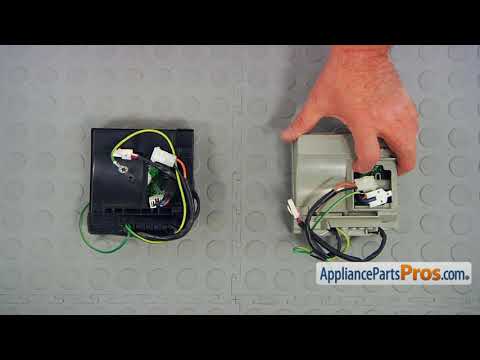

Ge WR87X29409 Compressor Inverter Board OEM Part

Took out the old part and replaced it with the new part. Now all is working. Thank you so much.

After an appliance repair company wanted to charge me $1100 and told me it would take three weeks to get the part, I watched a you tube video of how to fix it (inverter) and ordered the part from Appliancepartpros. I got the part the next day, followed the steps in the video and fixed it myself. I was so relieved not to have to buy a new refrigerator because I really like the one I have. It was tricky to get the old part out and new one in because there were copper tubes blocking the acces to that spot but I got it done with a few expletives about bad engineering design!

I could hear the fans running but not the compressor. I checked for AC power (used a Digital voltmeter) to the compressor invertor and for a DC control signal, both were present. I also checked the compressor motor windings for correct resistance and that it was not shorted to the ground, all looked good. I ordered a replacement compressor inverter, installed the replacement, and tested it for compressor operation. All checked out good, I now have a working refrigerator again. I would like to note that the shipping response from AppliancePartsPros.com is great! Same-day shipping just means one less day without an appliance!

I replaced the Inverter Board.

Replaced the compressor inverter- after testing the compressor with a multimeter and confirming it was good. Compressor should be warm or slightly hot mine was cold. Replaced Part #: AP6332922 (WR87X29409)
