Ge WR09X10104 Temperature Control Thermostat (Refrigerator) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others. See all items in Refrigerator Temperature Control, Cold Control.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WR09X10104 replaces AP3203796, 1091665, AH963862, EA963862, PS963862.

Description

This refrigerator temperature control thermostat regulates cooling by sensing the compartment temperature and switching the compressor on and off. Replacing a worn control restores consistent temperatures and proper cooling cycles. What it does

• Senses fresh food compartment temperature and responds to your dial setting
• Opens/closes electrical contacts to start and stop the cooling system
• Maintains target temperature within the control's range
• Common symptoms: refrigerator too warm or too cold, runs constantly, won't start cooling, temperature doesn't change with the knob

What's included

• Includes 1 temperature control thermostat

Install notes

• Disconnect power before servicing; wear appropriate gloves

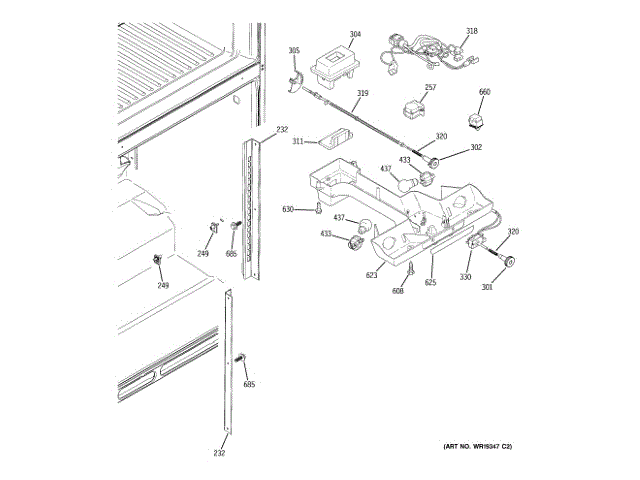

• Access the control in the fresh food control housing; remove the cover and knob as needed
• Note wire positions; transfer wires and any bracket exactly as found
• Carefully route the sensing tube in the original path without kinking; set to a mid setting and allow 24 hours for temperatures to stabilize
