Ge WB44T10086 Convection Element Assembly (Rear Oven) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WB44T10086 replaces AP4358533, 1474619, AH2321875, EA2321875, PS2321875.

Description

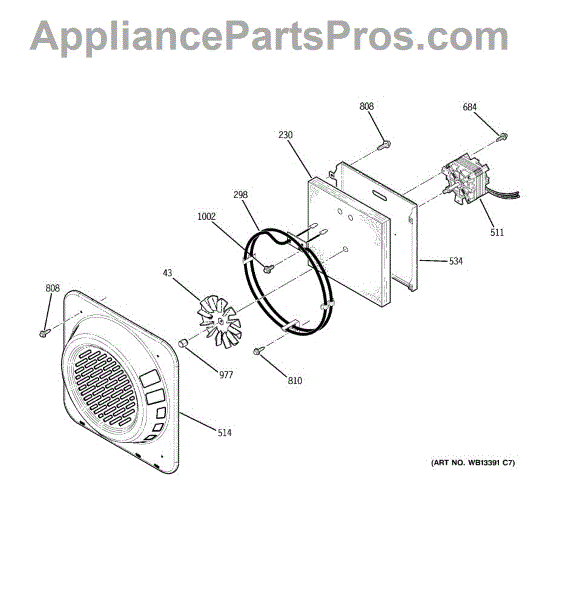

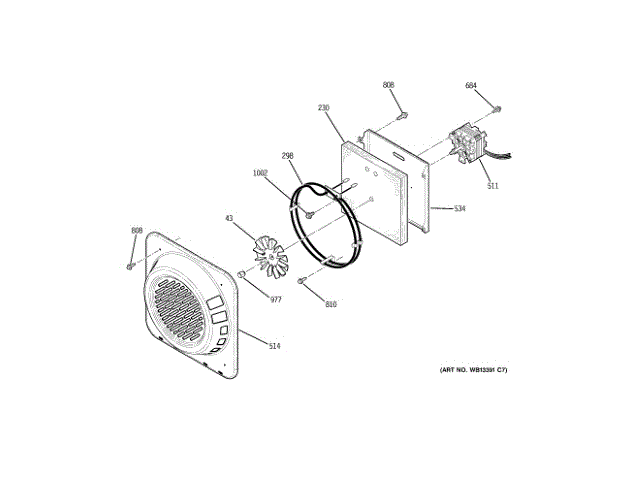

This convection element assembly is the heating ring located behind the rear panel of the oven. It supplies the heat for convection bake/roast, helping deliver even, consistent results when using the convection feature.

• Provides heat around the convection fan to maintain uniform oven temperature in convection modes
• Failure may cause little/no heat in convection, uneven baking/roasting, or extended preheat times
• Replace if the element is open (no continuity), blistered, or visibly damaged
• Direct-fit replacement designed to match original connections and mounting

What's included: One convection element assembly

• Disconnect power at the breaker/fuse and allow the oven to cool completely before servicing
• Remove oven racks and rear interior panel to access the element
• Support and label wires; connect firmly to the element terminals to avoid loose connections
• Avoid bending the element; secure with original hardware and check continuity before reassembly
