Ge WB07X11015 Upper Vent Grille Assembly (Microwave) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others. See all items in Microwave Grille.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WB07X11015 replaces AP3993710, 1262468, PS1480868.

Description

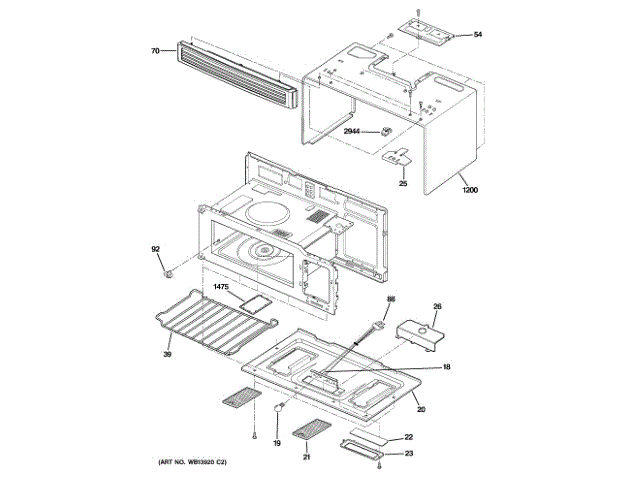

This upper vent grille assembly replaces the front top grille on your microwave. It directs airflow through the louvers and restores a secure, finished look while helping shield the filter area and internal components from accidental contact.

• Channels exhaust or recirculating air through the top-front opening
• Shields the filter compartment and cabinet edge from debris and touch
• Provides a finished appearance; helps minimize vibration when properly secured
• Replace if cracked, warped, mounting tabs are broken, or the grille won't stay in place

What's included: 1 vent grille assembly Install notes:

• Disconnect power before servicing; support the microwave if needed
• Remove the top screws, slide the grille to release the tabs, then lift off; install the new grille in reverse order
• Do not overtighten screws into plastic
• The grille is fully seated and clear of the door swing
