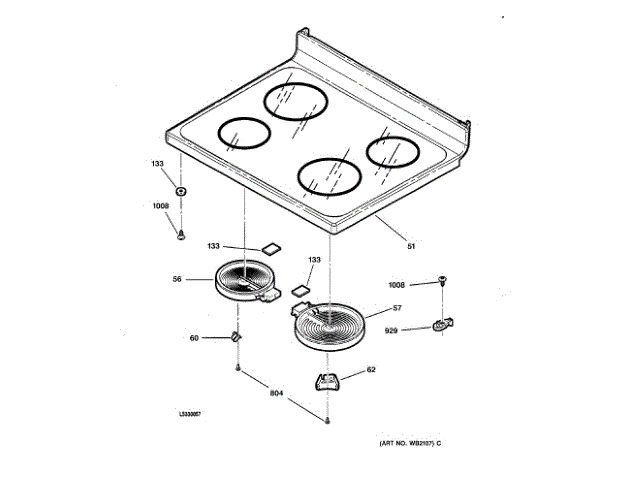

Duane R Fort Myers , FL March 14, 2014 Appliance: Model JBP62BDY1WH Non-working haliant element. Unplug range. Open oven door to gain access to the cook top lock-down screws, located under the front edge of the cook top. Tip the cook top up and carefully remove it by pulling forward. Set aside in a safe place. Remove old, burned-out, element by removing the single lock tab, located on one of the three mounting posts, then lift up. Leave the wiring attached. Flip the element over and remove the three mounting tabs, making note of their numbered locations. Transfer the mounting tabs to the new element using the same numbered locations. Position new element onto the mounting posts and re-attach the lock tab. Transfer the wiring from the old element to the new one, attaching each connector to its corresponding blade pin out on the connection block (for IDENTICAL replacement part). Plug range back in and turn on burner to test new element. If all checks OK, replace the cook top in the opposite manner in which it was removed. In my case the new element's connection block was configured differently than the original, even though this was the factory-correct replacement. Initial testing of the new element did not work. A quick check of continuity across the pin outs of the connection block, using a multi meter, confirmed the new, proper wiring configuration. Switched the appropriate wire and re-tested. Success! Read More... 24 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers, Pliers
Delores A Ranger , TX November 18, 2014 My 8" burner was out on my cook stove I ordered my burner late Tuesday night and recieved it Thursday afternoon. The part matched exactly to the old part. I installed it according to the wiring instruction and looking at the old part wires. It worked great. Very pleased with the part and time frame for devivery. Will definetly use this company again!! Read More... 9 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Nut Drivers, Pliers, Screwdrivers

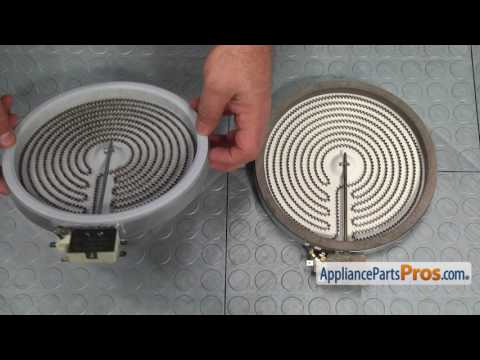

Charles S Warren , MI November 11, 2019 Elements burned out I watched a video on the site of how a repair was done. The video wasn't exactly for my stove but it provided me with some insight on how to go about the repair. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Screwdrivers
Richard W Indianapolis , IN February 16, 2025 One of our cooktop burners would only heat on high settings Looked up the part and watched the how to YouTube video on making the repair. I followed the instructions in the video and I fixed it by myself in about two hours. Read More... Do-It-Yourself Rating: Repair Time Estimate: 2+ hours Tools: Nut Drivers, Pliers, Screwdrivers
Robert M Port Charolette , FL February 05, 2016 Heating element burned out Ordered a new one, arrived in a timely manner, instulation went smoothly, work done in 15 min. Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Nut Drivers, Screwdrivers
