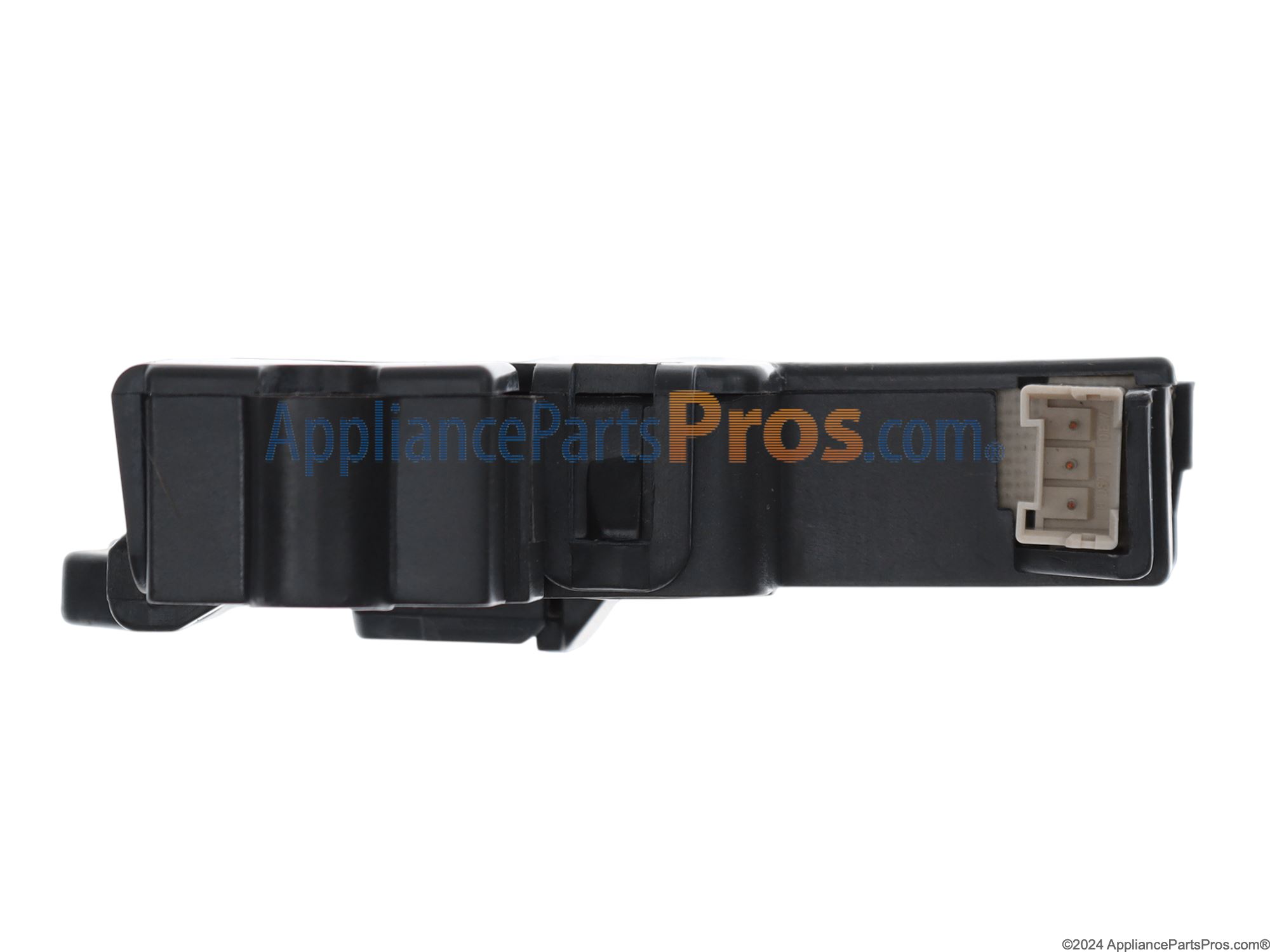

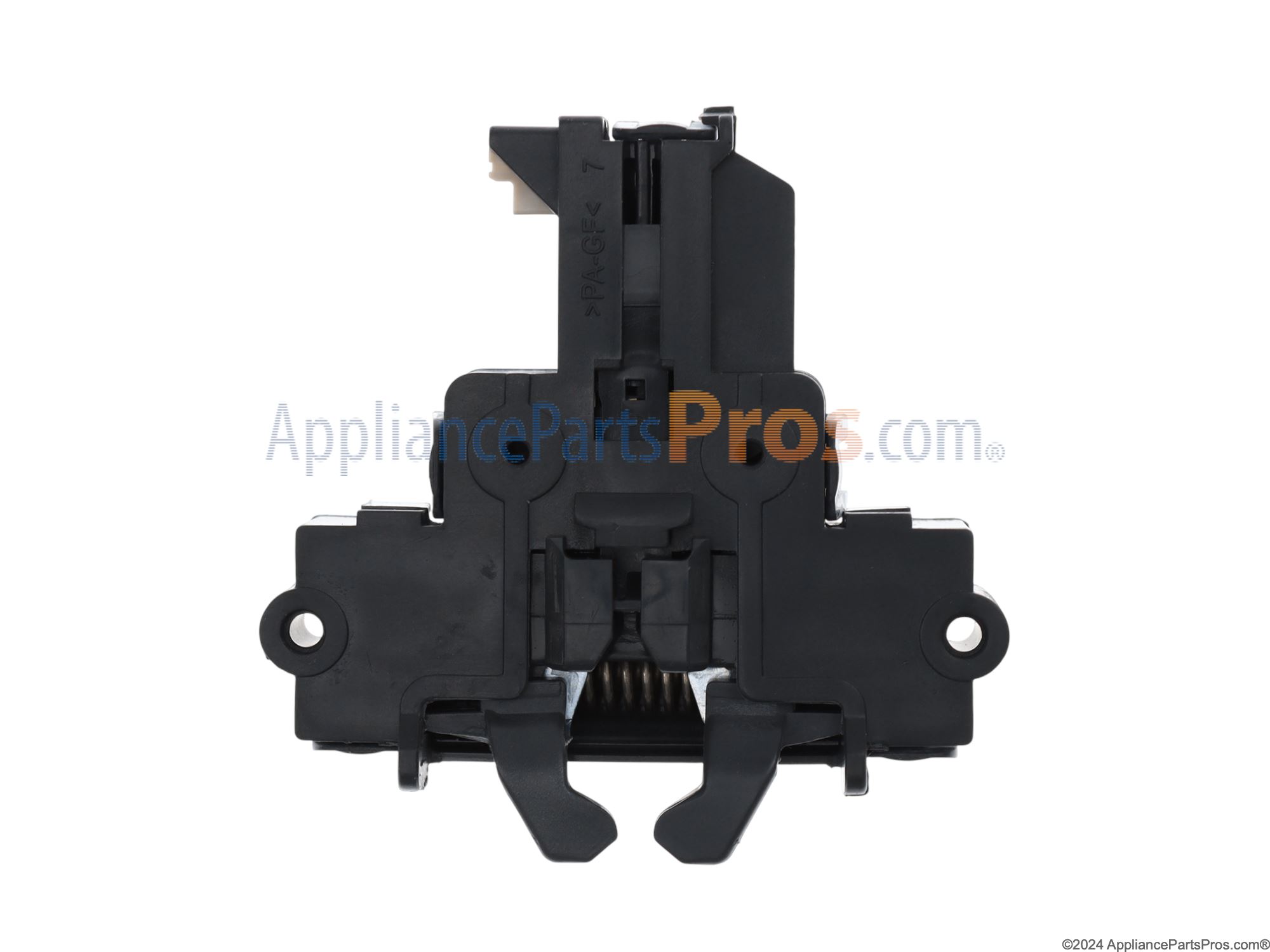

Ge WD21X10490 Dishwasher Door Latch Assembly OEM Part

I first did quite a bit of interaction with the AI chat and doing Google searches, as well as entering the diagnostic mode for the dishwasher. (NOTE: Retrieve the technical sheet stored underneath your dishwasher behind the front toe kick panel to learn all about diagnostics!) From this research, I determined three possible issues: (1) the door latch assembly might be malfunctioning, (2) the soap dish actuator might be malfunctioning, and/or (3) the main control board was faulty. The door latch and soap dish assemblies are connected to this review; the main control board was on a second order. A diagnostic check did not return any error codes (just a number, which indicates the control board software version). But, the issues were intermittent so I couldn't trust that there weren't any issues. So, I decided to go whole-hog and replace all three parts. Total cost with shipping was about $ -- still a lot less than a new dishwasher! All three replacements were fairly straight-forward; the soap dish was the most involved because the door had to be removed and disassembled to access the soap dish. Door removal with the spring hinges is a bit tricky. The AppliancePartsPros installation videos were all very helpful and spot-on correct and helped to show the necessary tricks. There is no such thing as a 15-minute repair -- count on any repair taking 1 hour per part. This repair took me just over 3 hours -- but I spent an extra hour replacing my hard-wired power to the dishwasher with an outlet located in the wall behind the dishwasher, and replacing my old solid copper water supply line with a longer flexible stainless steel water line. Both of these prevented me from being able to pull the dishwasher more than 3" out from under the counter -- so, now I can pull the dishwasher all the way out from under the counter easily if I need to without disconnecting it, and I can unplug the dishwasher to kill the power without having to shut off the circuit breaker. This will make it much easier to repair or replace the dishwasher in the future. Well worth the extra hour!! I have used AppliancePartsPros for over 10 years now because of the ease to find parts for all my appliances, their quick delivery, and (especially) their installation videos and technical support. Dishwashers are generally easy to repair and you can significantly extend their lifespans if you take on the repairs yourself.

After I double checked that the unit did have power to it, I concluded it was probably a switch or the User Interface Board. I found the parts on the AppliancePartsPros for the best price and delivery. After the parts were delivered two days later, it took me a couple hours to disassemble and re-assemble the door for the dishwasher and luckily everything seems to be working fine three days and three loads later. The only issue I had was with the User Interface board..... this is a generic replacement, and the instructions tell you to reset the "Personality" by positioning the sleeves over some pins on the board in the proper sequence. The instructions are not user friendly... Maybe if a seasoned repairman would know what to do right away, but as a DYI kind of guy, it was not very clear. If you read this, the various combinations are on the BACK of the sheet.

Ordered a control board and door latch first. Installed them and it was still dead. Then, ordered the user interface board. Installed the UI board and it the dishwasher works fine now.

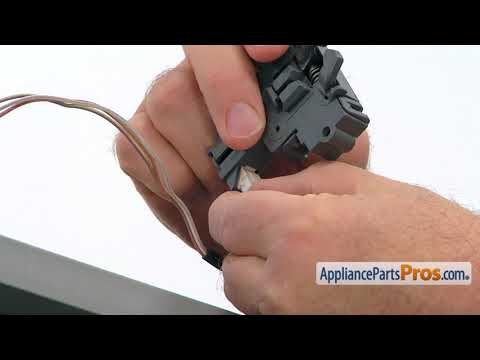

Based on our research, the dishwasher latch was one of the most common causes for our model of dishwasher malfunctioning. We purchased this replacement unit, and thanks to the help provided via videos and diagrams, my wife and I were able to very easily install the new latch. While this replacement did not totally fix our problem, it was part of it. Shipping on the part was very quick, I ordered it on Friday night, and the latch arrived Saturday morning.

The circuit board under the machine needed replacing. Pretty easy if you are willing to not force it in. Two screws, four all different plugs, two guide holes for the wiring. I bought a latch but did not need to install it.
