Ge WB02T10453 Cooktop Grate Support Stud (Composite), 1 OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others. See all items in Range / Cooktop / Oven Shaft Or Pin.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WB02T10453 replaces AP4423200, 1473144, AH2353323, EA2353323, PS2353323.

Description

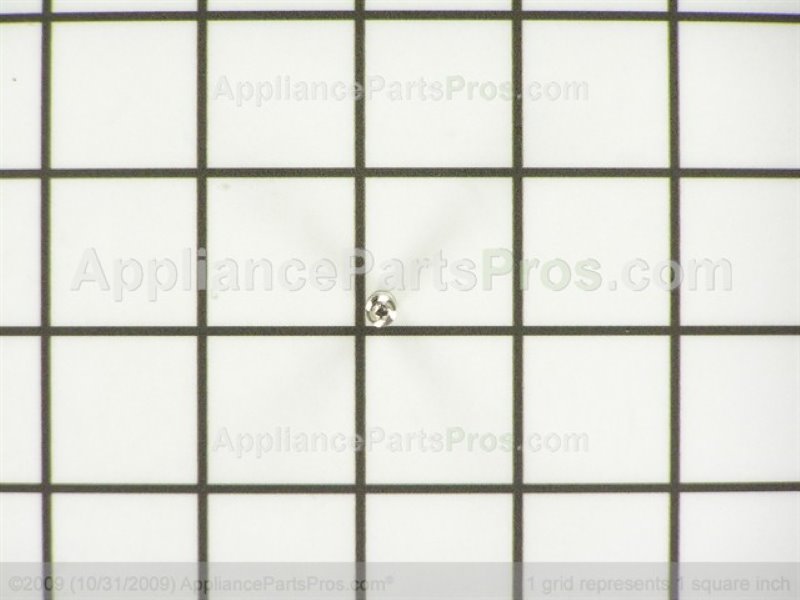

This composite support stud mounts on the cooktop to provide a stable resting point for the burner grate. It helps keep the grate level and protects the cooktop finish from metal-to-enamel contact.

• Supports and levels the burner grate at its contact point
• Helps protect the porcelain/enamel surface from scratches and chips
• Maintains proper grate alignment over the burner
• Typical symptoms of a failed/missing stud: wobbly or rocking grate, rattling, scuffing around grate landing points

What's included: One composite support stud Install notes:

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the grate and the damaged/missing stud; clean the contact area
• Install the new stud per your model's design and seat it fully without overtightening
• Reinstall the grate and confirm it sits flat and stable
