Ge WH16X10186 Transmission And Support Assembly (Washer) OEM Part

This is a stacked unit so it comes apart a little different. you DO NOT have to remove the dryer unit to remove the tub assembly.the top front cabinet brace is held on with 6 screws.remove this along with the suspension rods the tub assembly comes straight out the front of the machine. Do yourself a favor and take the whole assembly out of the machine before you disassemble the inner tub. I removed the drain pump before i took the tub out as a precaution. The worst part about this job was the inner tub was frozen to the transmission shaft. I tried everything, soaked it in penetrating oil for days, beat on it, heat from a torch careful not to melt anything, a jack between the trans shaft and a 2 by 4 wedged under the tub rim and then broke the 2 but not the tub. The only way to get this apart was to cut the center hub off the shaft. I used a 4 in angle grinder & cutoff wheel to make 4 cuts close to the center hub hammer n chisel its out, 2 more cuts on what's left and hammer n chisel it was off. This was glued on. The downside to this is you have to buy a whole new inner basket assembly. The hub is not sold by it self. $200-400.got 1 for $230.went back together easy n works great now. I hope this helps. GOOD LUCK.

I replaced the support assembly per the suggestion of the technician working at the time. If it weren't for the technician I might not have ordered the correct part.

I purchased the parts I thought I needed and found out I did not need to buy the washer, or seal. and not as the transmission came with these parts. I also purchased the spanner wrench TB123A I also needed the Agitator mounting bolt (Agitador WH01X10619 / AP5306325) as my rubber seal was destroyed when it was removed so I had to wait for it to come in to complete the job. As for the job, it did go fairly easy for me, but I am also a certified auto mechanic and a trained Jet engine mechanic. The problem I had was removing the basket assembly from the outer tub. After three days of penetrating fluid and a lot of beating on the transmission, it finally came loose. After cleaning all the old parts, the assembly went together easily. Make sure you get the spanner wrench and a large hammer to remove the nut, if you do not you will wish you did. Overall, this took me about 5 days due to the stuck tub and waiting for parts and cleaning old parts. I am sure it saved a lot of $$ compared to hiring someone to do the task. The washer is working great now............

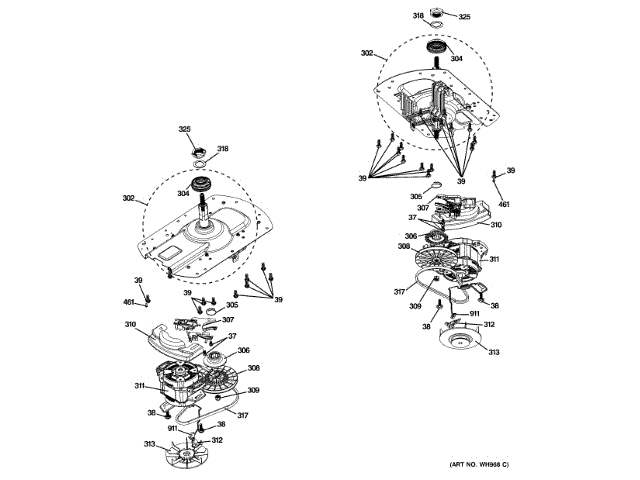

Ordered part and it was here the next day! The lookup was easy and the schematic was very helpful! Great service!!

Ordered the part early on Friday to have it show up late on Saturday. Great service. Part fit and is working very well.
